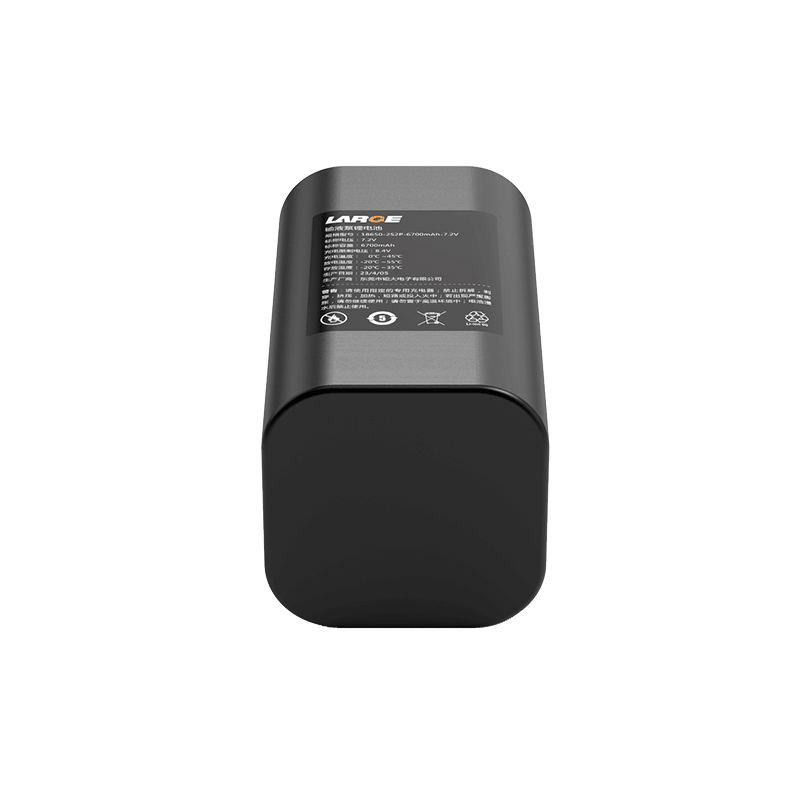

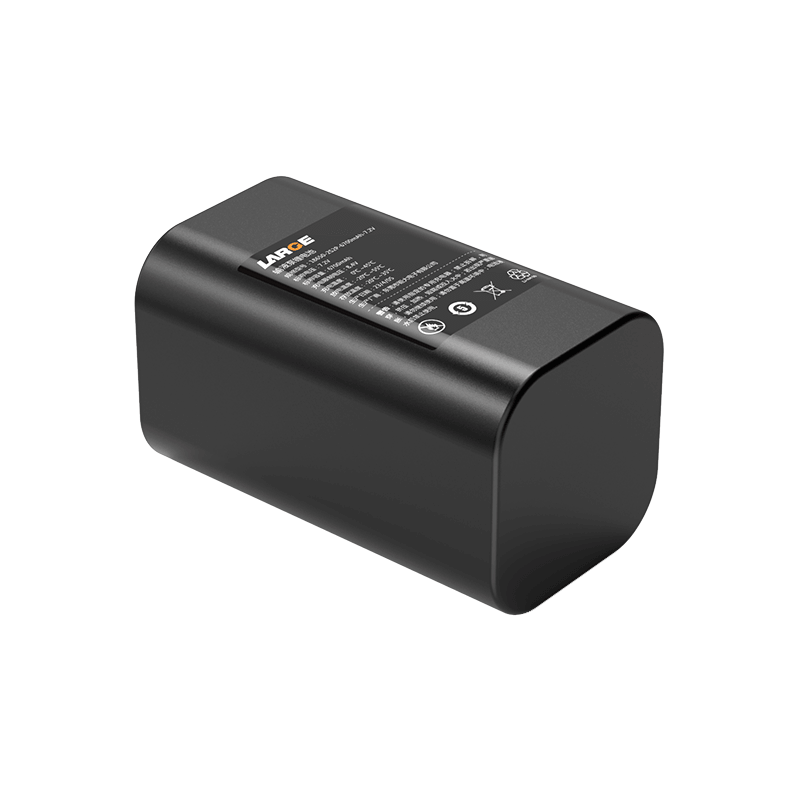

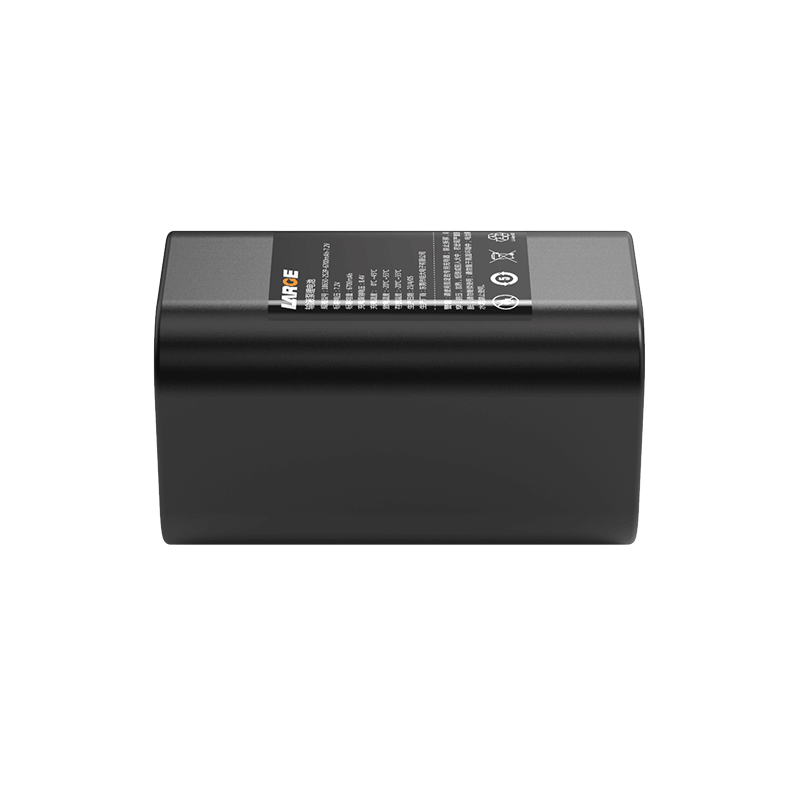

18650 7.2V 6700mAh Infusion Pump Lithium-ion Battery

Product number: 33DZ056-01

Battery model: 18650-3350mAh-3.6V

Battery specification: 18650-2S2P-6700mAh-7.2V

Product size: 69.5*38.5*38.5mm (Max)

Nominal voltage: 7.2V

Nominal capacity: 6700mAh

Finished internal resistance: ≤150mΩ

Charging voltage: 8.4V

Charging current: ≤3.2A

Discharge current: ≤3.2A

Discharge cut-off voltage: 5.0V

Battery weight: 200g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 55℃

Storage temperature: -20 ~ 35℃

Battery package: Blue PVC heat shrink film

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: Medical infusion pump, portable equipment

Product Features

1.Blue PVC heat shrink film package is simple and reliable,and easy to install;

2.Use lithium-ion battery special protection chip and low internal resistance FETMOSF, with high stability, high precision monitoring, accurate control, to maximize the elimination of security risks;

3.Connector plug output: Adopt JST plug output mode to increase conductive reliability;

4.The battery pack has nice safety, good discharge performance and long cycle life;

5.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
