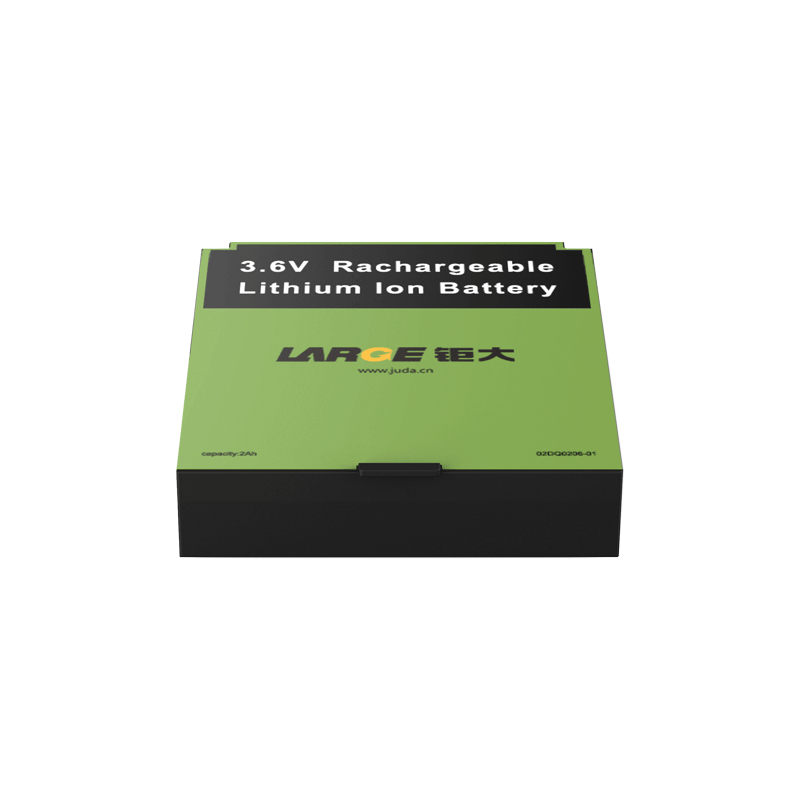

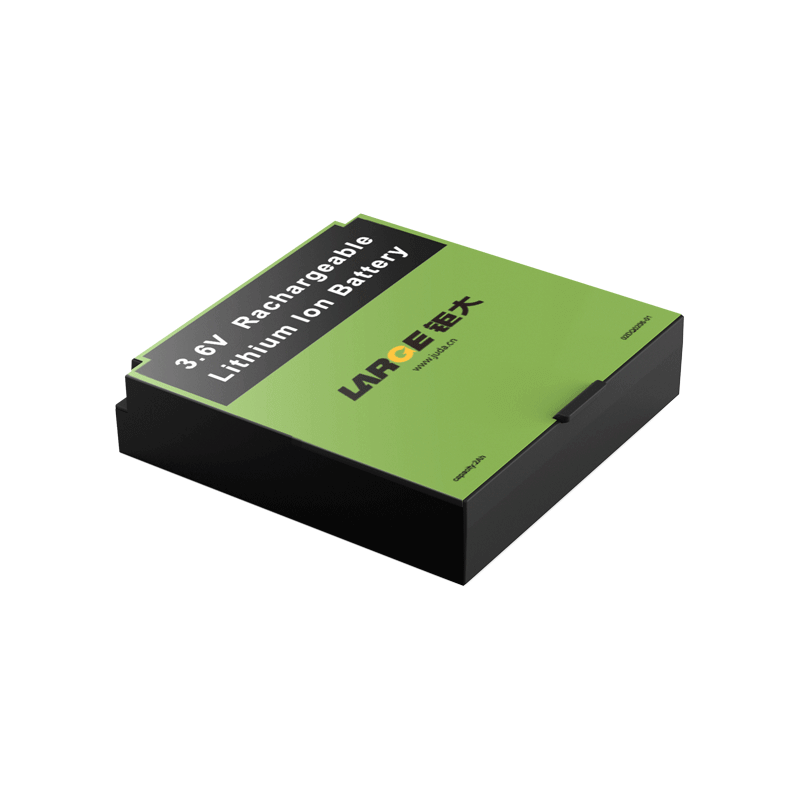

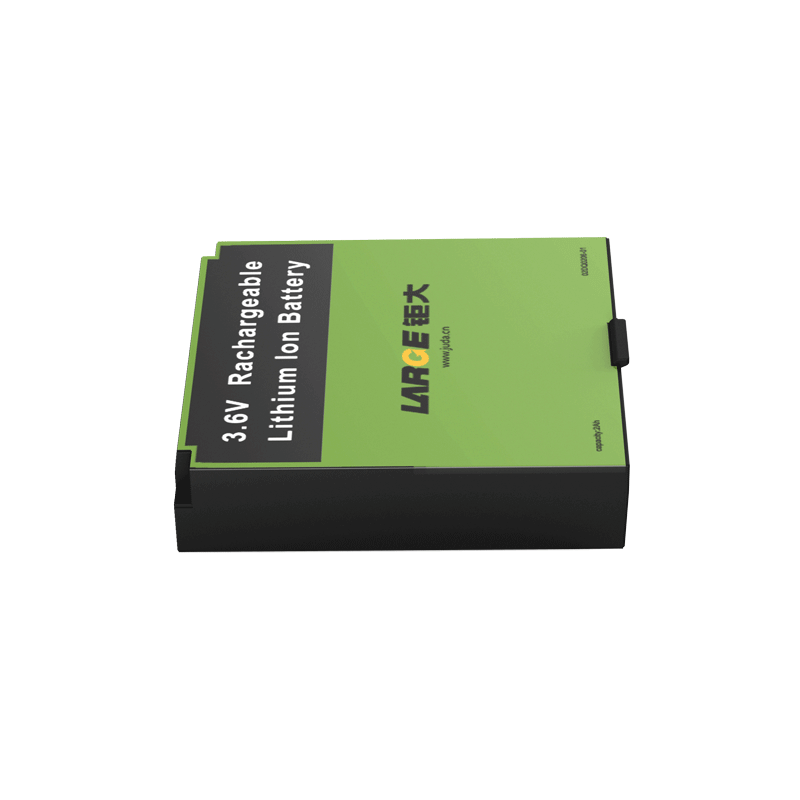

Custom Lithium Ion Battery Pack

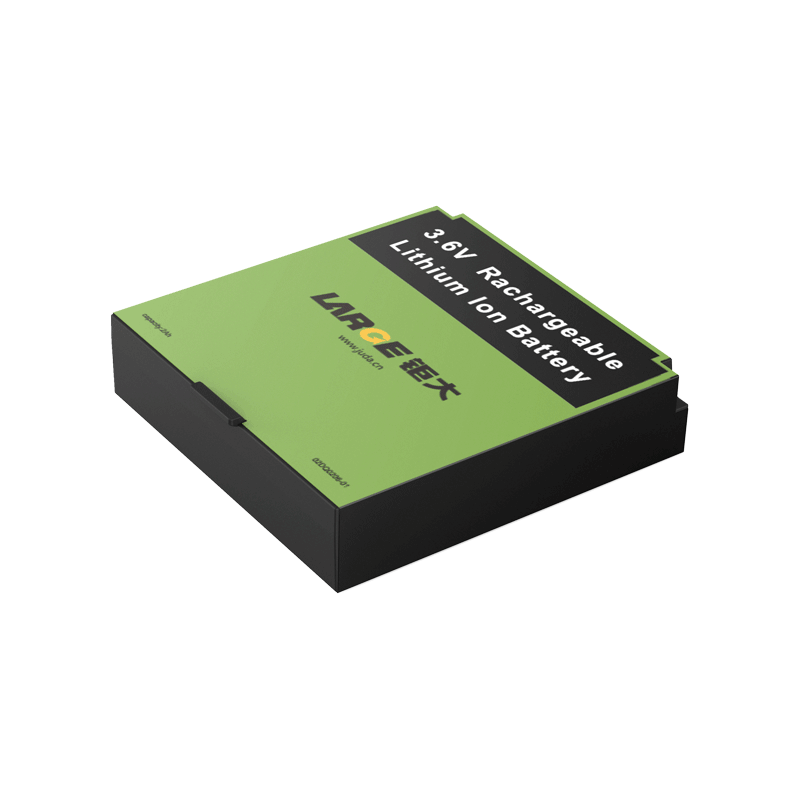

3.6V 2000mAh Explosion-proof Battery Panasonic Battery for Handhold POS Machine

  • Model number:02DQ0206-01

  • Nominal voltage:3.6V

  • Nominal capacity:2000mAh

  • Battery cell:NCA103443/2000mAh/3.6V

  • Dimension:(52.3*49.5*12.0)±0.25mm

  • Application:financial payment

Product Detail

Product number: 02DQ0206-01

Cell model:NCA103443/2000mAh/3.6V

Battery specification: NCA103443/2000mAh/3.6V (plastic case)

Nominal voltage:3.6V

Nominal capacity:2.0Ah

Charging voltage: 29.4V

Charging current: ≤2.0A

Discharging current: ≤2.95A

End-off voltage: 2.75V

Internal resistance: ≤150mΩ

Battery weight: about 80g

Product dimension: (52.3*49.5*12.0)±0.25mm

Charging temperature:10~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: plastic case

Lithium ion battery protection: Exib iiB T4 explosion-proof function, overcharge protection, over-discharge protection, overcurrent protection and short circuit protection

Application field: financial payment


Product features

1. It has Exib iiB T4 explosion-proof function, so that it can operate under extreme conditions (including petrol station).

2. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
