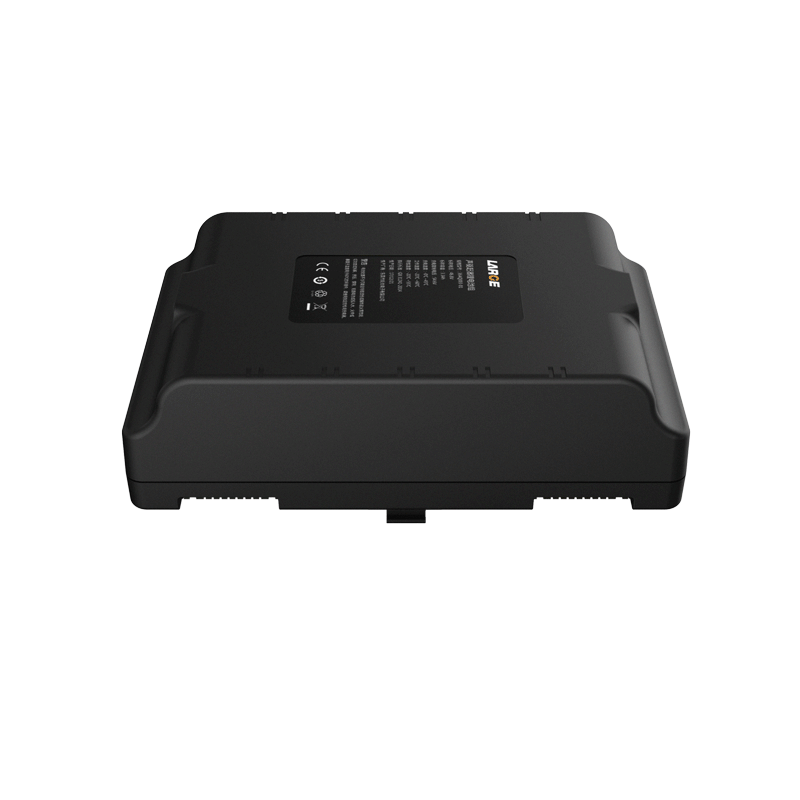

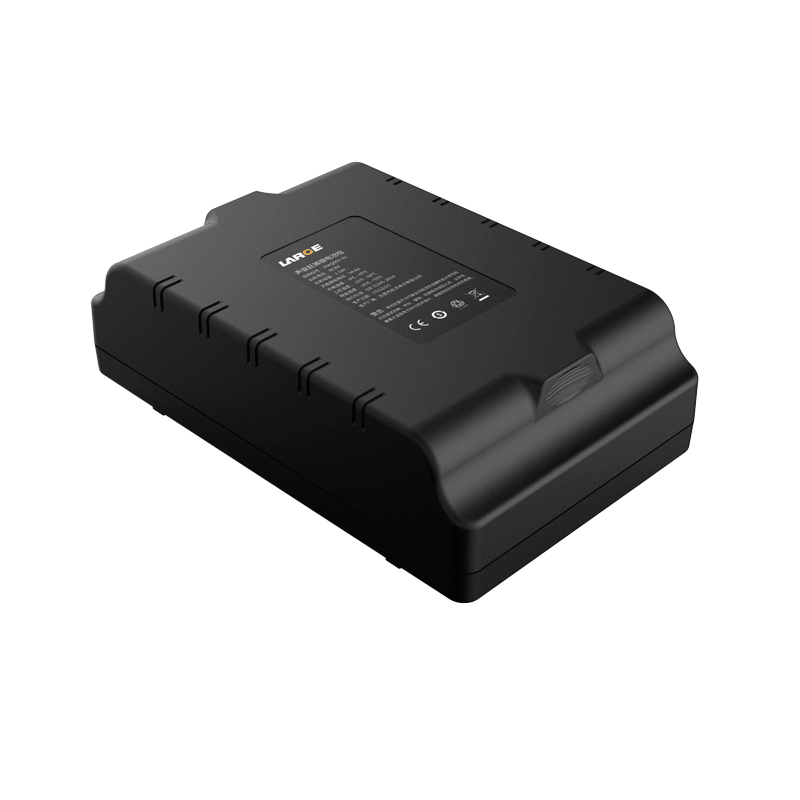

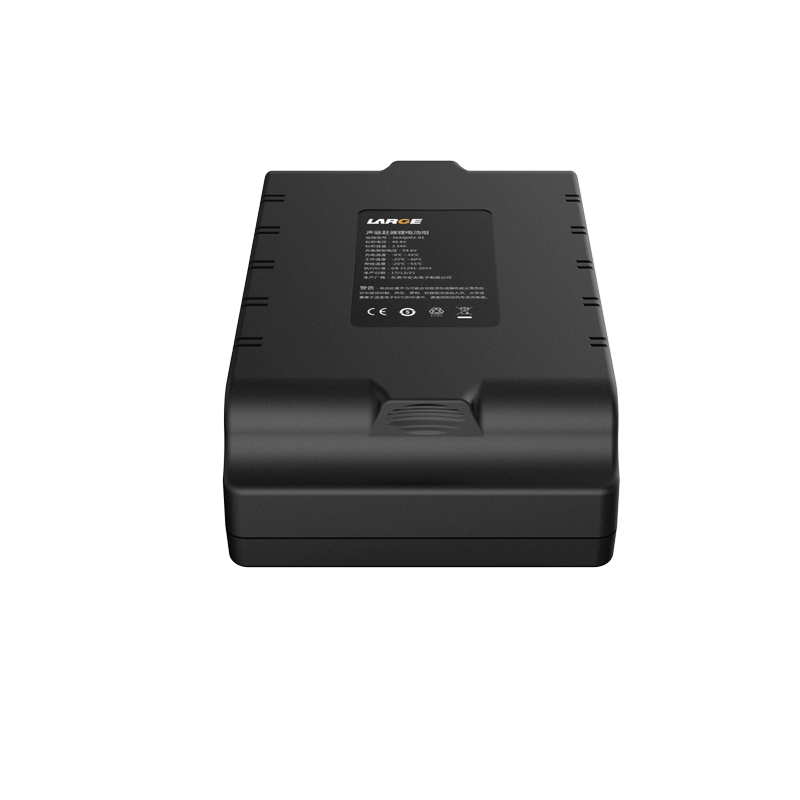

46.8V 3.3Ah 18650 Lithium Ion Battery Panasonic Battery for Sound Driven Device with SMBUS Communication Port

46.8V 3.3Ah 18650 Lithium Ion Battery Panasonic Battery for Sound Driven Device with SMBUS Communication Port
46.8V 3.3Ah 18650 Lithium Ion Battery Panasonic Battery for Sound Driven Device with SMBUS Communication Port
46.8V 3.3Ah 18650 Lithium Ion Battery Panasonic Battery for Sound Driven Device with SMBUS Communication Port
46.8V 3.3Ah 18650 Lithium Ion Battery Panasonic Battery for Sound Driven Device with SMBUS Communication Port

Product Detail

Product number: 36AQ003-01

Cell model:18650/3.6V/3.35Ah

Battery specification: 18650-13S1P/46.8V/3.3Ah

Nominal voltage:46.8V

Nominal capacity:3.3Ah

Charging voltage: 54.6V

Charging current: ≤1.5A

Discharging current: 0.67A

Instant discharging current: 3A

End-off voltage: 36.4V

Internal resistance: ≤250mΩ

Battery weight: 1Kg

Product dimension: 142×90×40.5(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~55 ℃

Battery case: cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: sound expelling


Product features

1. Shock-resistant: fill in the shock-resistant structure inside with cold rolling metal plate housing to satisfy the requirements of good security and high reliability.

2. Large current: connect the batteries by copper nickel compositing with nickel strap, which is safe and reliable.

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
