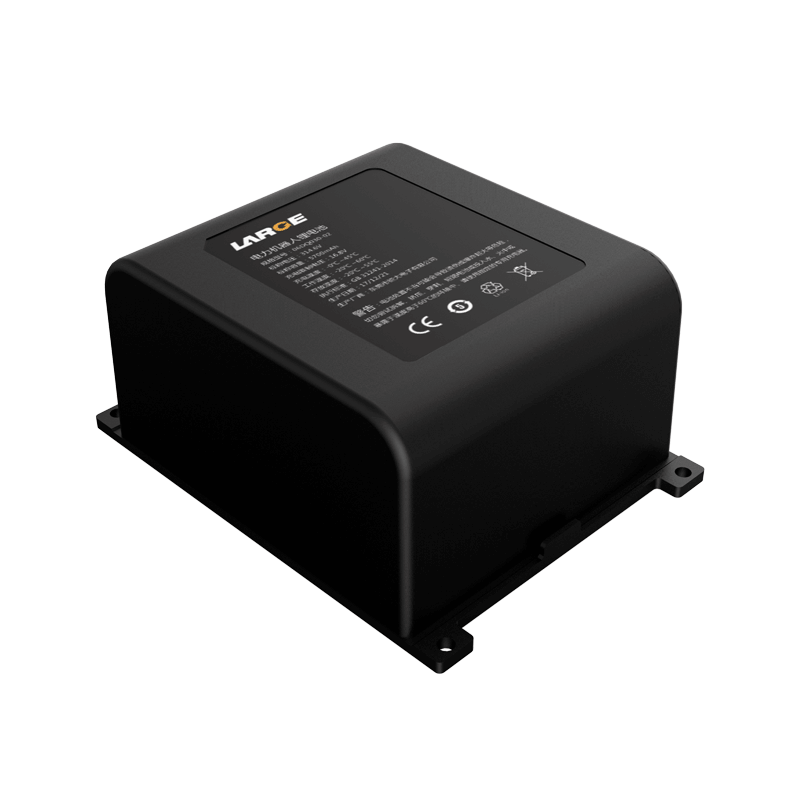

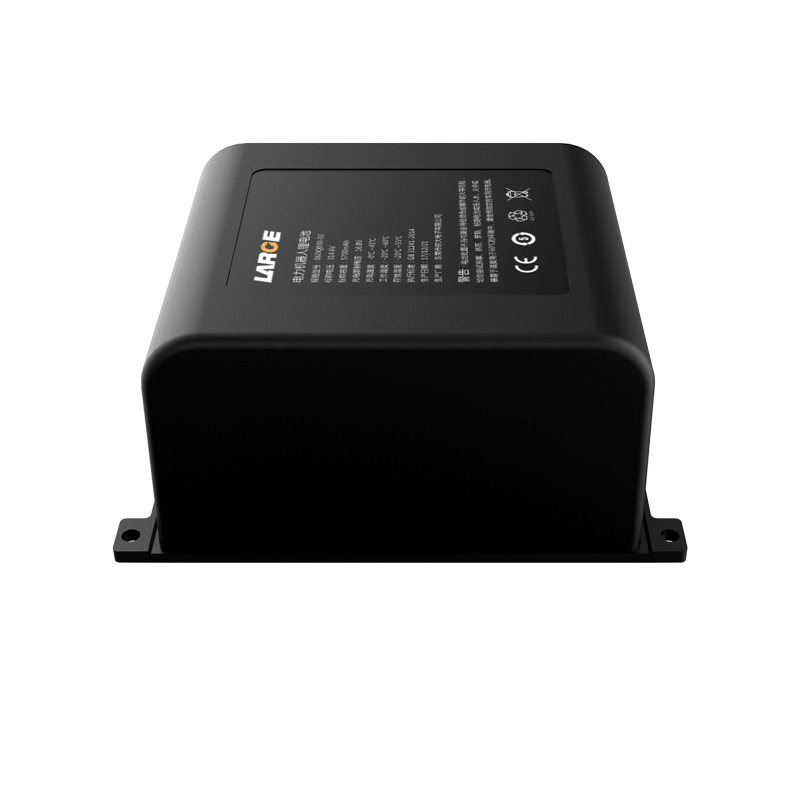

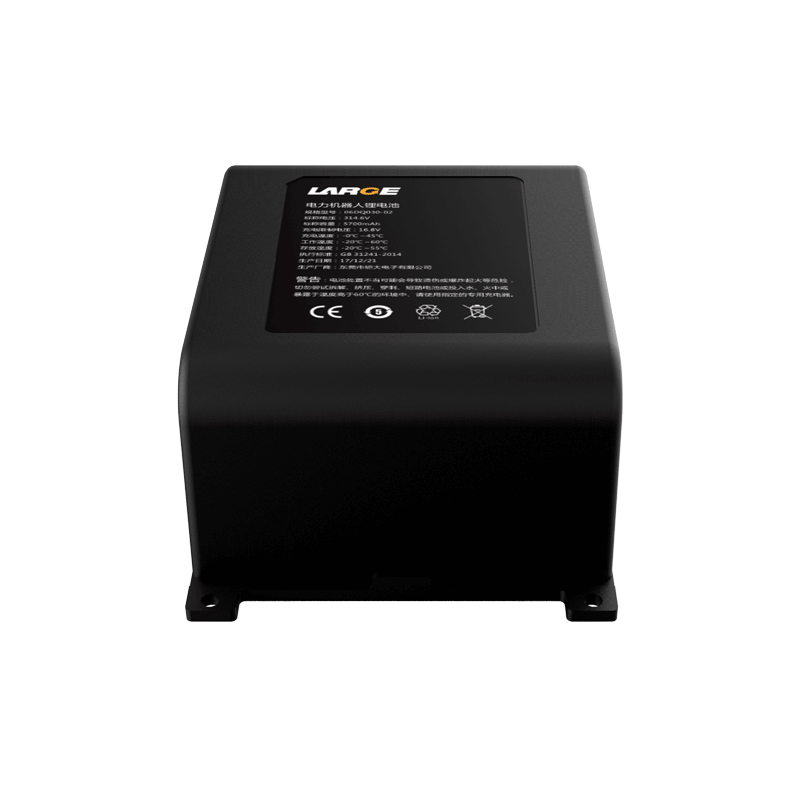

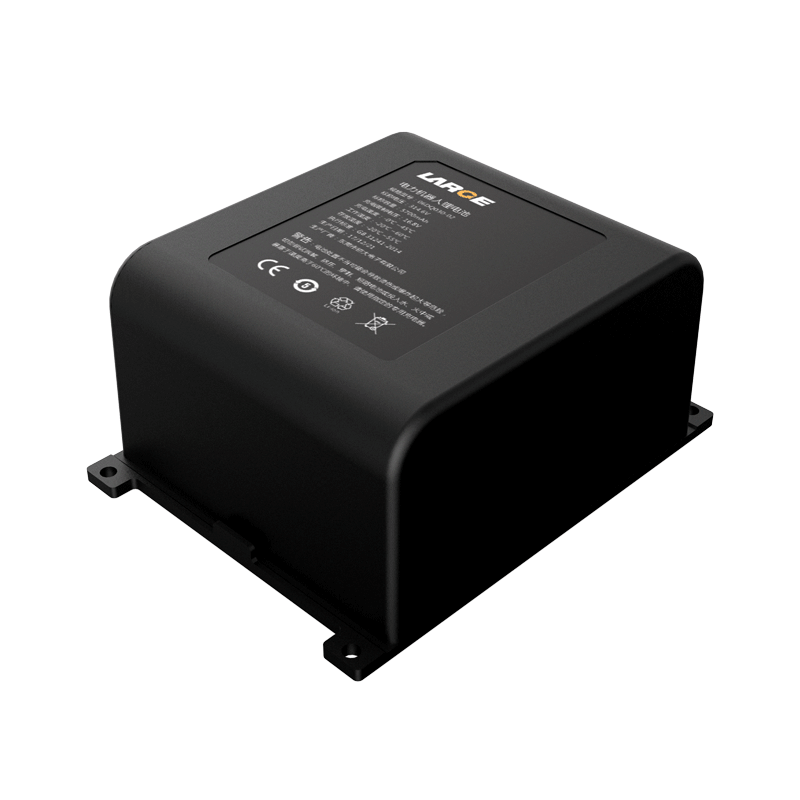

14.8V 5700mAh 18650 Lithium Ion Battery Samsung Battery for Power Robot with SMBUS Communication

Product Detail

Product number: 06DQ030-02

Cell model:18650/3.65V/2850mAh

Battery specification: 18650-4S2P/14.6V/5700mAh

Nominal voltage:14.6V

Nominal capacity:5700mAh

Charging voltage: 16.8V

Charging current: ≤5A

Discharging current: 10A

Instant discharging current: 11A

End-off voltage: 10V

Internal resistance: ≤200mΩ

Battery weight: 0.5Kg

Product dimension: 96.2*72.2*44.2mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35℃

Temperature protection: 60℃±5℃

Battery case: ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, equilibrium, etc.

Application field: robot

Product features

1. Data communication management: adopt TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

2. The battery pack has good security, nice performance and long cycle life.

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
