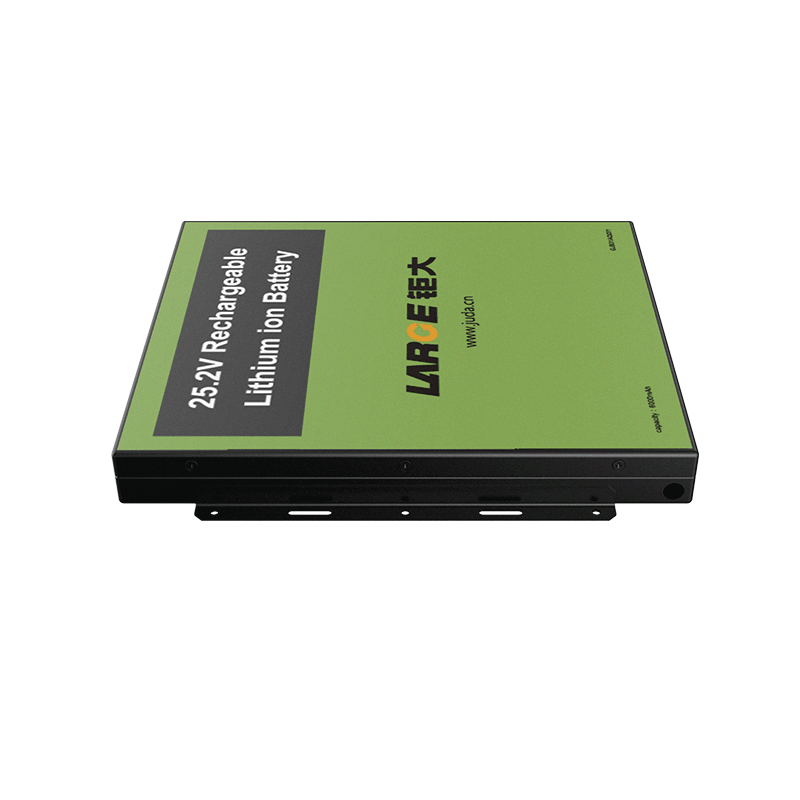

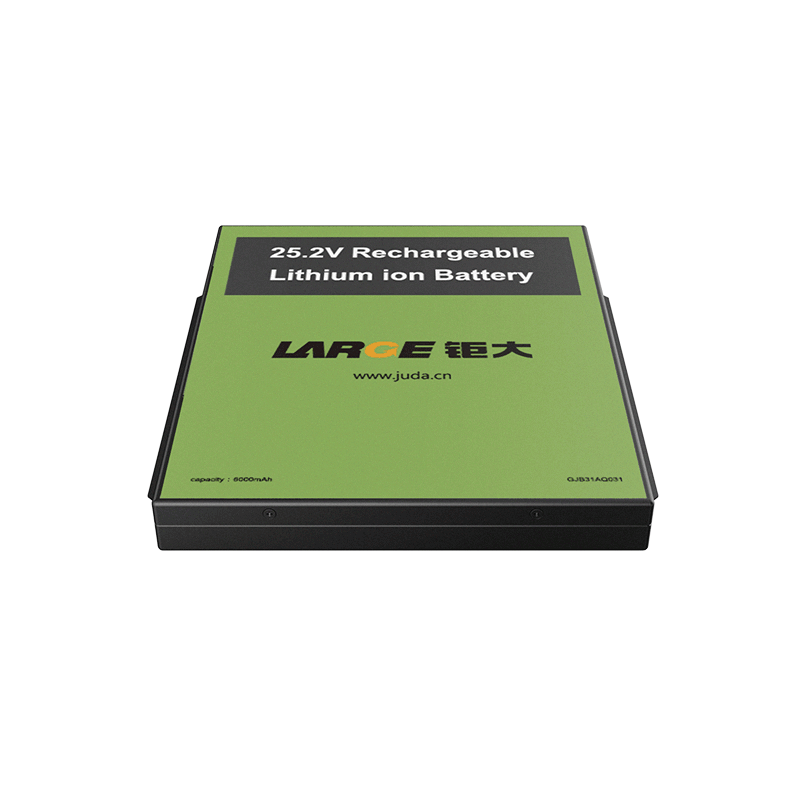

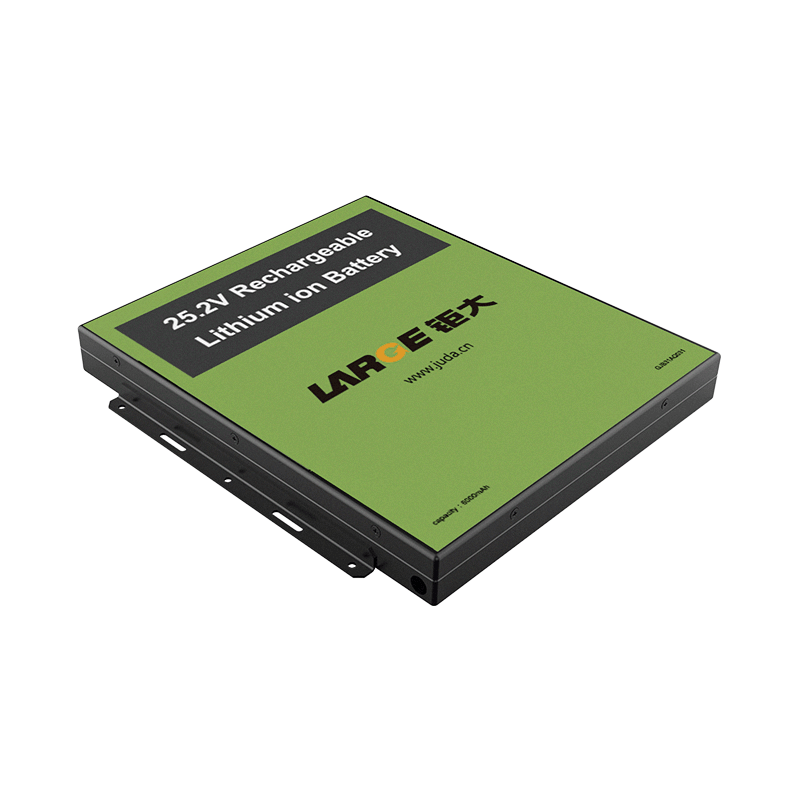

Custom Lithium ion Battery Pack

25.2V 6000mAh 18650 Low Temperature Battery for Special Purpose Laptop

Product Detail

Product number: GJB31AQ031

Cell model:18650/2200mAh/3.6V

Battery specification: HPB-513-32/6000mAh/25.2V

Nominal voltage:25.2V

Nominal capacity:6000mAh

Charging voltage: 29.4V

Charging current: ≤5A

Discharging current: 3A

Instant discharging current: 6A

End-off voltage: 17.5V

Internal resistance: ≤200mΩ

Battery weight: 1.5Kg

Product dimension: 220*170*25mm(Max)

Charging temperature:0~45℃

Discharging temperature: -40~55 ℃

Storage temperature: -20~45℃

Battery housing: military cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, equilibrium, IIC communication, etc.

Application field: special purpose laptop

Product features

1. Current: the maximum continuous discharging current is 60A.

2. Data communication management: adopt imported software management chip, IIC communicating function, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

3. Battery feature: adopt cell discharging at -40℃.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
