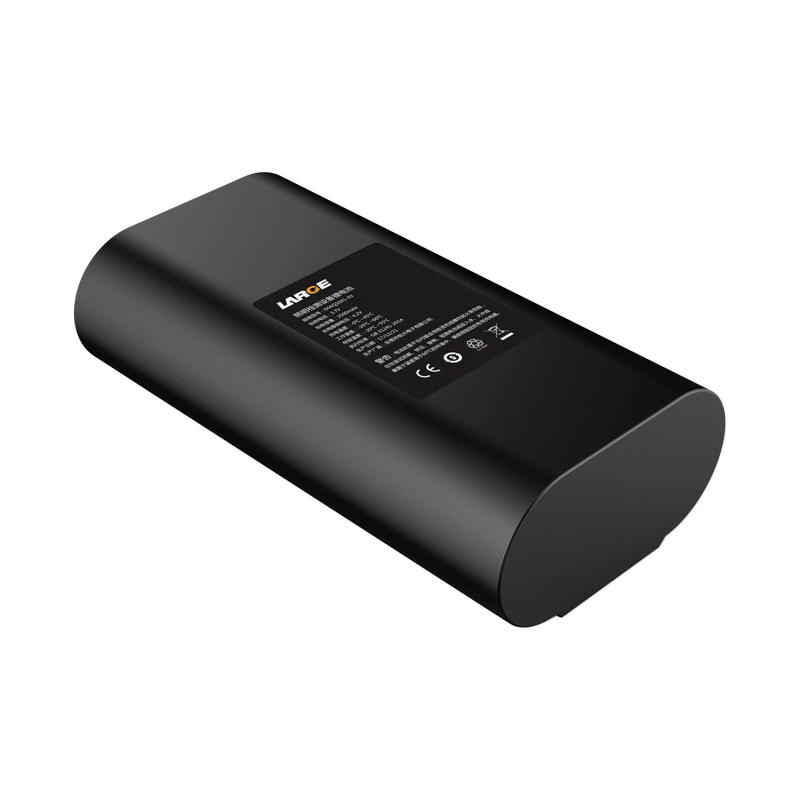

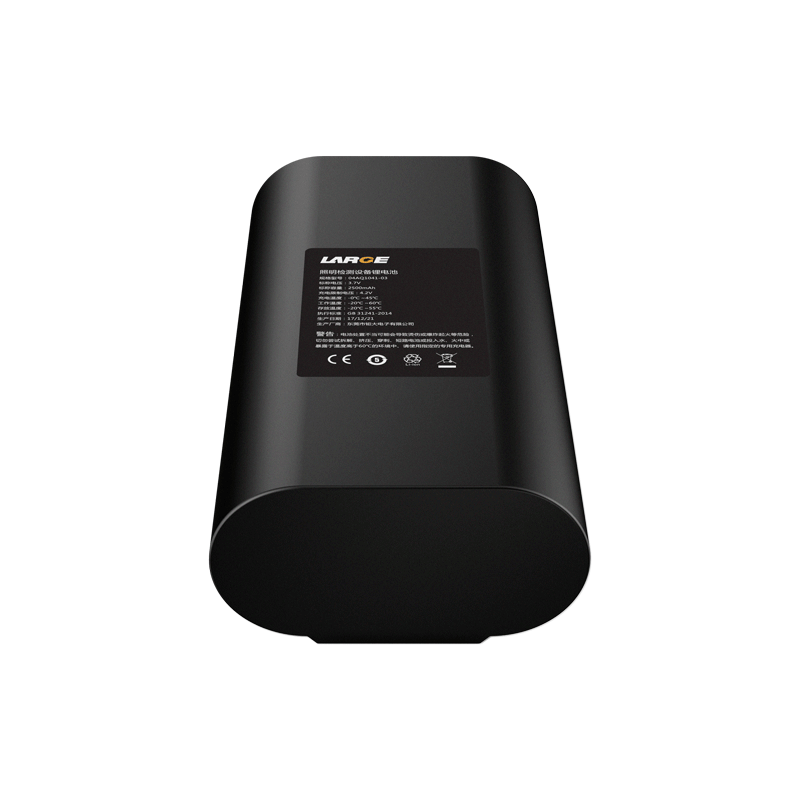

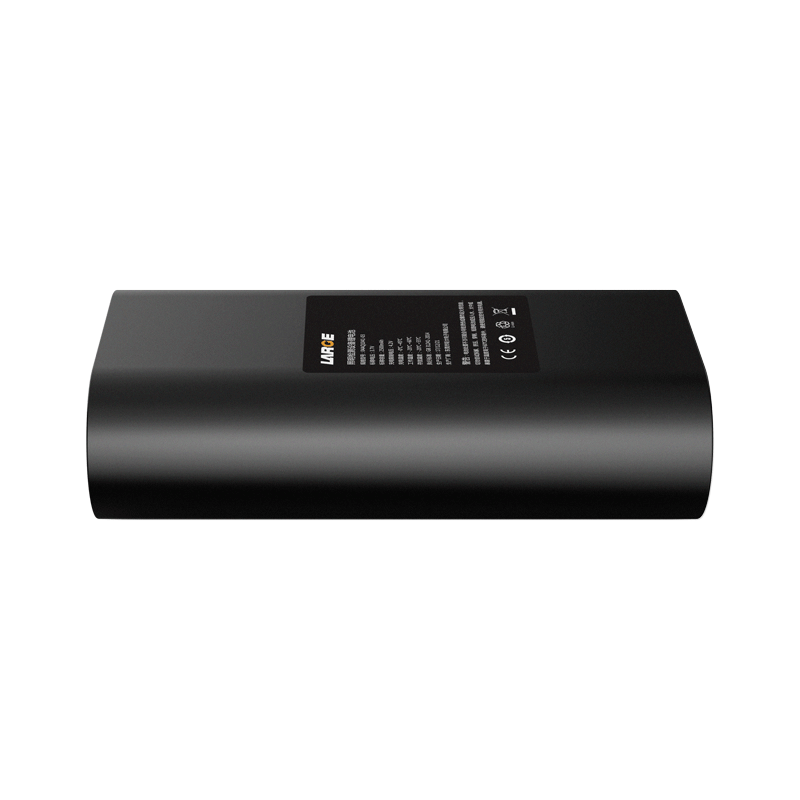

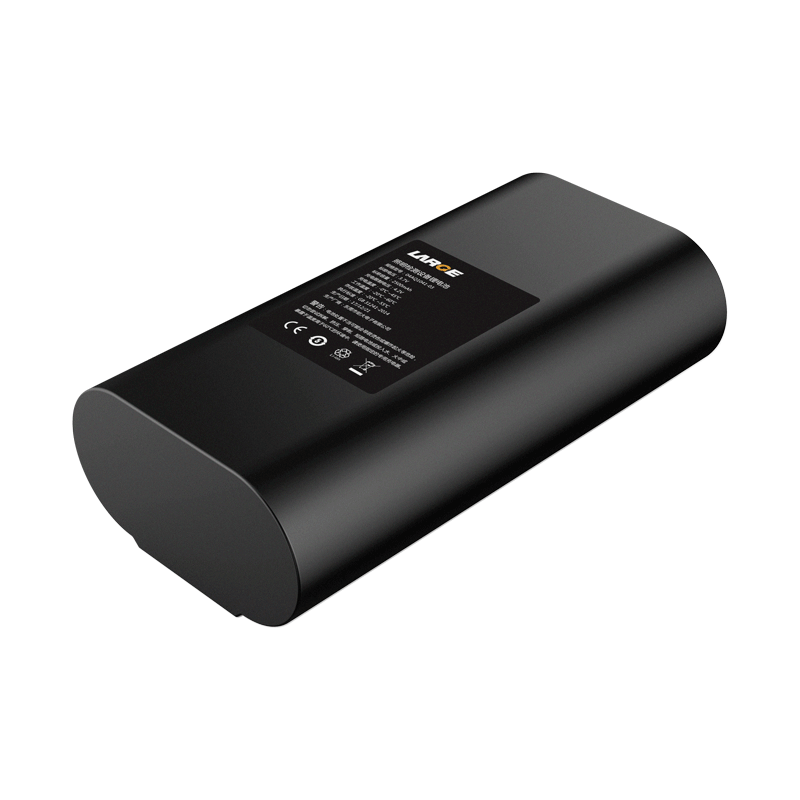

3.7V 5000mAh 18650 Lithium Ion Battery Sanyo Battery for Lighting Detection Equipment
Product Number:
04AQ1041-03
Nominal voltage:
3.7V
Nominal capacity:
2500mAh
Battery Configuration:
18650-1S2P
Dimension:
68 × 38.5 × 21mm (Max)
Application:
lighting inspection equipment and measurement & control instruments
Stable Power Output, Compact PVC Design, Multi Protection System
Product Overview
This battery is specially designed for lighting inspection equipment and measurement & control instruments, suitable for outdoor testing and continuous operation scenarios. Featuring stable output and a compact structure, it supports long-term high-load operation reliably.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 04AQ1041-03 |
| Cell Model | 18650/3.7V/2500mAh |
| Battery Configuration | 18650-1S2P |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 2500mAh |
| Rated Energy | 9.25Wh |
| Charging Voltage | 4.2V |
| Discharge Cut-off Voltage | 3.0V |
| Standard Charging Current | ≤2000mA |
| Standard Discharge Current | 2000mA |
| Max Continuous discharge current | 3.0A |
| Internal Resistance | ≤200mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0 ～ 45 ℃ |
| Discharge Temperature | -20 ～ 60 ℃ |
| Storage temperature | -20 ～ 35 ℃ |
| Dimensions | 68 × 38.5 × 21mm (Max) |
| Weight | 90g |
| Battery Case | PVC |
| Protection System | Short circuit protection, overcharge protection, over-discharge protection, overcurrent protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
