Custom Lithium Ion Battery Pack

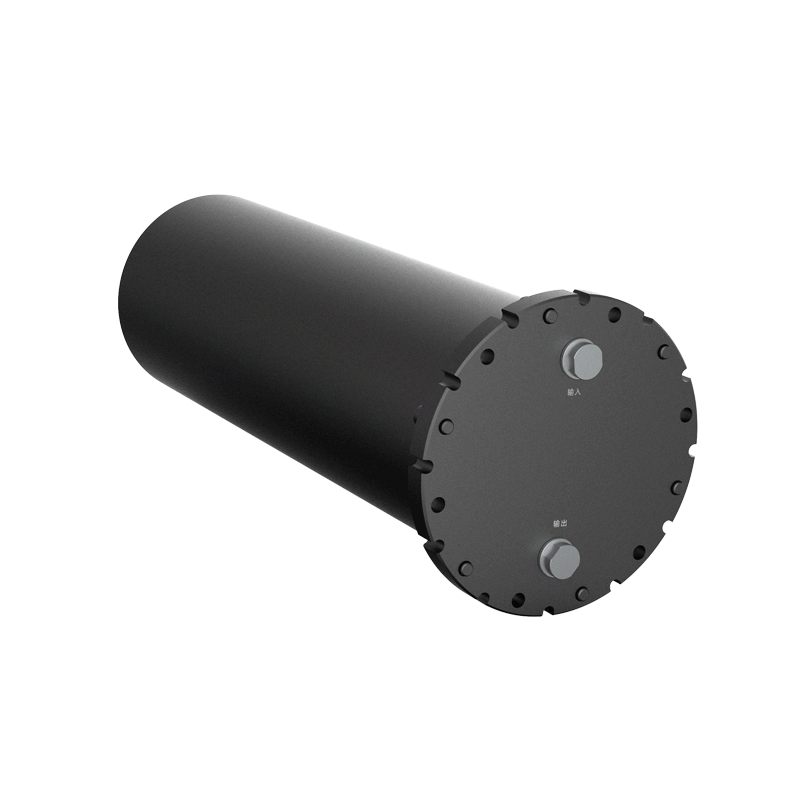

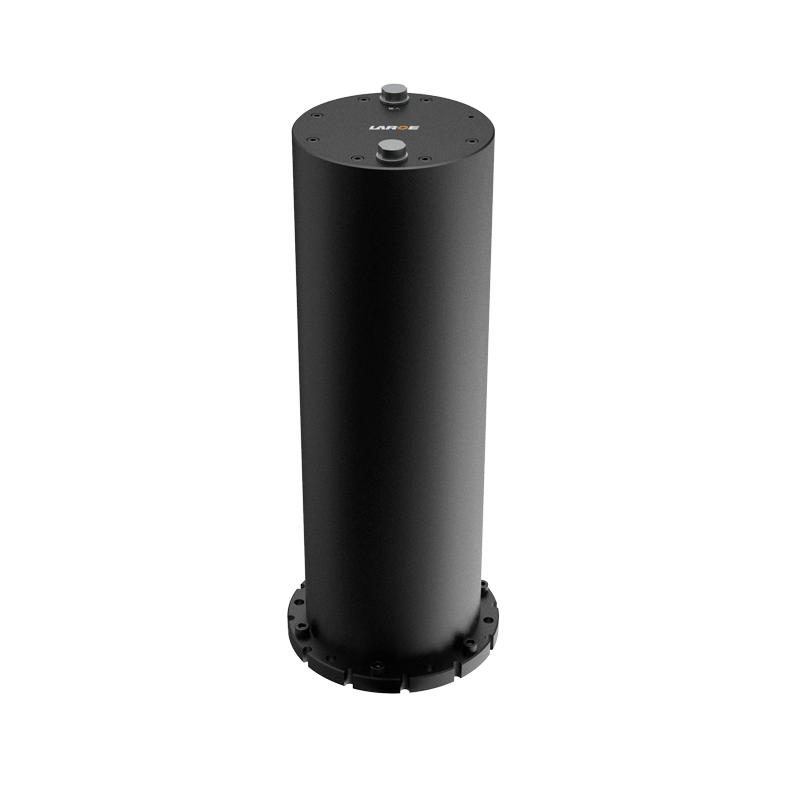

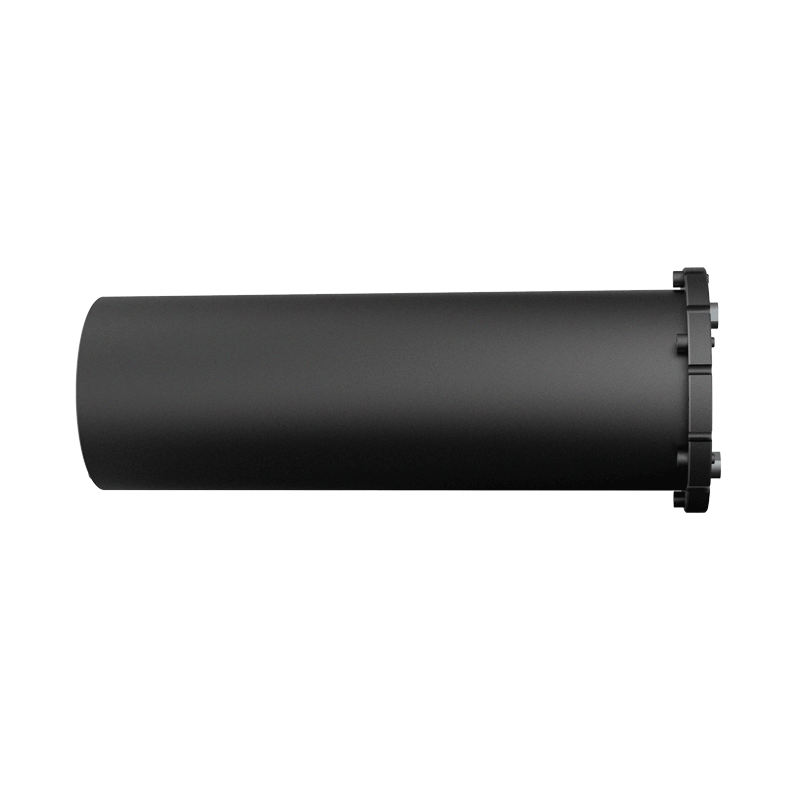

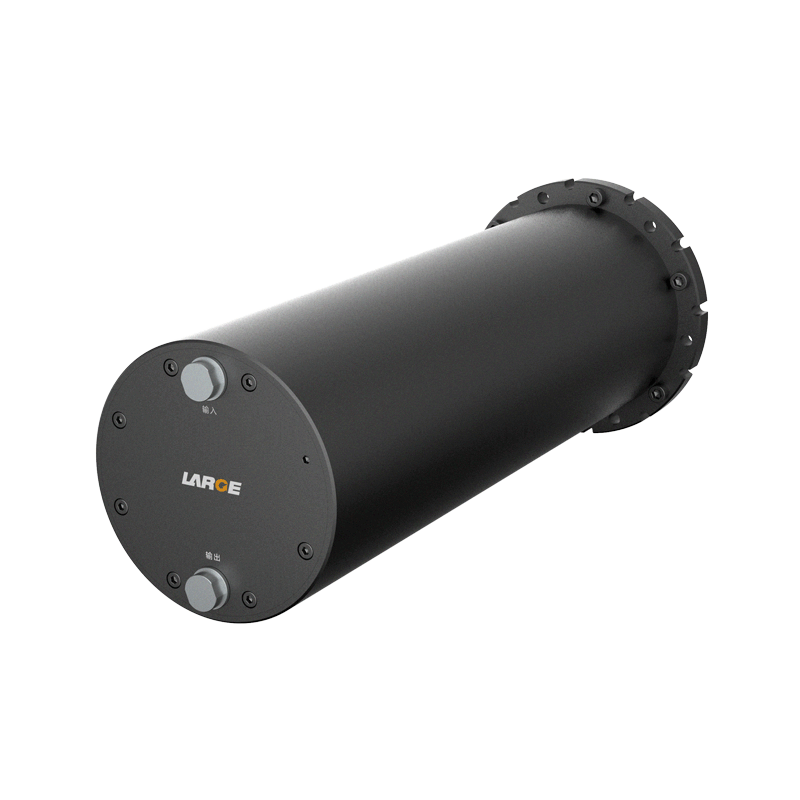

3.6V 119Ah 18650 Lithium Battery for Oil and Gas Pipelines Monitor

  • Model number:03EQ145-01

  • Nominal voltage:3.6V

  • Nominal capacity:115000mAh

  • Battery cell:18650/3.6V/3500mAh

  • Dimension:φ120*360mm(Max)

  • Application:industrial battery, backup battery of oil-gas battery

Product Detail

Product number: 03EQ145-01

Cell model:18650/3.6V/3500mAh

Battery specification: 18650-1S34P/3.6V/119Ah

Nominal voltage:3.6V

Nominal capacity:115Ah

Charging voltage: 4.2V

Charging current: ≤4A

Discharging current: 2A

Instant discharging current: 10A

End-off voltage: 2.7V

Internal resistance: ≤200mΩ

Battery weight: 5.5kg

Product dimension: φ120*360mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35℃

Temperature protection: 60℃±5℃

Battery case: aluminium alloy housing

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection and temperature protection.

Application field: industrial battery, backup battery of oil-gas battery


Product features

1. Large current: connect the batteries by copper nickel compositing with nickel strap, meeting the requirements of large current charging and discharging, which is safe and reliable.

2. Output aviation plug: adopt aviation connector, meeting the requirements of large current charging and discharging, which is safe and reliable.

3. Data communication management: adopt BMS software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

4. Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

6. Charging: adopt aviation plug.


*
*
*
