Custom Lithium ion Battery Pack

26650 25.6V 10Ah LiFePO4 Battery for Hospital Logistics Robot

  • Model number:04EQ235-01

  • Nominal voltage:25.6V

  • Nominal capacity:10000mAh

  • Battery cell:26650/3.5V/3.5Ah

  • Dimension:235×160×75(Max)

  • Application:medical device, medical logistics

Product Detail

Product number: 04EQ235-01

Cell model:26650/3.5V/3.5Ah

Battery specification: 26650/8S3P/25.6V/10Ah

Nominal voltage:25.6V

Nominal capacity:10Ah

Charging voltage: 29.2V

Charging current: ≤2A

Discharging current: 5A

Instant discharging current: 10A

End-off voltage: 20V

Internal resistance: ≤200mΩ

Battery weight: 2.5Kg

Product dimension: 235×160×75(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~40 ℃

Temperature protection: yes

Battery case: metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, equilibrium, etc.

Application field: medical device, medical logistics


Product features

Dustproof and shockproof: fill in the inside cold rolling metal plate housing by shockproof structure design, which meets the requirements of dustproof and shockproof.

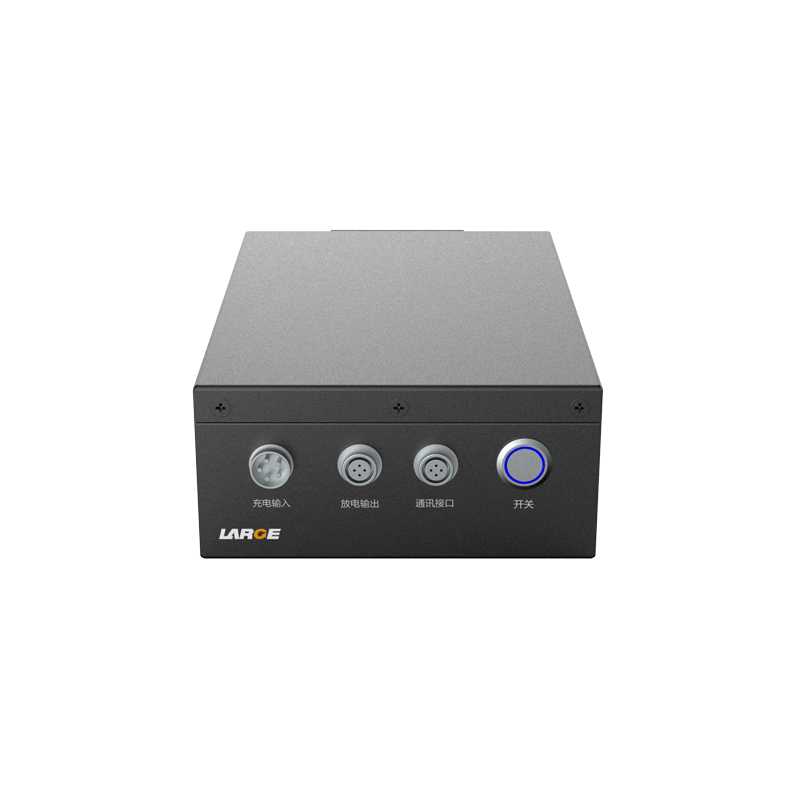

Waterproof aviation connector: adopt waterproof aviation connector, which is safe and reliable.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

It can work under ultra-low temperature, and discharge at -20℃.


*
*
*
