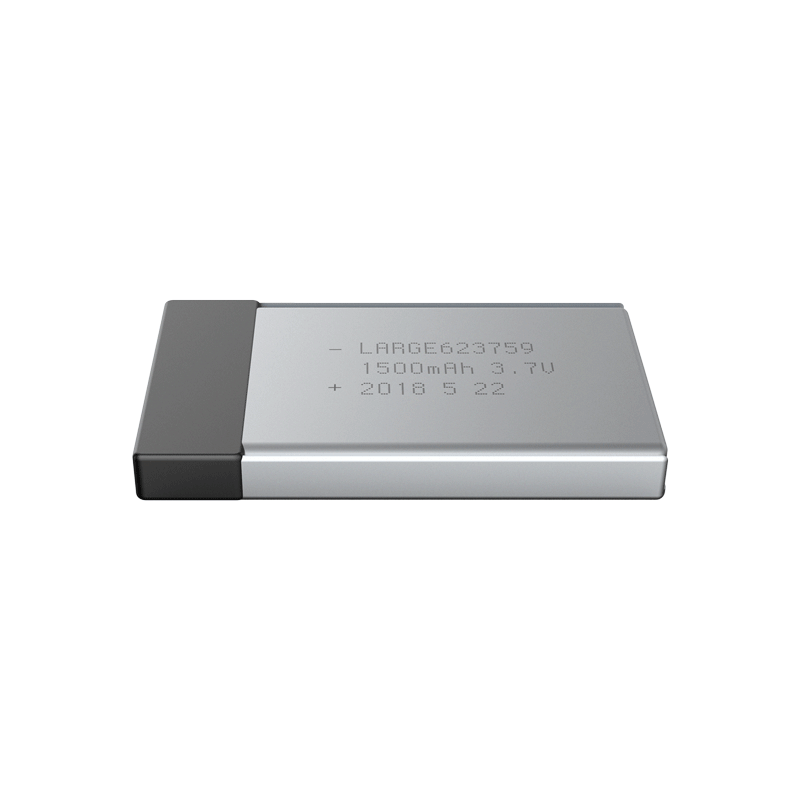

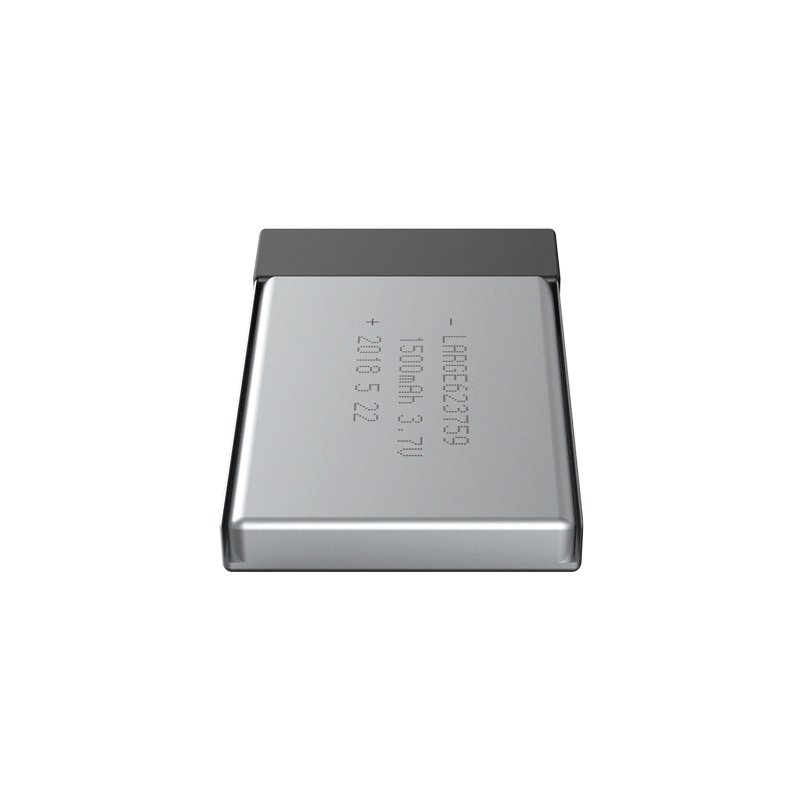

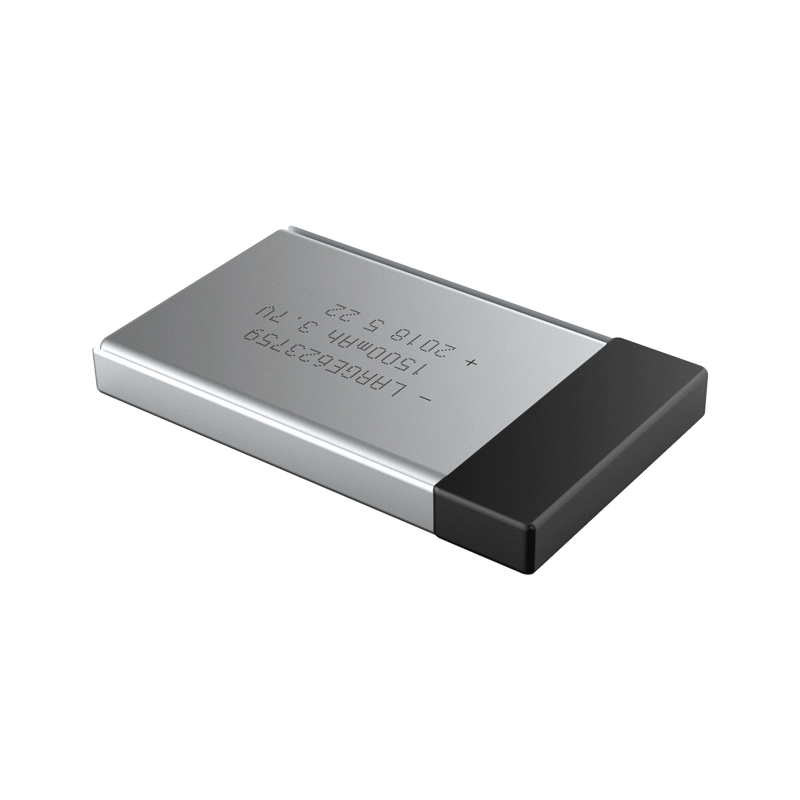

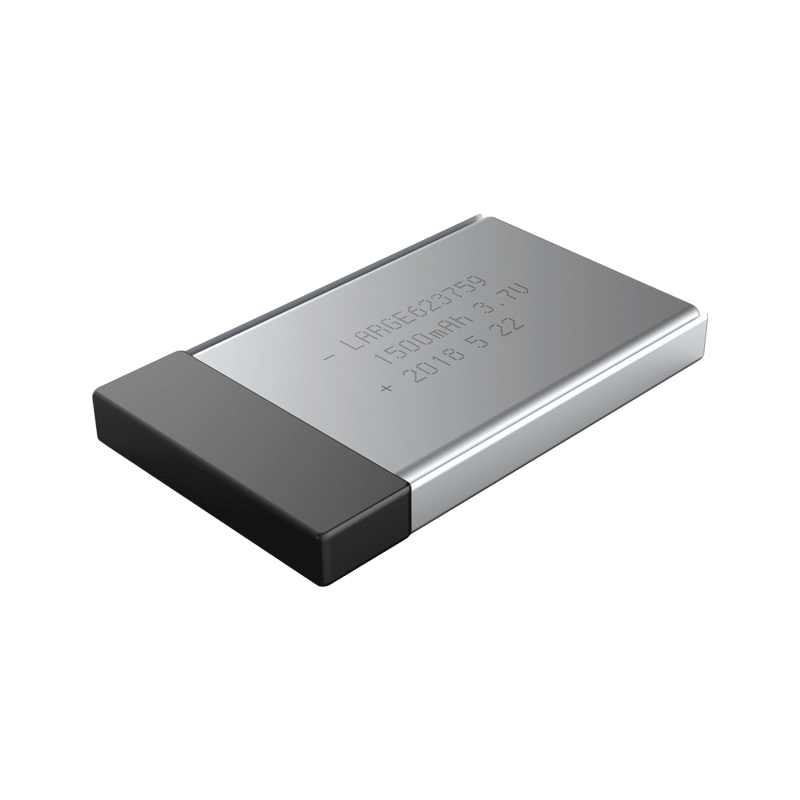

3.7V 1500mAh Lithium Ion Battery for Medical electronics

Product Detail

Product number: 04AQ1040-03

Cell model:623759/3.7V/1500mAh

Battery specification: 623759-1S1P/3.7V/1500mAh

Nominal voltage:3.7V

Nominal capacity:1500mAh

Charging voltage: 4.2V

Charging current: ≤1000mA

Discharging current: 1000mA

Instant discharging current: 1.5mA

End-off voltage: 3.0V

Internal resistance: ≤190mΩ

Battery weight: 30g

Product dimension: 61*37.7*6.7mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: high temperature tape

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: Medical electronics, test and control instrument

*
*
*
