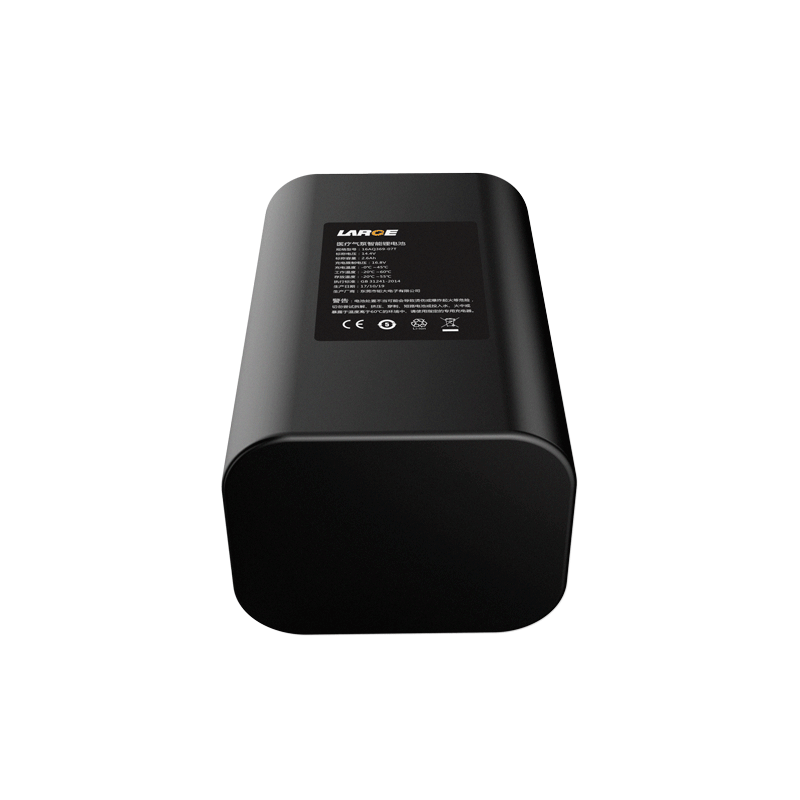

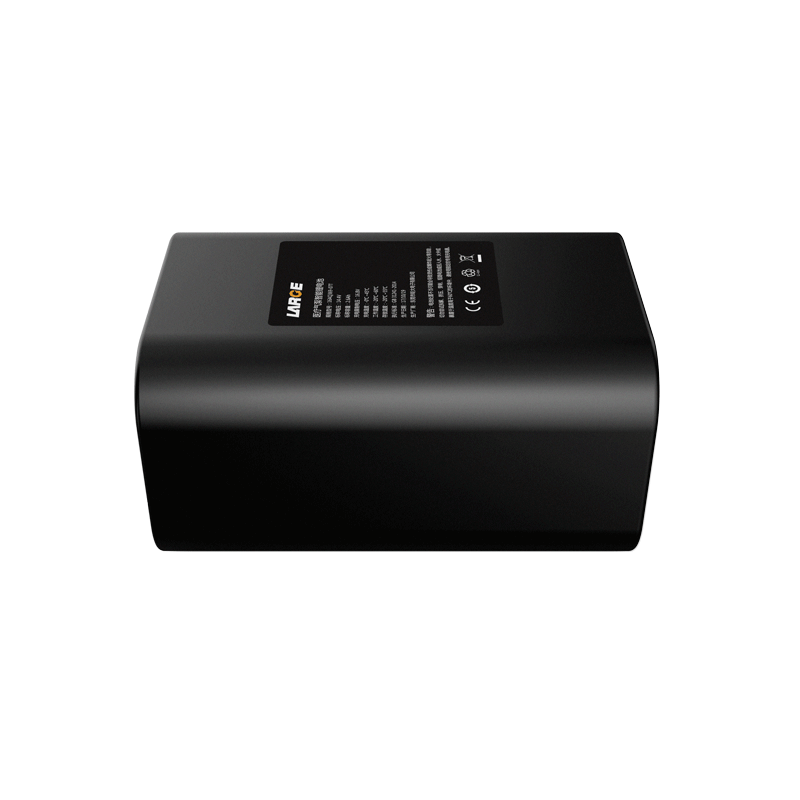

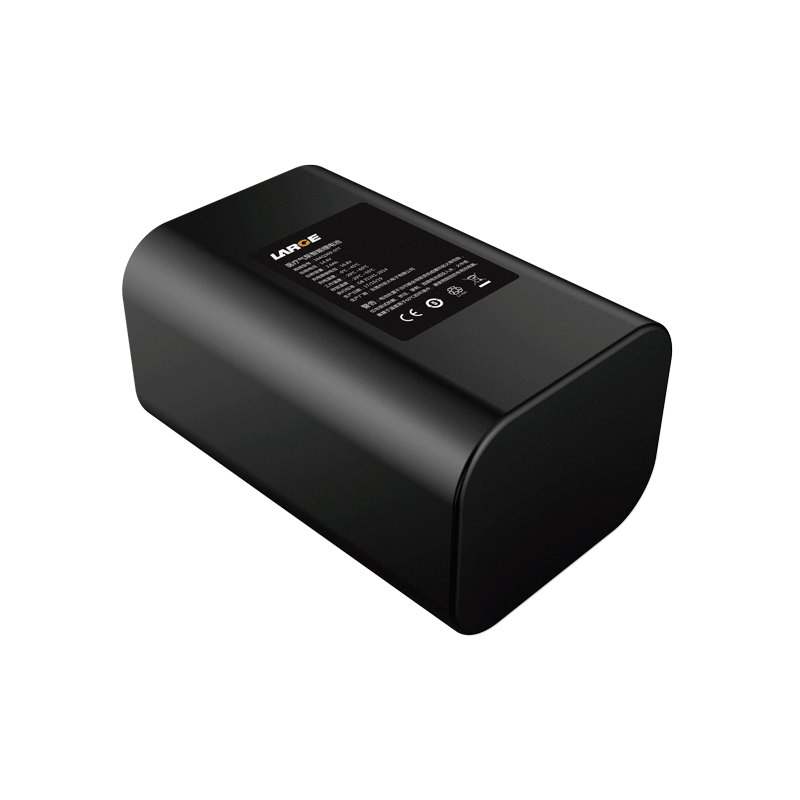

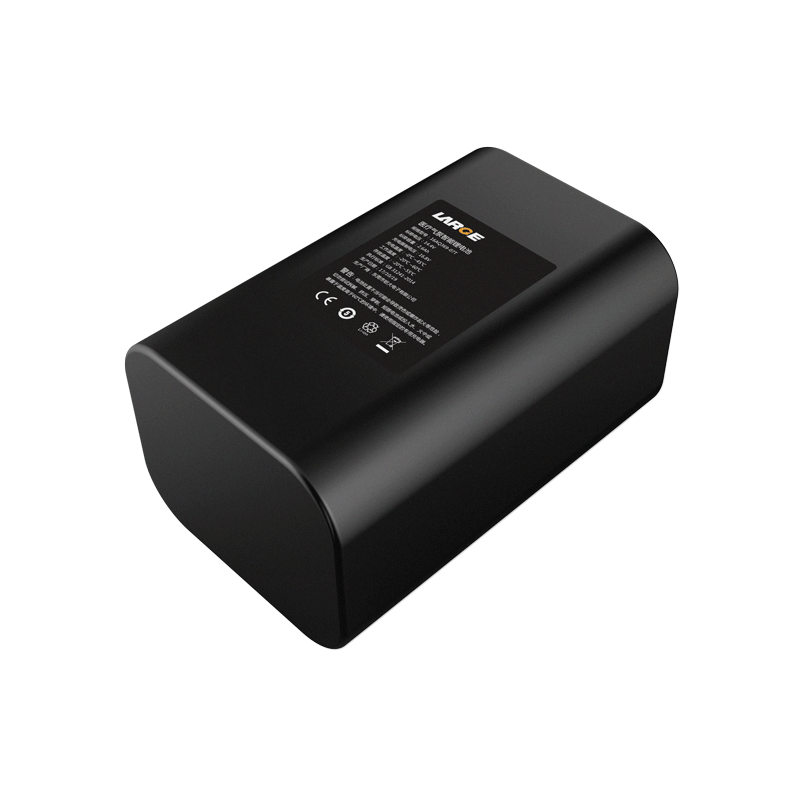

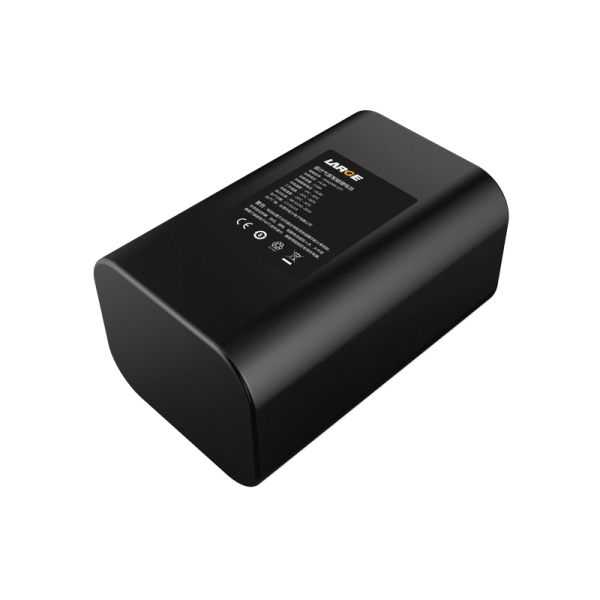

18650 14.4V 2600mA Lithium Ion Battery for Medical Air Pump with SMBUS Communication

18650 14.4V 2600mA Lithium Ion Battery for Medical Air Pump with SMBUS Communication
18650 14.4V 2600mA Lithium Ion Battery for Medical Air Pump with SMBUS Communication
18650 14.4V 2600mA Lithium Ion Battery for Medical Air Pump with SMBUS Communication
18650 14.4V 2600mA Lithium Ion Battery for Medical Air Pump with SMBUS Communication

Product Detail

Product number: 16AQ369-07T

Cell model:LR1865SK/2600mAh/3.6V

Battery specification: LR1865SK/4S1P/2600mAh/14.4V

Nominal voltage:14.4V

Nominal capacity:2.6Ah

Charging voltage: 16.8V

Charging current: ≤1.3A

Discharging current: ≤2.6A

Instant discharging current:  6A for 20mS

End-off voltage: 11.0V

Internal resistance: ≤350mΩ

Battery weight: about 210g

Product dimension: 73*47.5*38mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: PVC

Lithium ion battery protection: overcharge protection, over-discharge protection, charge and discharge overcurrent protection, charge and discharge short circuit protection, charge and discharge temperature protection, low voltage alarm

Application field: medical air pump


Product features

1. Data communication management SMBUS: adopt TI software management chip and IC monitor which can check the temperature, voltage, capacity, percentage, etc. of the battery.

2. The host carries on the data transmission by SMBUS, which can check the battery information at any time and improve the security function.

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
