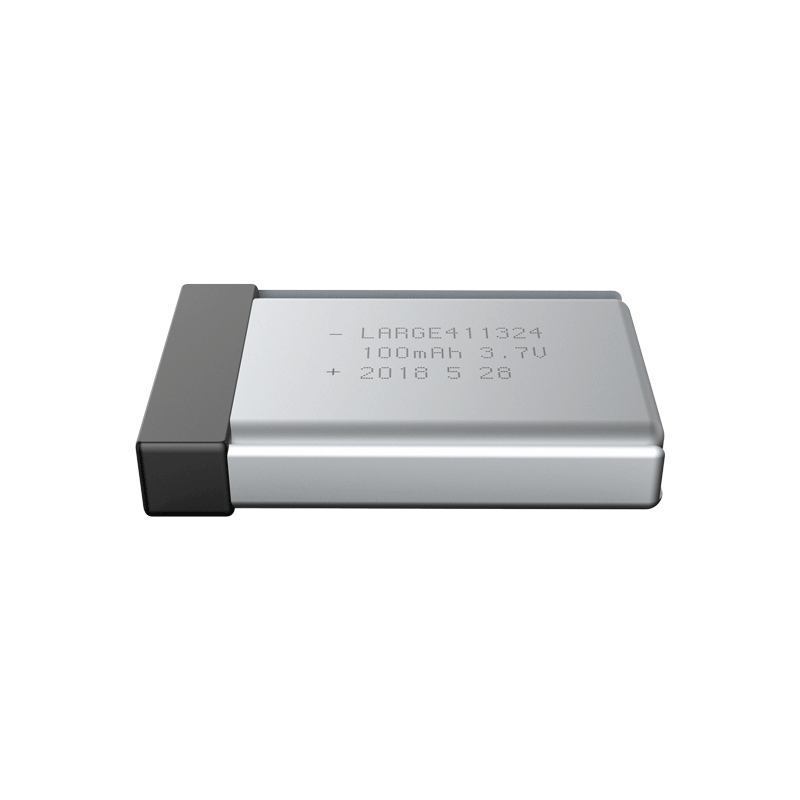

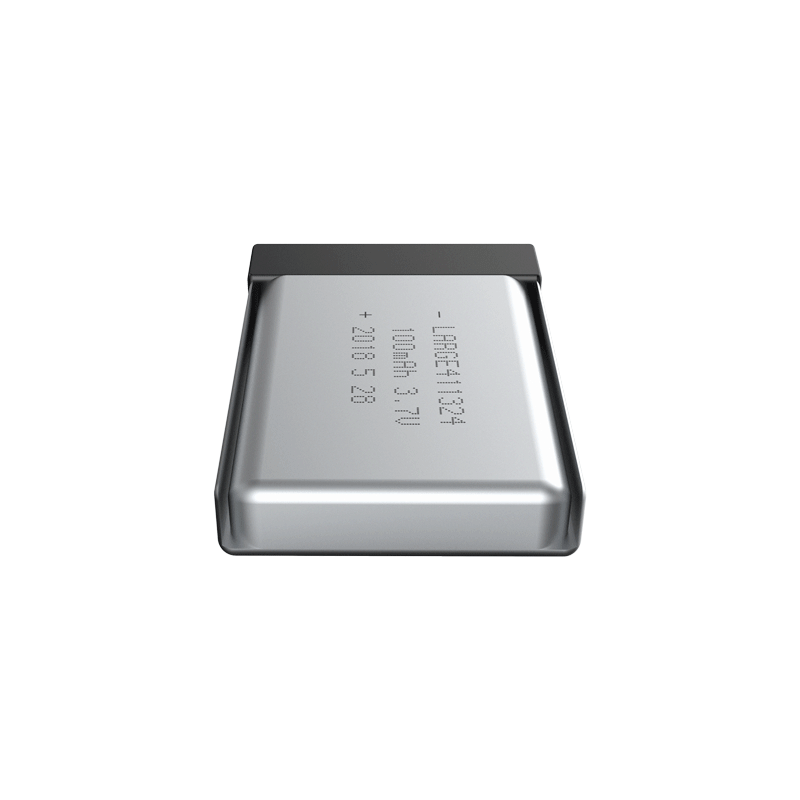

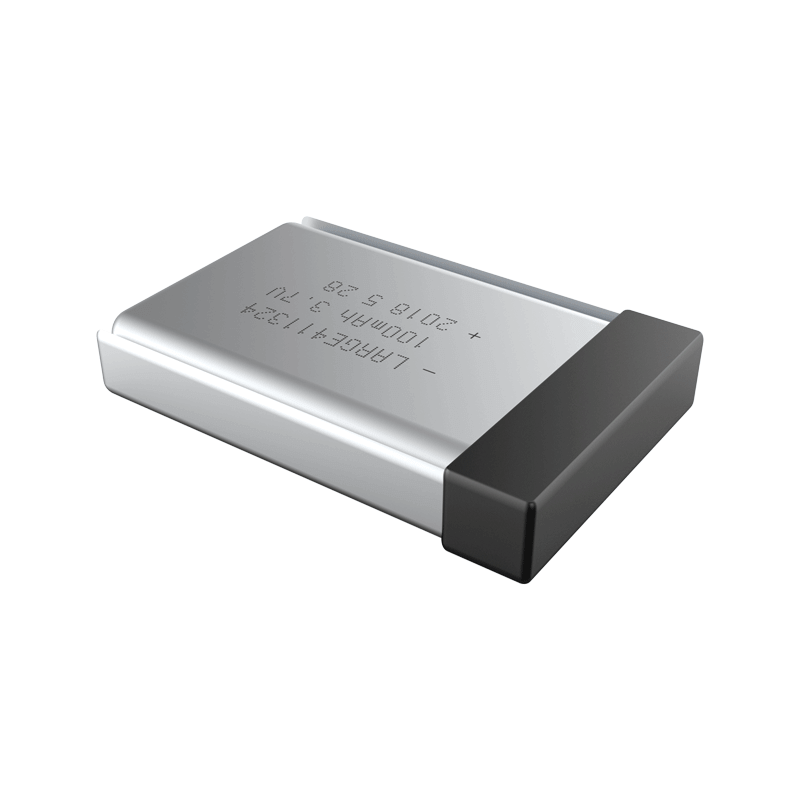

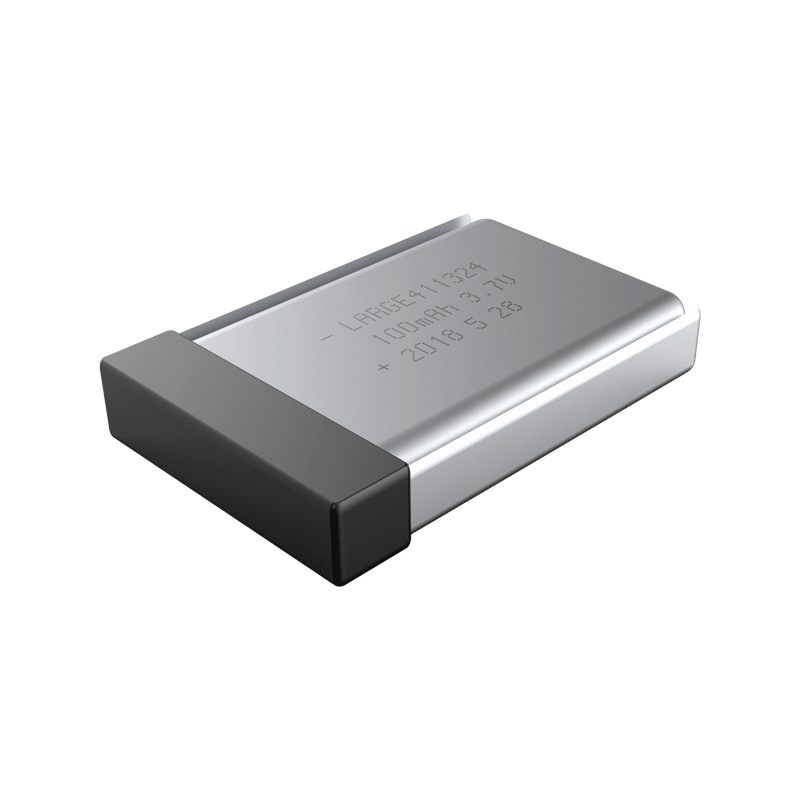

3.7V 100mAh Lithium Ion Battery for Bluetooth Earphone

3.7V 100mAh Lithium Ion Battery for Bluetooth Earphone

Product number: 04BQD025-01

Cell model：411324/3.7V/100mAh

Battery specification: 411324-1S1P/3.7V/100mAh

Nominal voltage：3.7V

Nominal capacity：100mAh

Charging voltage: 4.2V

Charging current: ≤50mA

Discharging current: 50mA

Instant discharging current: 100mA

End-off voltage: 3.0V

Internal resistance: ≤450mΩ

Battery weight: 3.5g

Product dimension: 26*13.5*4.4mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35 ℃

Battery case: high temperature tape

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: bluetooth earphone, test and control instrument
