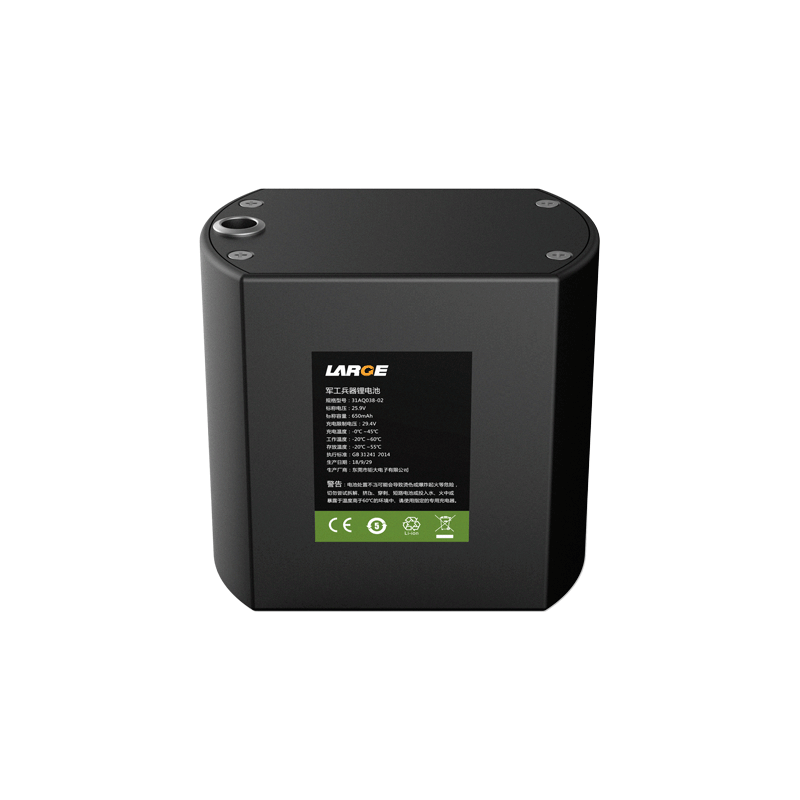

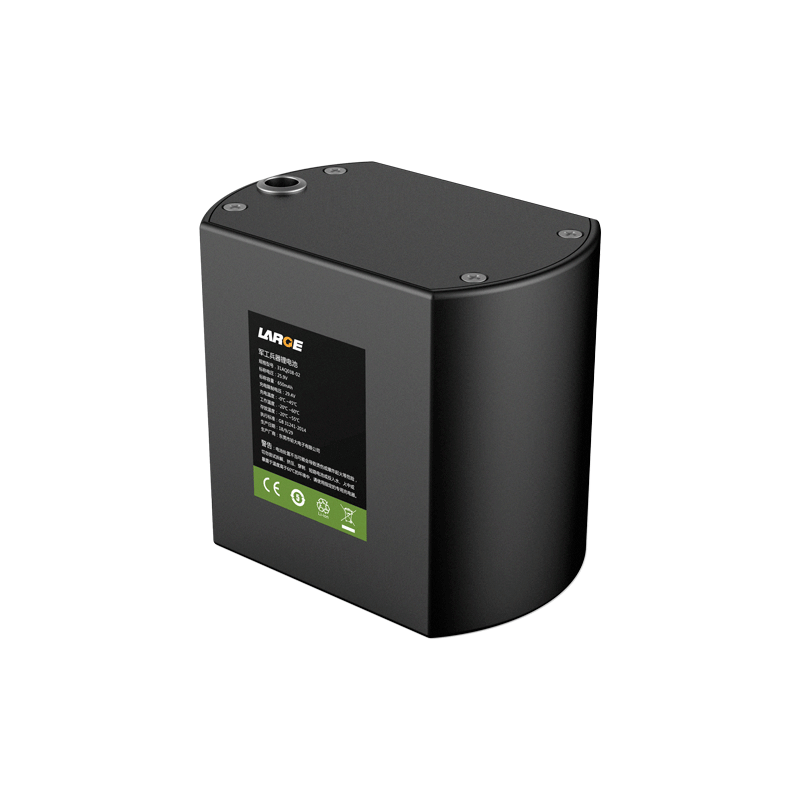

18650 25.9V 650mAh Lithium Ion Battery for Special Application

Product Detail

Product number: 31AQ038-02

Cell model:18650/3.7V/650mAh

Battery specification: 18650/7S1P/25.9V/650mAh

Nominal voltage:25.9V

Nominal capacity:650mAh

Charging voltage: 29.4V

Charging current: ≤500mA

Discharging current: 2A

Instant discharging current: 6A

End-off voltage: 19.25V

Internal resistance: ≤150mΩ

Battery weight: 500g

Product dimension: 60×55×40(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~40℃

Battery case: aluminium alloy

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: special application


Product features

Shock-resistant and waterproof: fill in the shock-resistant structure inside by aluminium alloy and withstand 100G impact force to satisfy the requirements of good security and high reliability.

Reliable connection: adopt aviation connector, which is fast, safe and reliable.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
