Custom Lithium ion Battery Pack

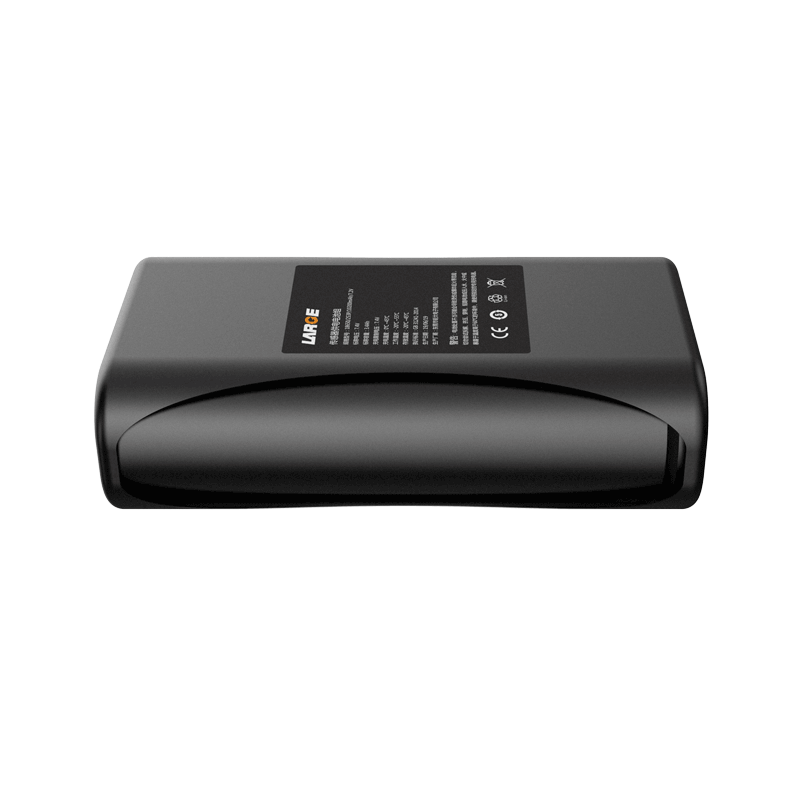

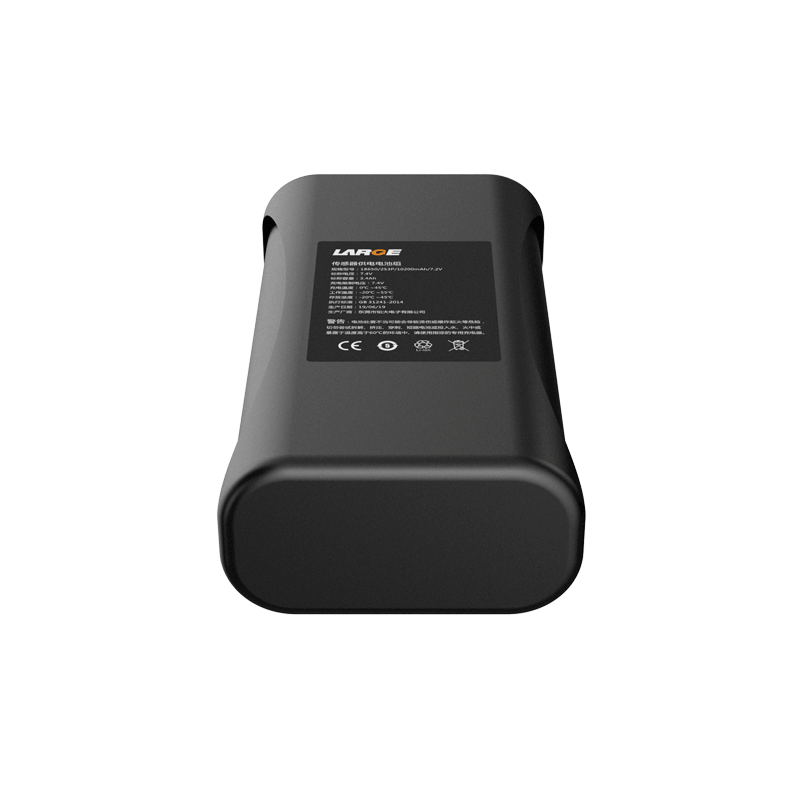

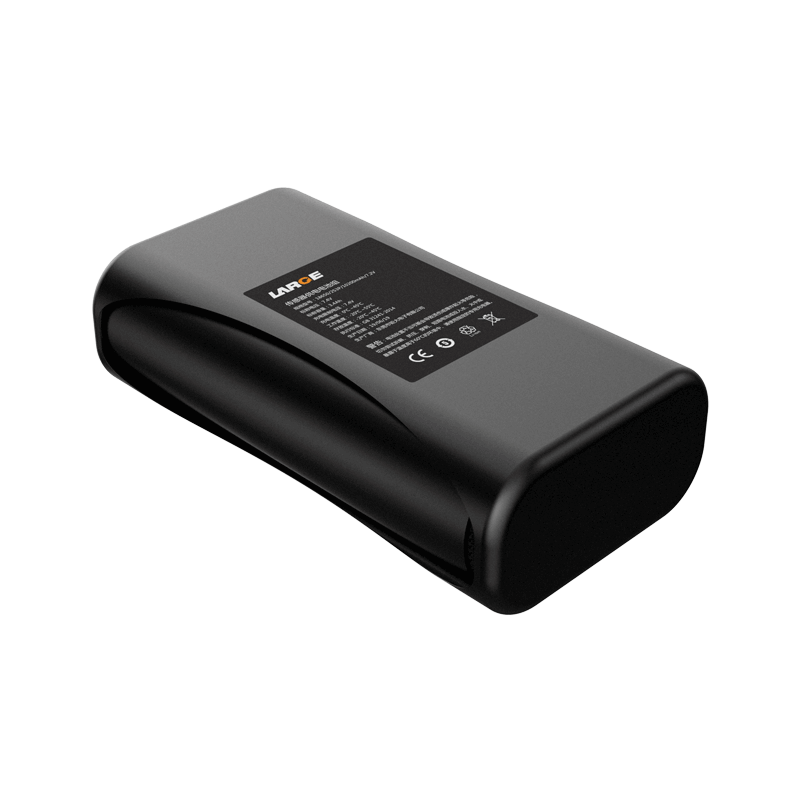

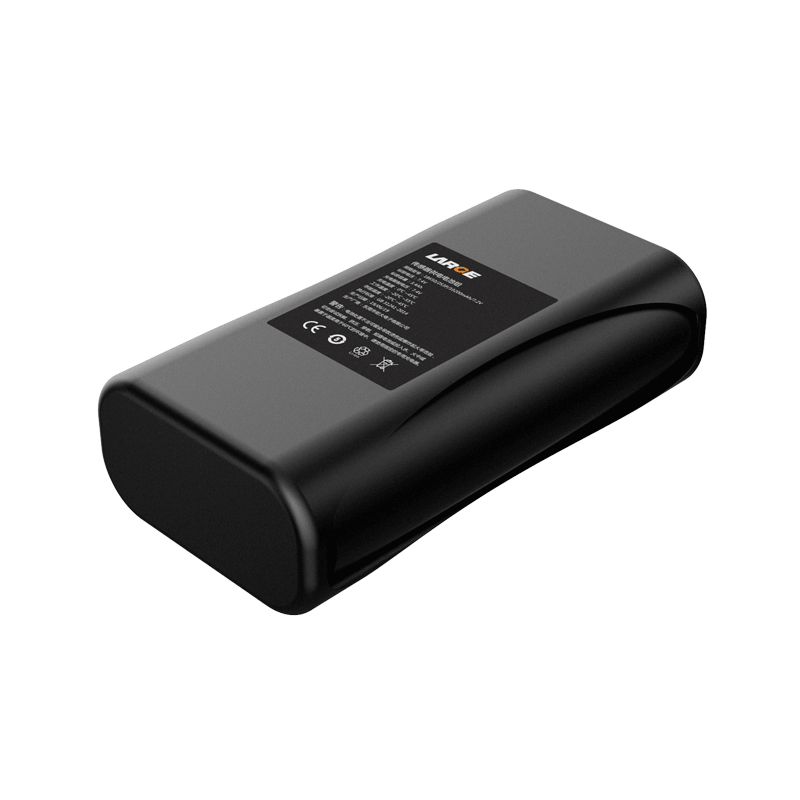

18650 7.4V 3.4Ah Lithium Ion Battery for Outdoor Monitoring

Product Detail

Product number: 41DZ005-02

Cell model:ternary 18650/3.4Ah/3.7V

Battery specification: 18650/2S3P/10200mAh/7.2V

Nominal voltage:7.4V

Nominal capacity:3.4Ah

Charging voltage: 8.4V

Charging current: ≤2A

Discharging current: 3A

Instant discharging current: 4A

End-off voltage: 5.5V

Internal resistance: ≤200mΩ

Battery weight: 150g

Product dimension: 72*39*20.5mm(MAX)

Charging temperature:0~45℃

Discharging temperature: -20~55 ℃

Storage temperature: -20~45 ℃

Temperature protection: 65℃±5℃

Battery case: industrial grade

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: outdoor monitoring

Product features

1. Current: Maximum sustainable discharge at 4A.

2. Data communication management: adopt import protective import MOS with 10KNTC, which can show the temperature changing condition and eliminate the security risks.

3. Battery characteristics: imported Samsung battery with ultra-high capacity

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
