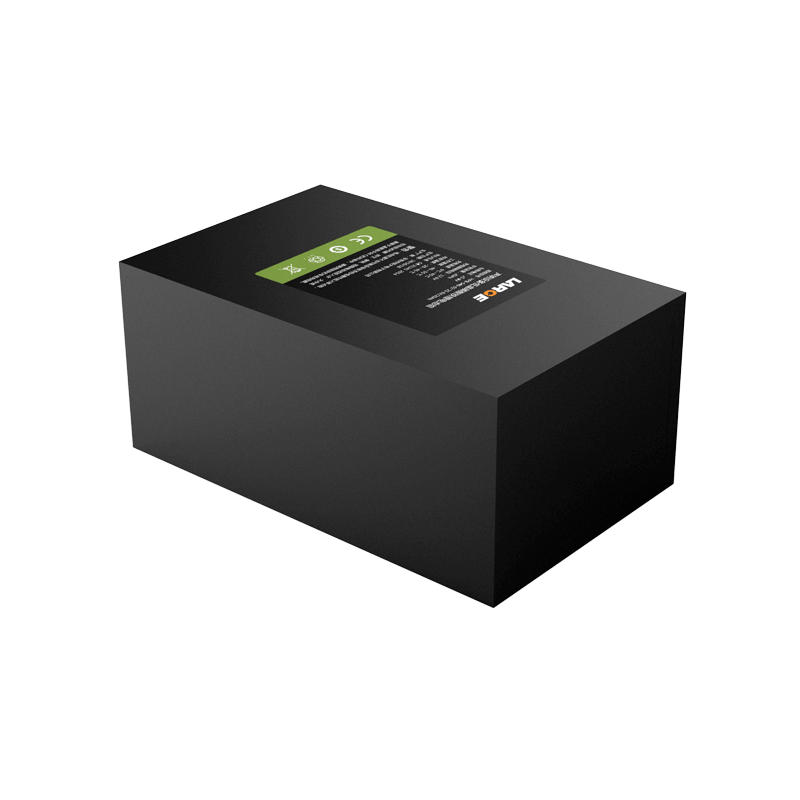

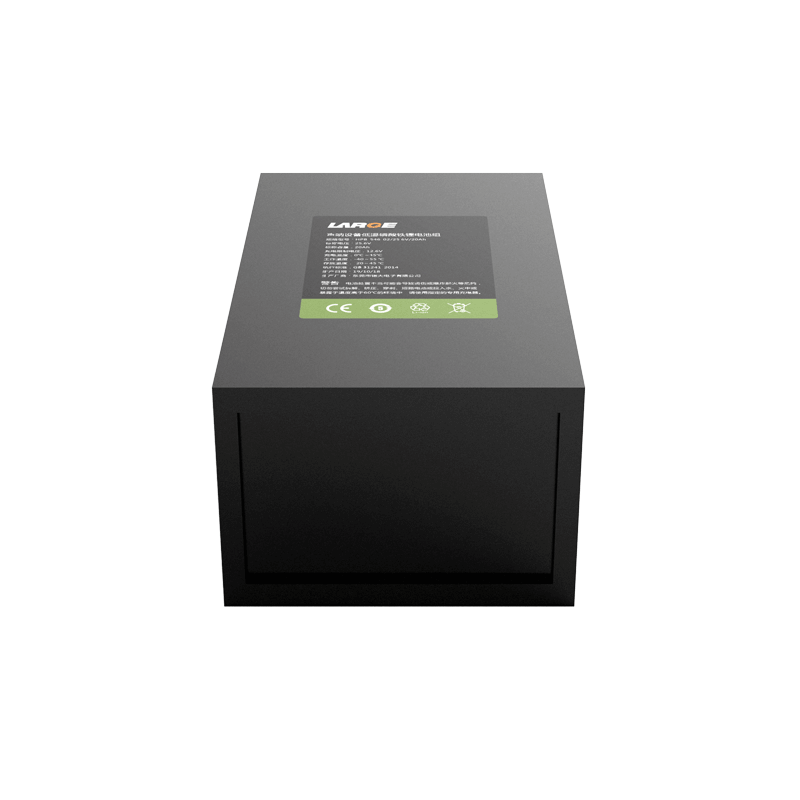

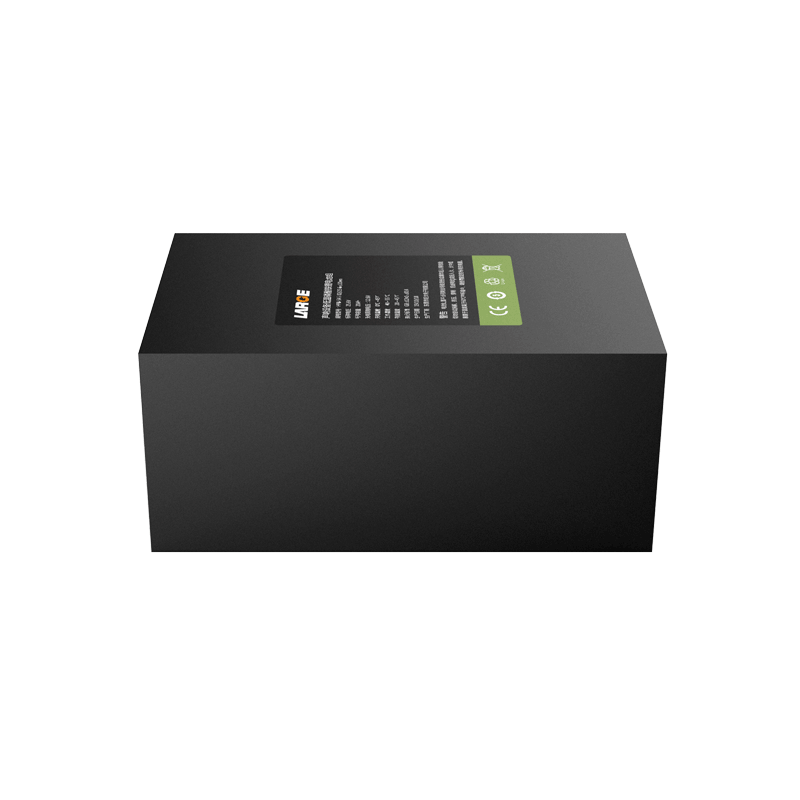

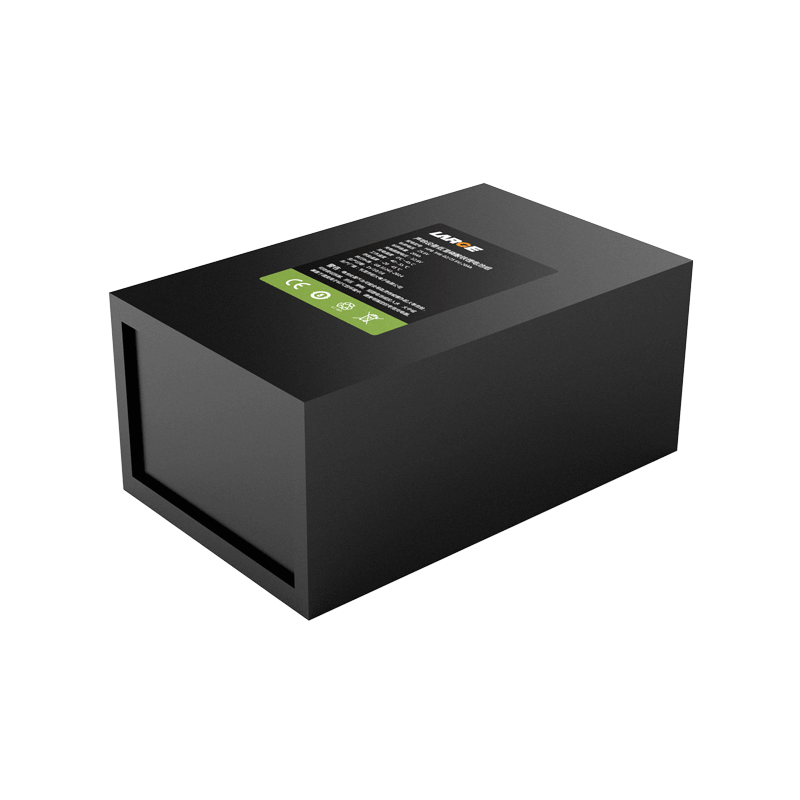

25.6V 20Ah Low Temperature Lithium Ion Battery for Sonar Device

Product Detail

Product number: 41DZ006-01

Cell model:LiFePO4 2714898/20Ah/3.2V

Battery specification: HPB-546-02(25.6V 20AH)

Nominal voltage:25.6V

Nominal capacity:20Ah

Charging voltage: 29.2V

Charging current: ≤10A

Discharging current: 20A

Instant discharging current: 30A

End-off voltage: 20V

Internal resistance: ≤200mΩ

Battery weight: 6Kg

Product dimension: 260*155*120mm

Charging temperature:0~45℃

Discharging temperature: -40~55℃

Storage temperature: -20~45℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.

Application field: marine sonar device


Product features

1. Discharge current: maximum continuous 20A

2. Data communication management: adopt imported protective chip, imported MOS with 10KNTC, which can transmit temperature changes in real time and greatly eliminate the security risks.

3. Battery characteristics: adopt Large Power special cell with ultra-low temperature discharge and high capacity, which can discharge at -40 ° c continuously and charge at -20 ° c.

4. The battery pack has long cycling life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
