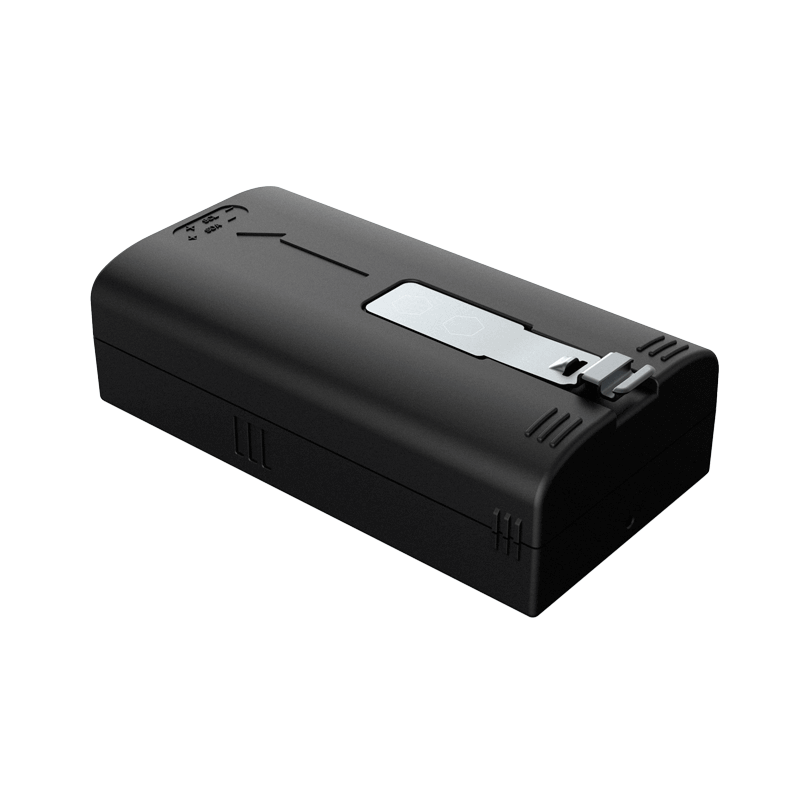

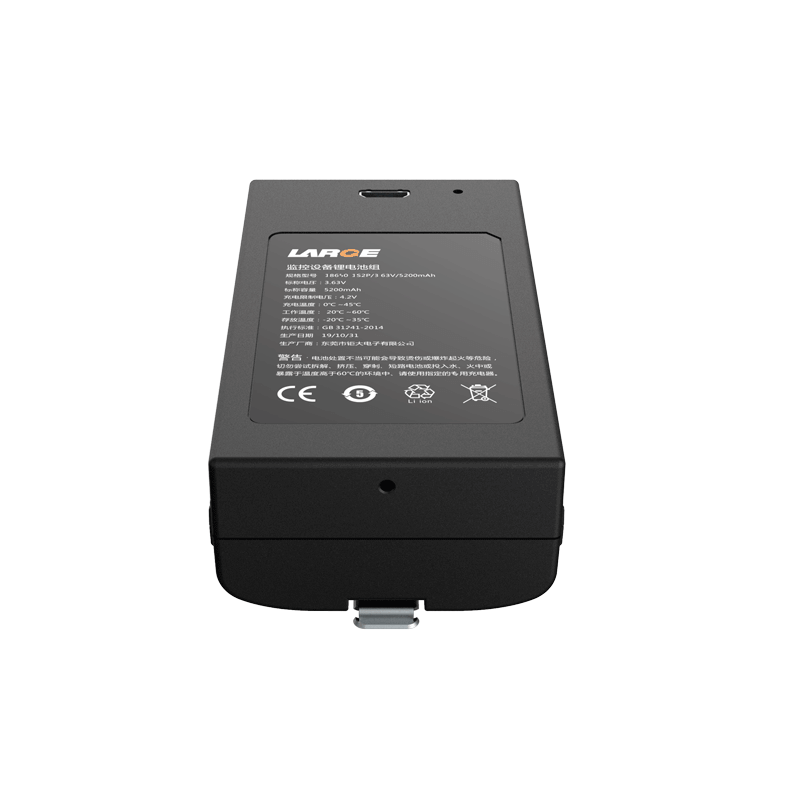

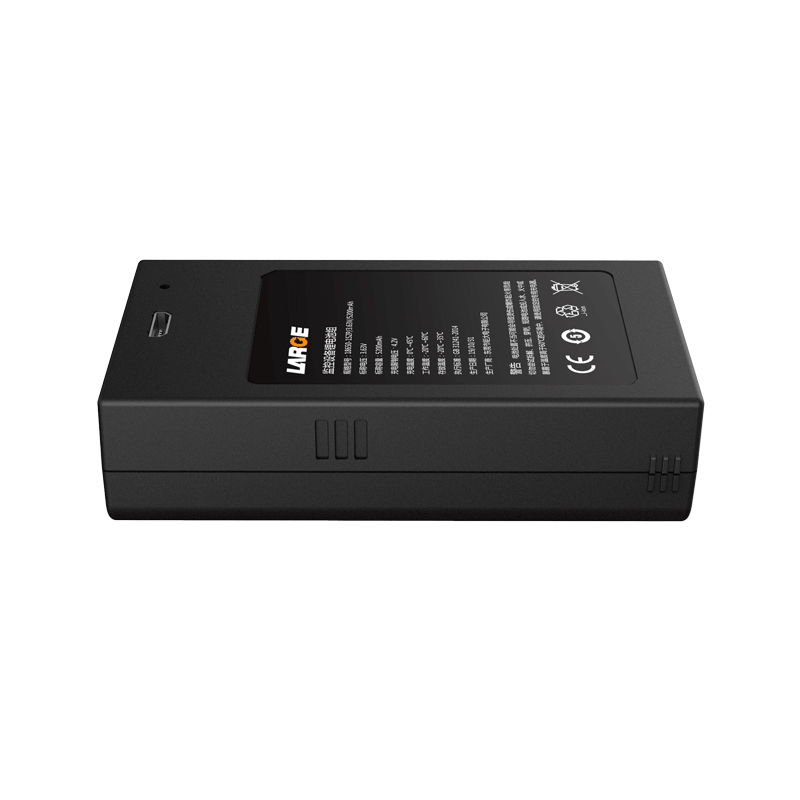

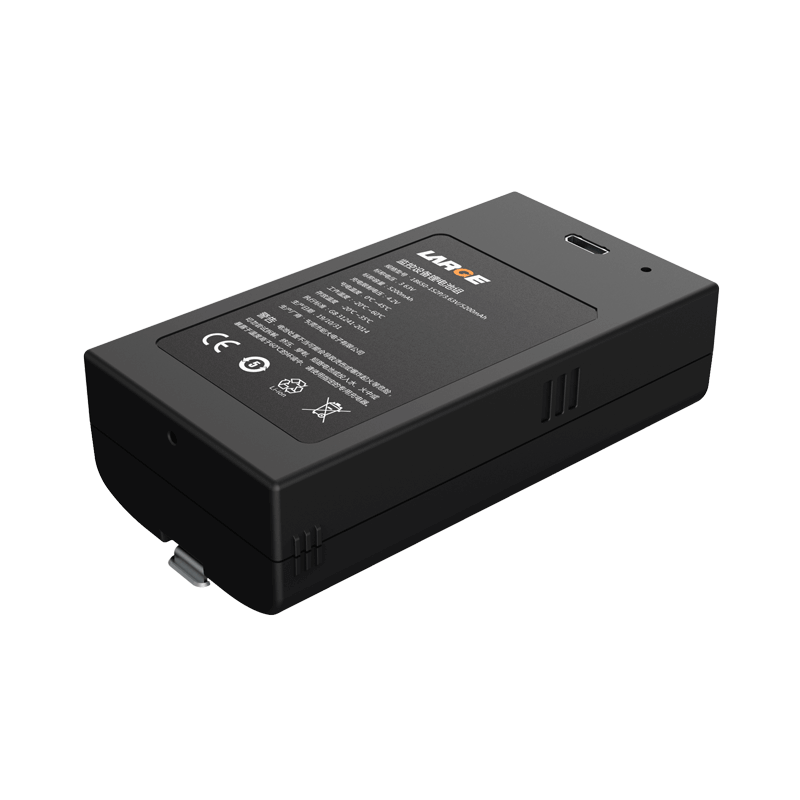

18650 3.63V 5200mAh Lithium Ion Battery Samsung Battery for Monitor Device

Product Detail

Product number: 01DQ0023-37

Cell model:18650/3.63V/2600mAh

Battery specification: 18650-1S2P/3.63V/5200mAh

Nominal voltage:3.63V

Nominal capacity:5200mAh

Charging voltage: 4.2V


Charging current: ≤2A

Discharging current: 1A

Instant discharging current: 2A

End-off voltage: 3.0V

Internal resistance: ≤250mΩ

Battery weight: 0.13Kg

Product dimension: 78.1*42.3*22.2mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35℃

Battery case: ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: portable devices

Product features

Data communication management: adopt TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

The battery pack has good security, nice performance and long cycling life.

The battery pack has long cycling life, which conforms to the principle of low carbon, energy conservation and environmental protection.
