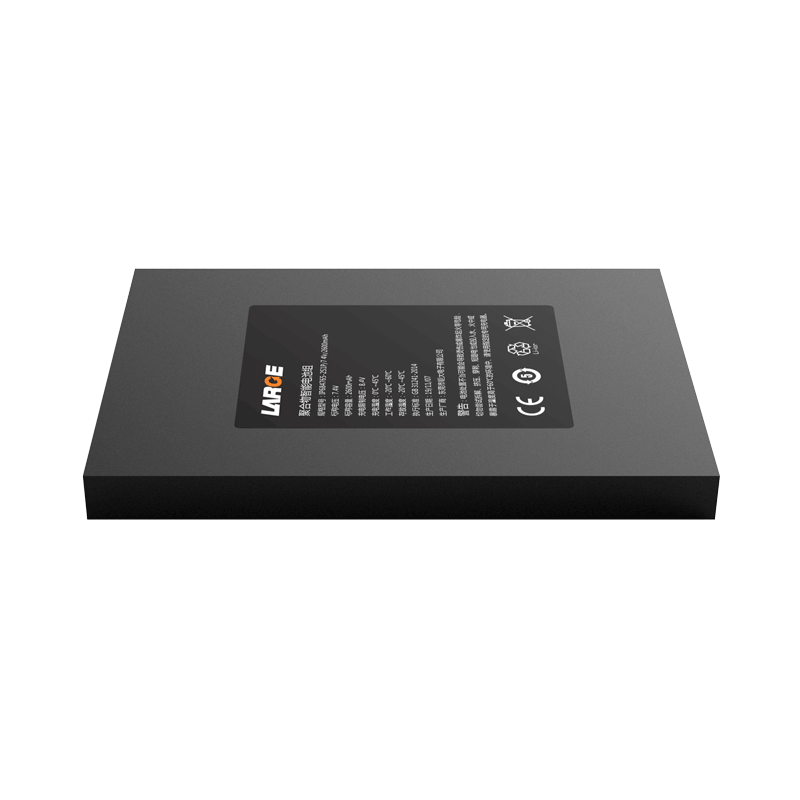

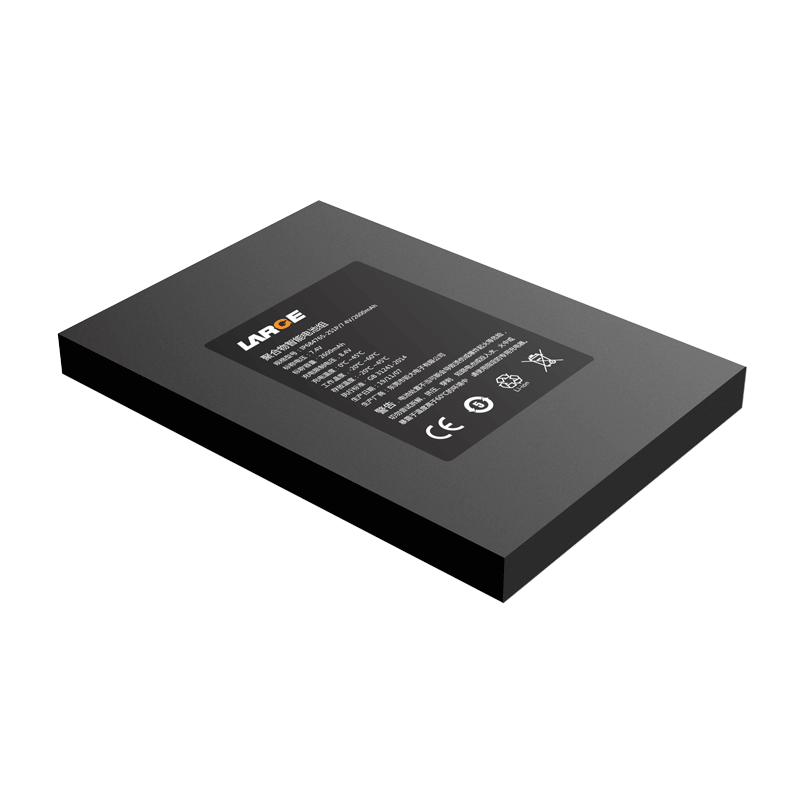

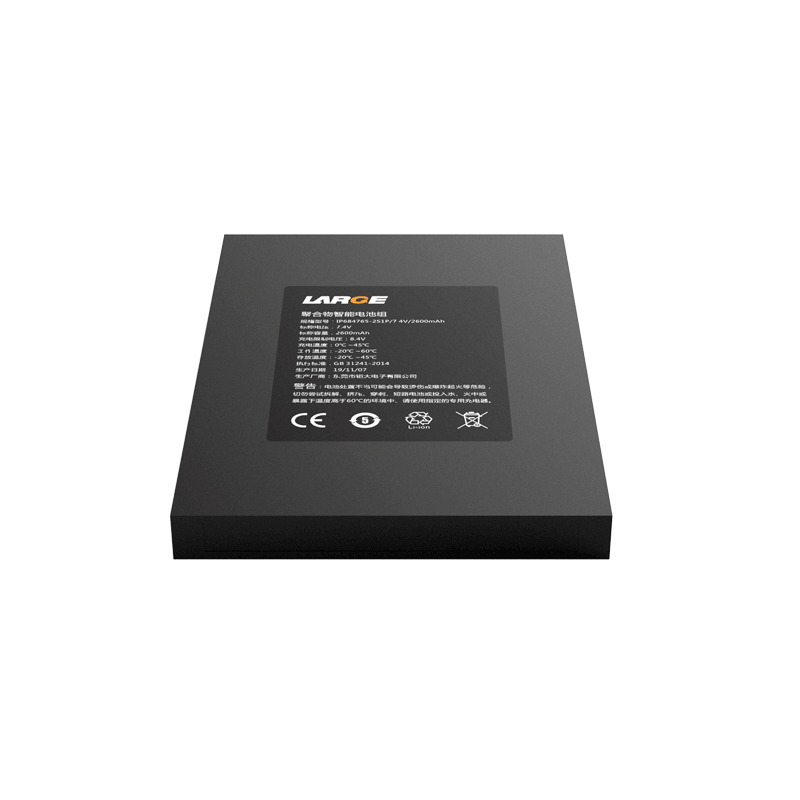

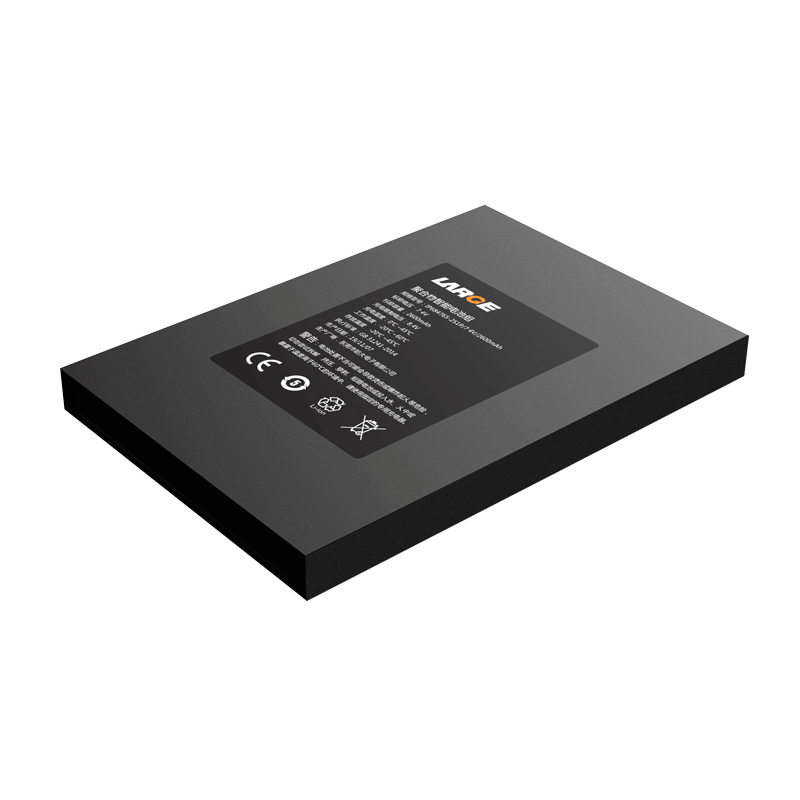

IP684765 7.2V 2600mAh Lithium Polymer Battery Smart Battery for Portable Medical Device

Product Detail

Product number: 37DZ056-01

Cell model:IP684765/3.7V/2600mAh

Battery specification: IP684765-2S1P/7.4V/2600mAh

Nominal voltage:7.4V

Nominal capacity:2600mAh

Charging voltage: 8.4V

Charging current: ≤1.3A

Discharging current: 2.6A

Instant discharging current: 3-6A

End-off voltage: 6V

Internal resistance: ≤250mΩ

Battery weight: 120g

Product dimension: 8.2×67×120mm

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: --20~45℃

Battery case: PVC encapsulation

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, SMBUS communication, etc.

Application field: portable medical device


Product features

It has small power consumption.

It has smart coulometer with SMBUS communication.

The battery pack has good security and long cycling life.

The battery pack has long cycling life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
