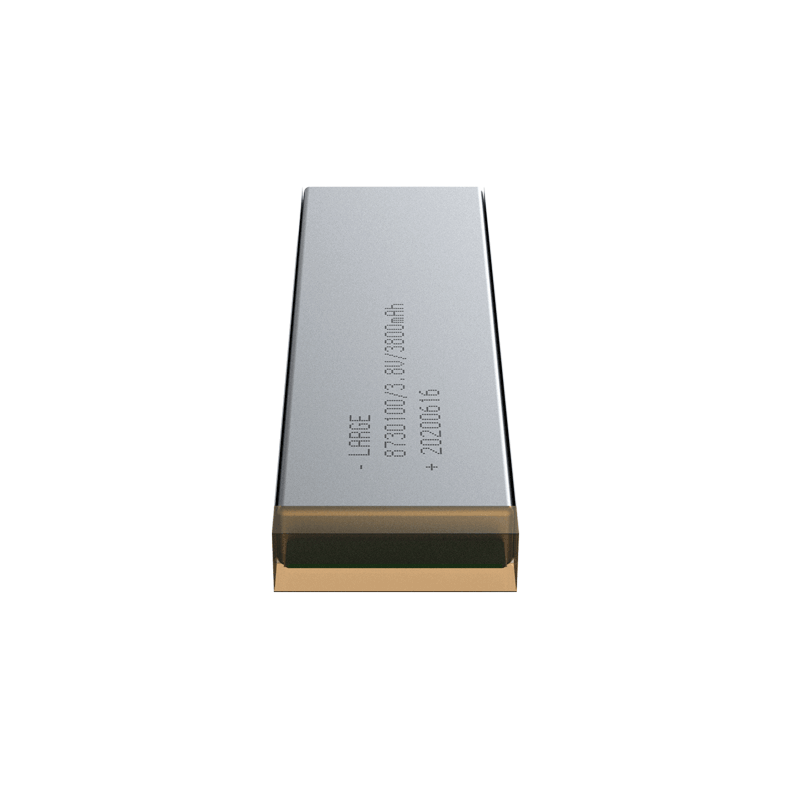

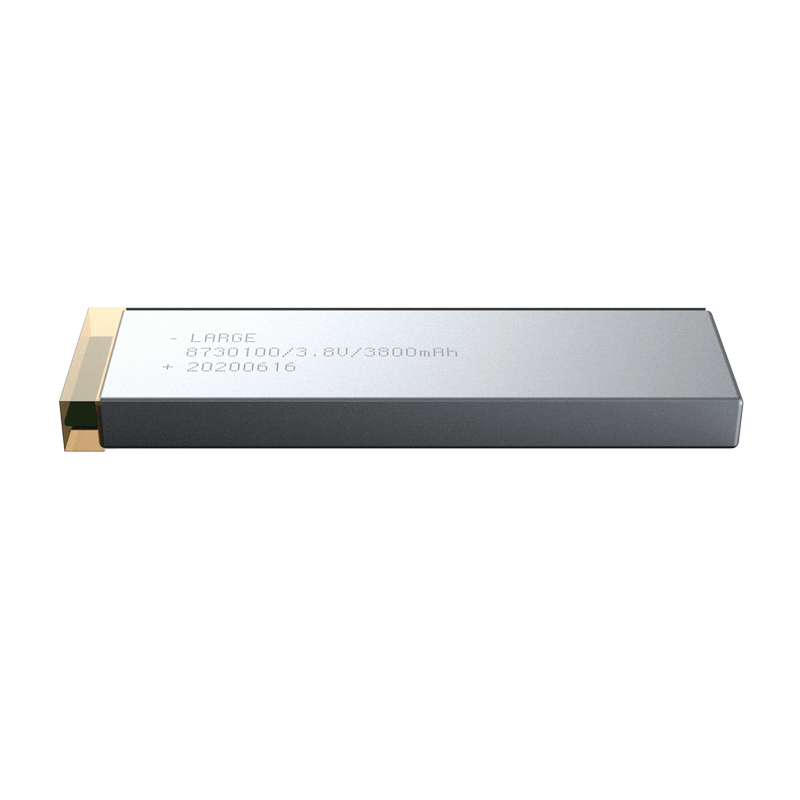

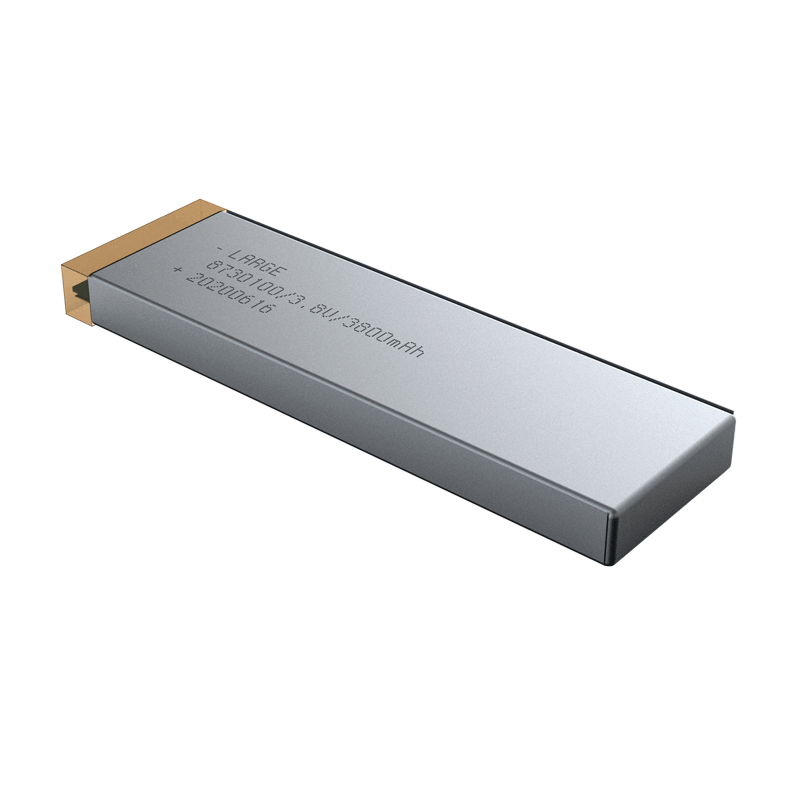

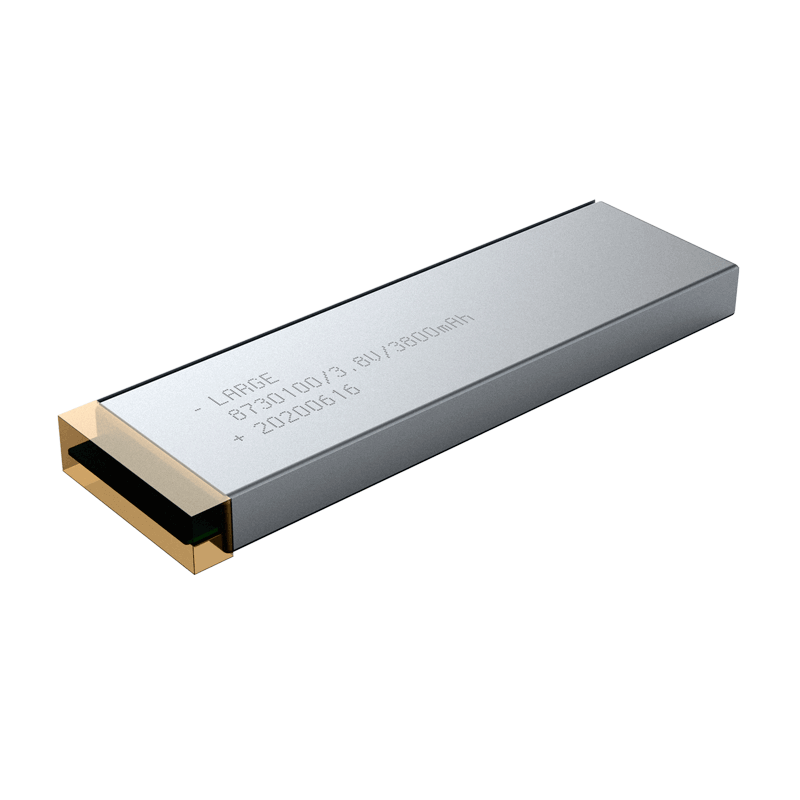

3.8V 3800mAh Lithium Polymer Battery for Medical Magnifying Glass

Product Detail

Product number: 41DZ003-07

Cell model:8730100-3.8V-3800mAh

Battery specification: 8730100-1S1P-3800mAh -3.8V

Nominal voltage:3.8V

Nominal capacity:3800mAh

Charging voltage: 4.35V

Charging current: ≤4.5A

Discharging current: 4A

Instant discharging current: 4A

End-off voltage: 3V

Internal resistance: ≤150mΩ

Battery weight: 150g

Product dimension: 103×30×8.75mm(max)

Charging temperature:0~45℃

Discharging temperature: -10~55 ℃

Storage temperature: -20~45℃

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection, etc.

Application field: medical equipment, magnifying glass


Product features

1. Current: maximum 20A discharge

2. Data communication management: use imported software management chip, imported MOS, 10KNTC, and temperature changes can be transmitted in real time to eliminate the security risks.

3. Cell characteristics: use self-developed ultra-large capacity polymer cell.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
