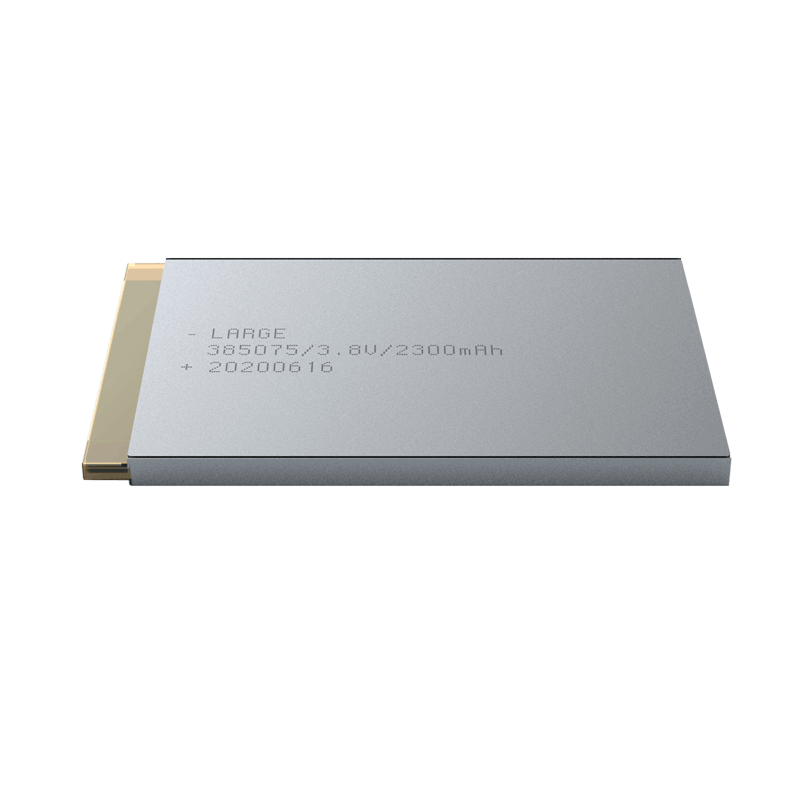

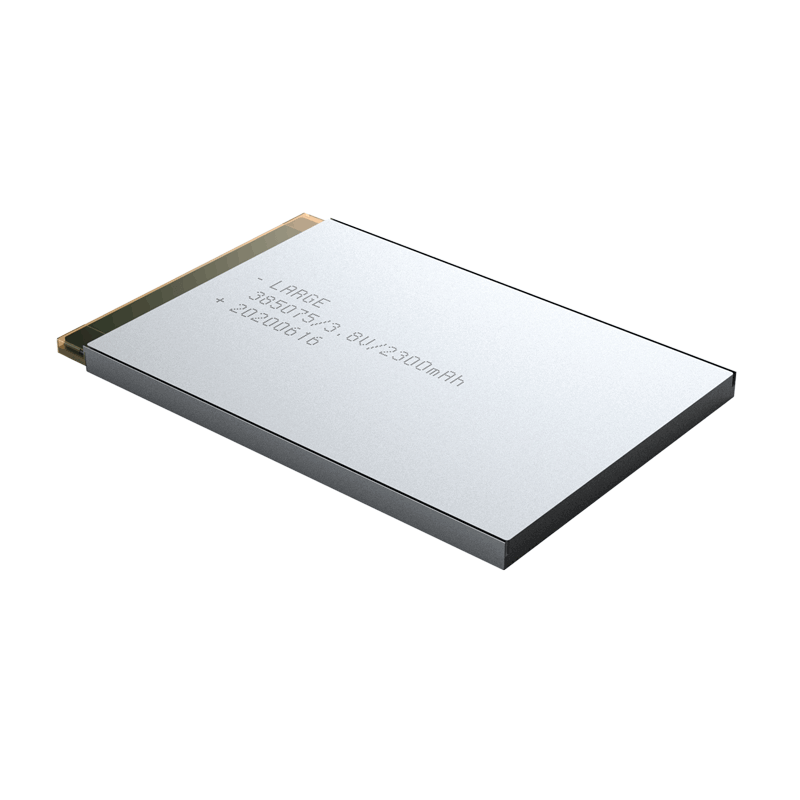

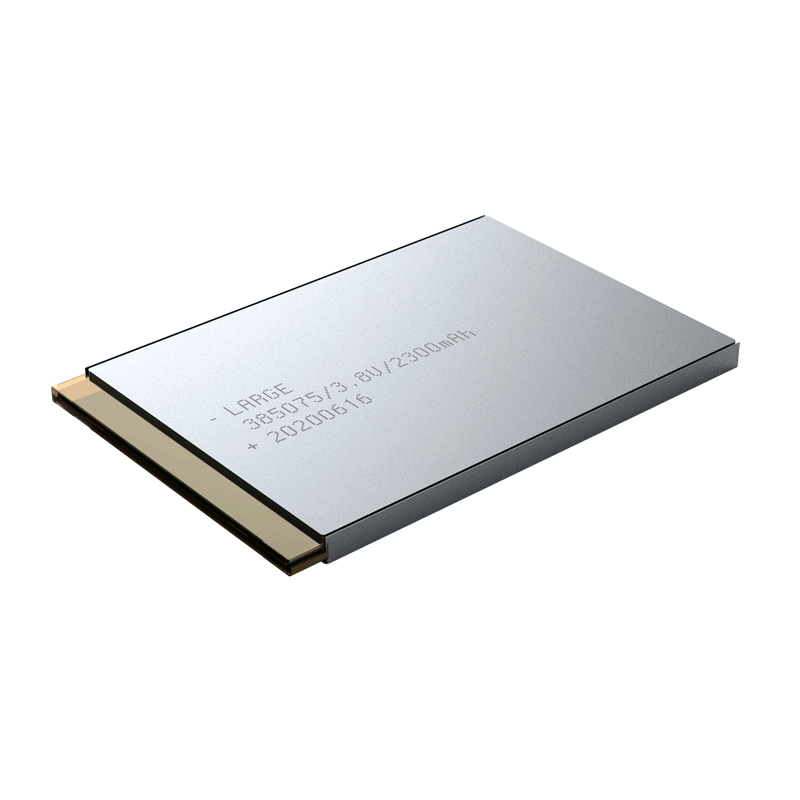

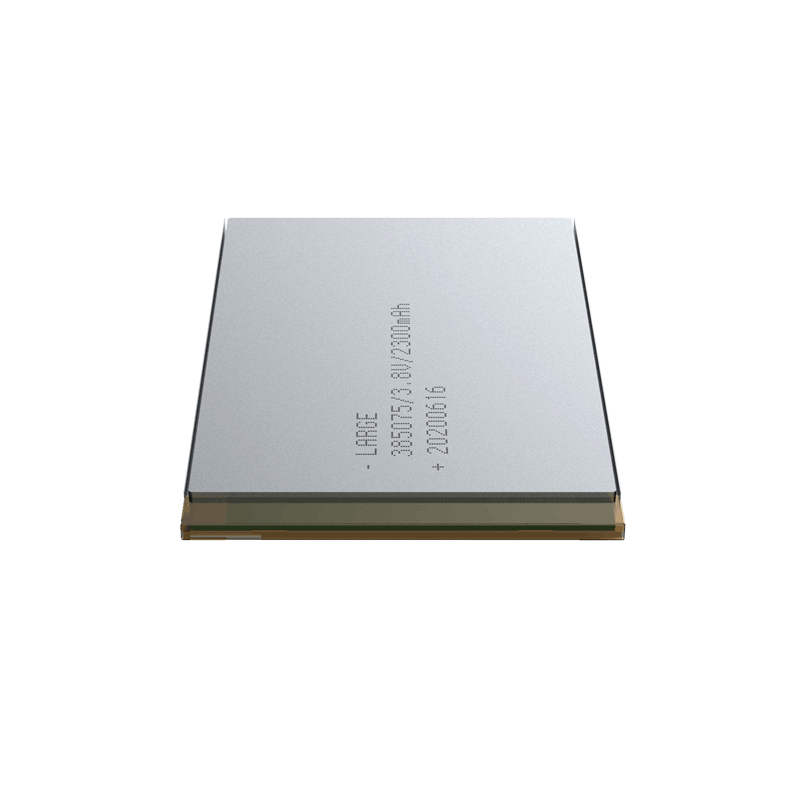

3.8V 2300mAh Lithium Polymer Battery for Anaesthetic Laryngoscope

3.8V 2300mAh Lithium Polymer Battery for Anaesthetic Laryngoscope
3.8V 2300mAh Lithium Polymer Battery for Anaesthetic Laryngoscope
3.8V 2300mAh Lithium Polymer Battery for Anaesthetic Laryngoscope

Product Detail

Product number: 04DQ0082-07

Cell model:385075/3.8V/2300mAh

Battery specification: 385075-1S1P/3.8V/2300mAh

Nominal voltage:3.8V

Nominal capacity:2300mAh

Charging voltage: 4.35V

Charging current: ≤1.2A

Discharging current: 0.5A

Instant discharging current: 2.3A

End-off voltage: 3.0V

Internal resistance: ≤200mΩ

Battery weight: 0.04Kg

Product dimension: 77*50*4mm(Max)

Charging temperature:0~45℃

Discharging temperature: -10~60℃

Storage temperature: -20~35℃

Battery case: flexible package

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection, etc.

Application field: medical equipment

*
*
*
*
*
