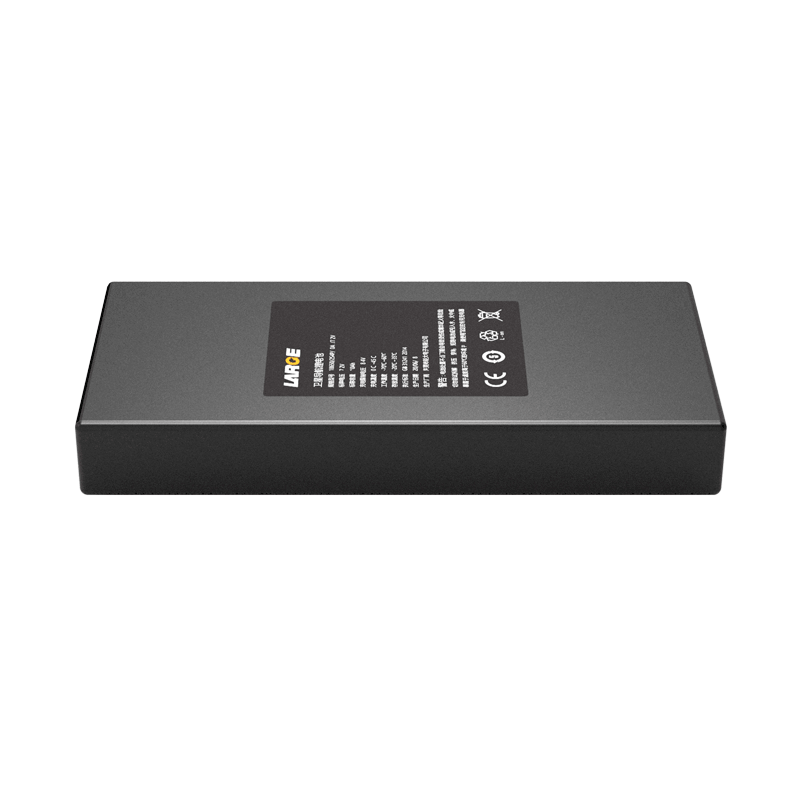

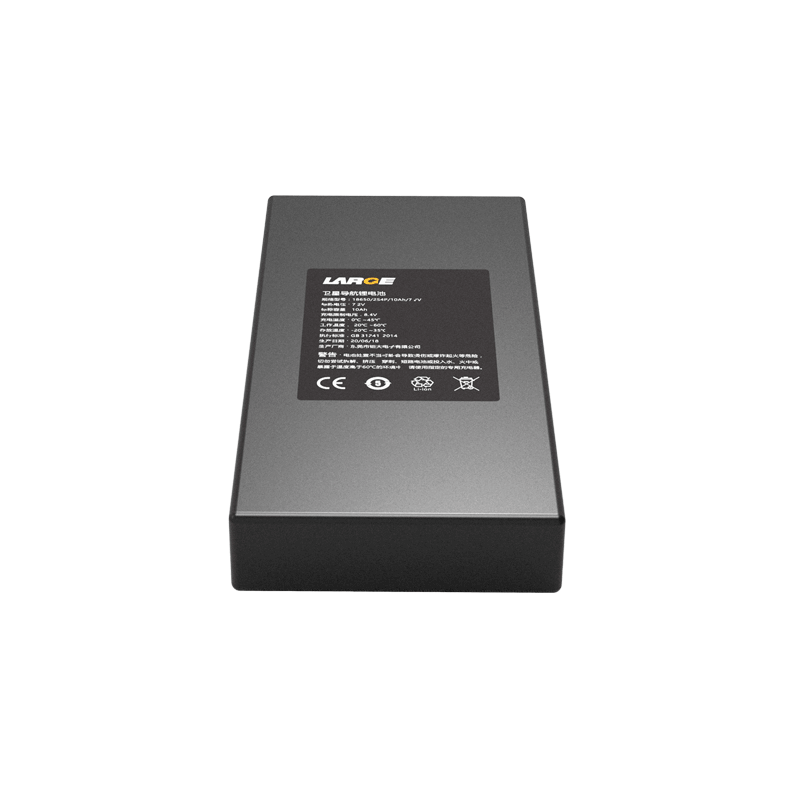

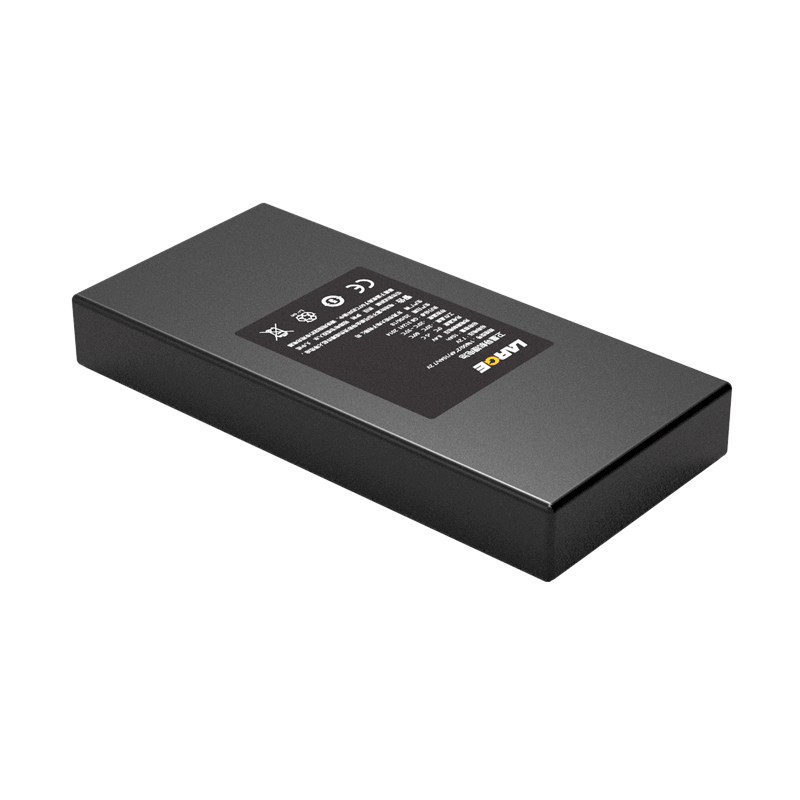

18650 7.2V 10Ah Samsung Battery Ternary Battery for Satellite Navigation With SMBUS Communication

Product Detail

Product number: 01DQ0122-02

Cell model:18650/2500mAh/3.6V

Battery specification: 18650/7.2V/10Ah/2S4P

Nominal voltage:7.2V

Nominal capacity:10Ah

Charging voltage: 8.4V

Charging current: ≤4A

Discharging current: 5A

Instant discharging current: 10A

End-off voltage: 5.5V

Internal resistance: ≤110mΩ

Battery weight: 380g

Product dimension: 164*78*24mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35℃

Battery case: blue PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection, etc.

Application field: satellite navigation


Product features

1. Current: Discharge maximum 5A.

2. Data communication management: use imported software management chip, SMBUS communication function, accurate data transmission, precise temperature control, so as to eliminate security risks.

3. Battery characteristics: Use an imported single cell with 2500mAh capacity, which is safe and reliable.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
