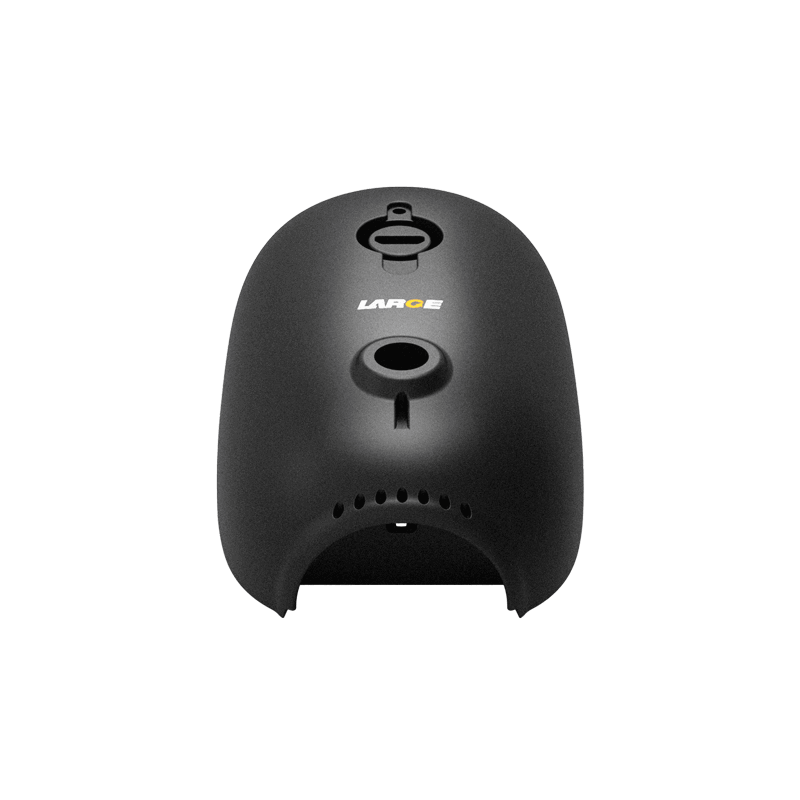

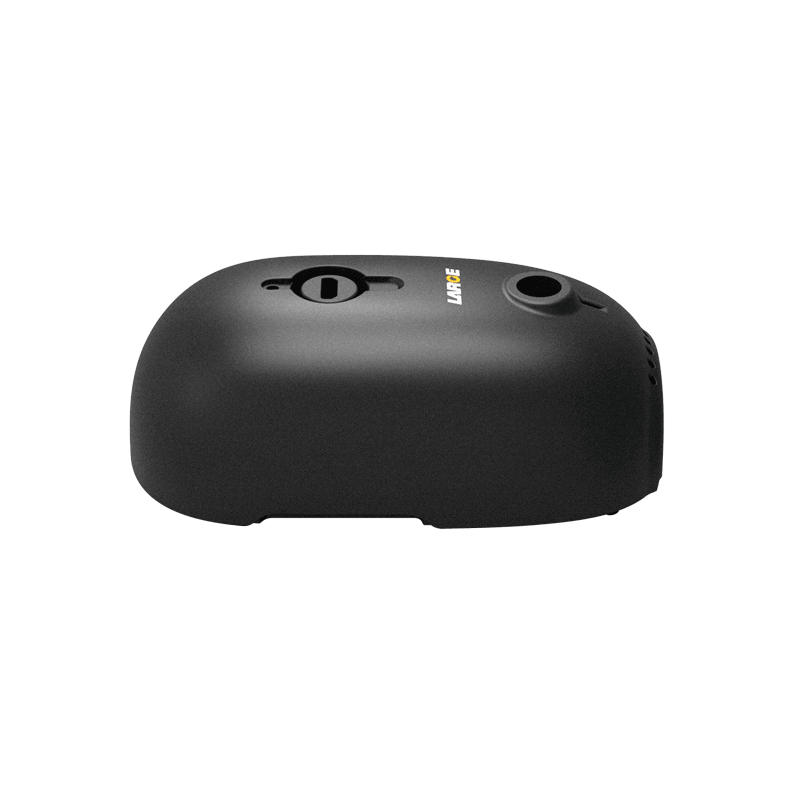

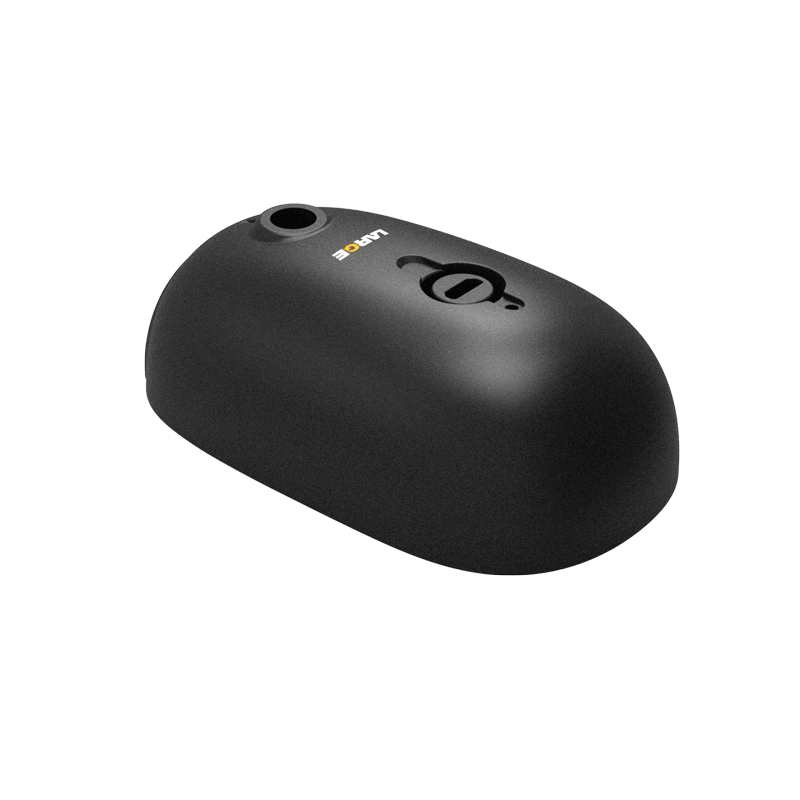

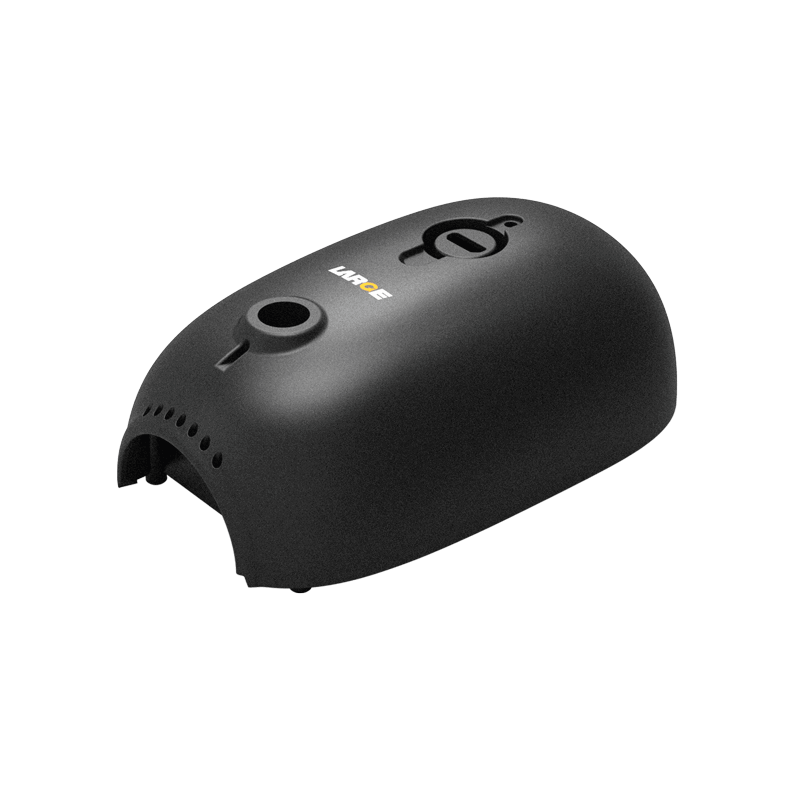

3.7V 5200mAh Lithium Ion Battery Pack
Product Number:
01DQ0040-13
Nominal voltage:
3.7V
Nominal capacity:
5200mAh
Battery Configuration:
18650-1S2P
Dimension:
32.44 × 57.86 × 95.68 mm
Application:
Monitoring Equipment
High Capacity, Long Endurance, Stable Output
Product Overview
Electrical Specifications
| Property | Parameter |
| Product Number | 01DQ0040-13 |
| Cell Model | 18650/2600mAh/3.7V |
| Battery Configuration | 18650-1S2P |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 5200mAh |
| Rated Energy | 19.24Wh |
| Charging Voltage | 5V → 4.2V (during charging) |
| Discharge Cut-off Voltage | 3.0V |
| Charging Current | ≤2.5A |
| Discharge Current | 2.5A (9A peak) |
| Internal Resistance | ≤250mΩ |
Mechanical & Environmental
| Property | Parameter |
| Charging Temperature | 0～45℃ |
| Discharge Temperature | -20～60℃ |
| Storage Temperature | -20～25℃ |
| Dimensions | 32.44 × 57.86 × 95.68 mm |
| Weight | 130g |
| Material | ABS+PC |
| Protection System | Power calculation, short circuit protection, overcharge protection, over-discharge protection, over-current protection, USB charging |
Application Background
This battery solution is specifically designed for security monitoring equipment, including indoor and outdoor surveillance cameras, wireless cameras, and mobile inspection devices.
These systems typically require 24/7 standby operation and stable power supply during night vision, image capture, and data transmission, placing high demands on battery runtime, low-temperature performance, and output stability.
Project Challenges
- The device requires continuous operation with 24/7 stable power supply
- Night infrared monitoring and data transmission cause temporary power fluctuations
- Outdoor environments are complex, requiring reliable operation at low temperatures down to -20°C
- Limited internal space places strict constraints on battery size and weight
- Long-term charge-discharge cycles demand high consistency and cycle life
Customized Battery Solution
- High-capacity single-cell design: 5200mAh output at 3.7V platform, extending continuous operation time
- Intelligent power management: integrated multi-protection system ensures stable voltage and current control
- Wide-temperature performance: supports discharge from -20°C to 60°C for harsh outdoor environments
- Compact structural design: high energy density in a small footprint, suitable for space-limited devices
- High discharge capability: supports 2.5A continuous and 9A peak discharge for dynamic load demands
Application Results
- Enables stable 24/7 operation of monitoring equipment
- Improved power stability in low-temperature environments, reducing system shutdown risk
- More stable output under high-load scenarios (night vision / capture), improving reliability by over 20%
- Optimized energy efficiency and structure, extending overall service life and maintenance cycle
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
