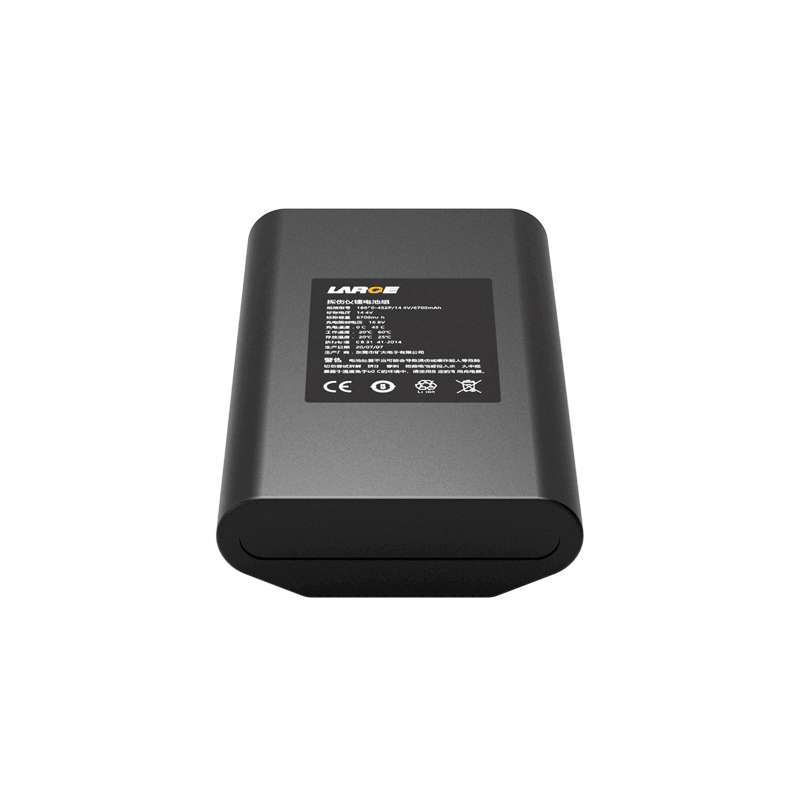

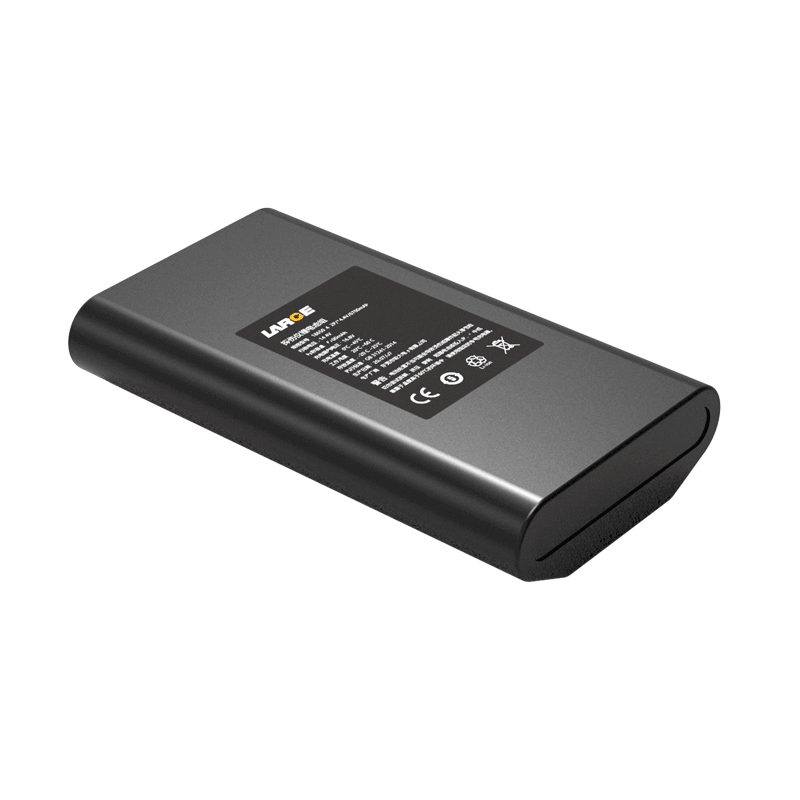

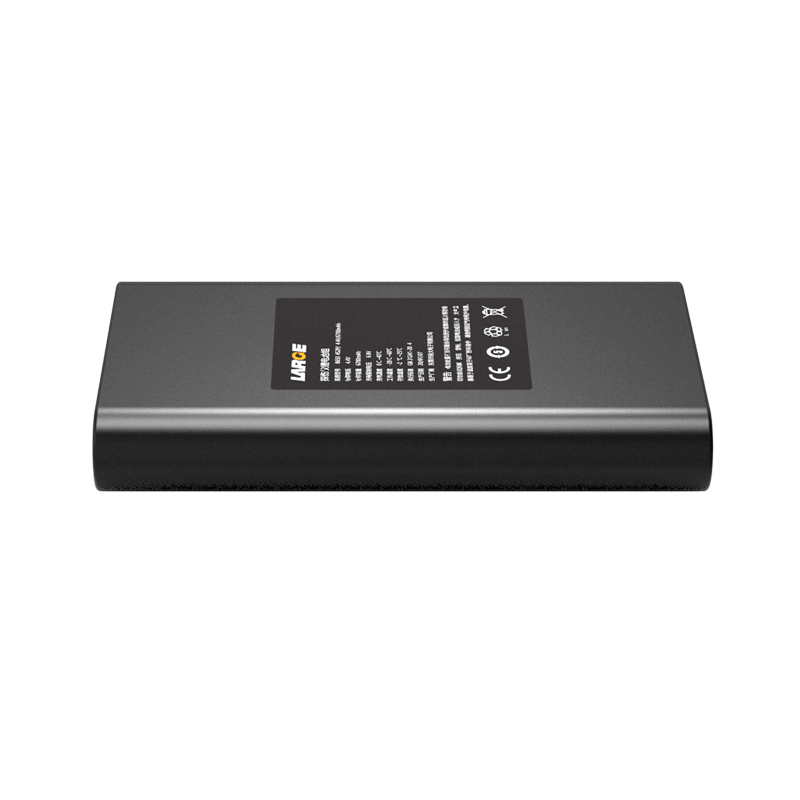

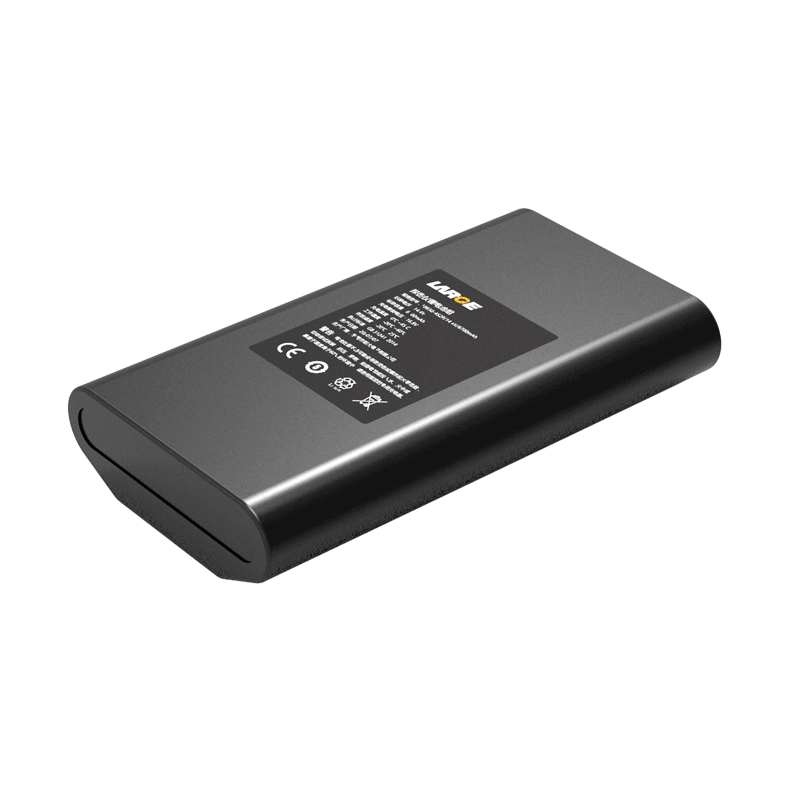

18650 14.4V 6700mAh Samsung Lithium Battery Pack For Flaw Detector

Product Detail

Product number: 05DQ0040-02

Cell model:18650/3350mAh/3.6V

Battery specification: 18650-4S2P/14.4V/6700mAh

Product dimension: 132*75.5*24.5mm(Max)

Nominal voltage:14.4V

Nominal capacity:6700mAh

Charging voltage: 16.8V

Charging current: ≤3A

Discharging current:6A

Instant discharging current: 6A

End-off voltage: 10.8V

Internal resistance: ≤350mΩ

Battery weight: 450g

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35℃

Battery case: blue PVC heat shrink film

Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection, temperature protection, over current protection, ESD protection, etc.

Application field: portable ultrasonic exploration equipment, portable flaw detection equipment


Product features

1.Blue PVC heat shrinkable film package is simple, reliable and easy to install.

2.Outlet of connector plug: xt30 plug output mode is adopted to increase the conductive reliability of the plug, and the gold-plated hardware terminal output mode is used to increase the conductive reliability.

3.Battery protection management: It adopts special lithium battery protection chip with high stability, high precision monitoring, precise control and temperature protection, so as to eliminate potential safety hazards to the maximum extent.

4.The battery pack has good security, nice discharge performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
