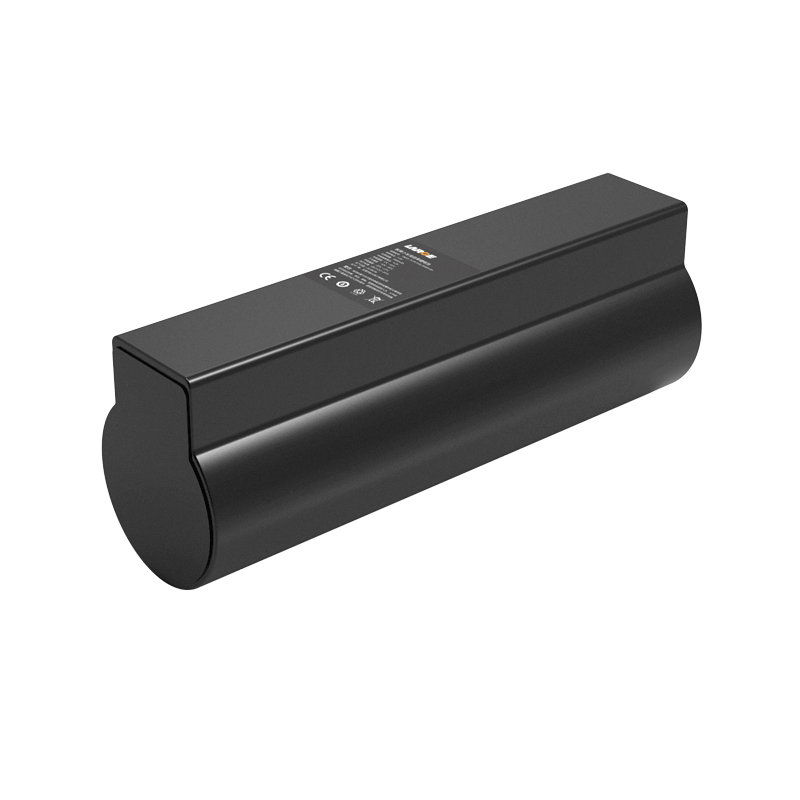

3.6V 3000mAh Samsung 18650 High Rate Lithium Battery For Educational Programming Car

3.6V 3000mAh Samsung 18650 High Rate Lithium Battery For Educational Programming Car
3.6V 3000mAh Samsung 18650 High Rate Lithium Battery For Educational Programming Car
3.6V 3000mAh Samsung 18650 High Rate Lithium Battery For Educational Programming Car
3.6V 3000mAh Samsung 18650 High Rate Lithium Battery For Educational Programming Car

Product Detail

Product number: 36AQ299-04

Cell model:18650/3.6V/3000mAh

Battery specification: 18650-1S1P/3.6V/3000mAh

Nominal voltage:3.6V

Nominal capacity:3Ah

Charging voltage: 4.2V

Charging current: ≤2A

Discharging current: 3A

Instant discharging current: 20A,20ms

End-off voltage: 2.8V

Internal resistance: ≤100mΩ

Battery weight: 60g

Product dimension: φ25*68(mm)

Charging temperature:0~45℃

Discharging temperature: -10~60℃

Storage temperature: -20~23℃ (less than 12 month)

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection, over current protection, etc.

Application field: micro-robot, educational programming car


Product features

1.Imported high rate cell: The internal resistance and self discharge of the battery are small.

2.The battery pack has good security and high reliability.

3.Special shape design: The battery can be customized for various special structures, and the battery shell is removable and easy to replace.

4.The battery pack can support 5C current discharge to meet the demand of high current discharge products.

*
*
*
