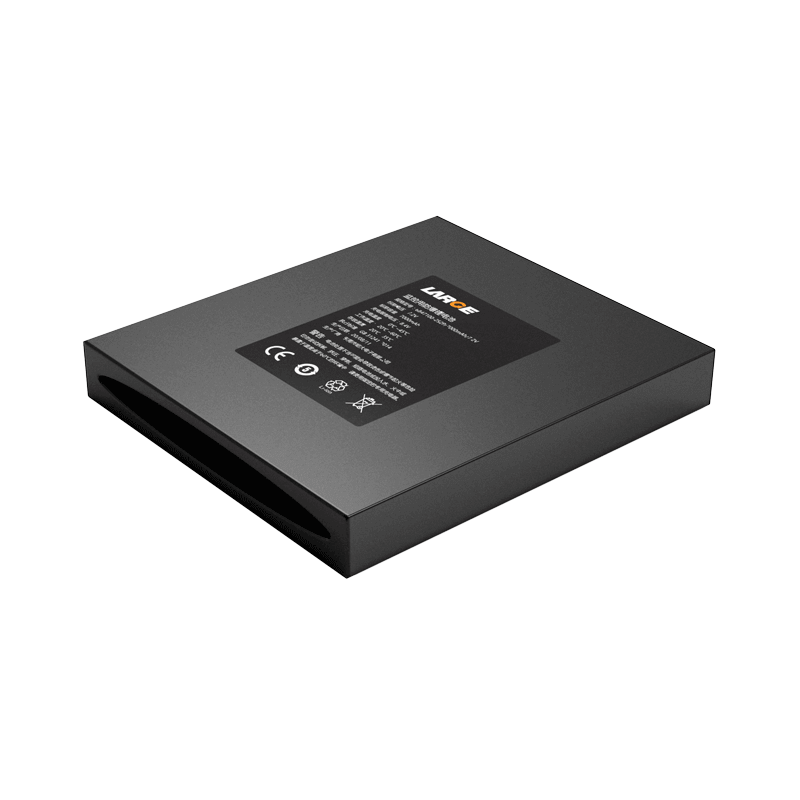

7.2V 7000mAh Explosion Proof Lithium Battery For Monitoring Equipment

Product Detail

Product number: 40AQ003-01
Cell model:6847100-3500mAh-3.6V
Battery specification: 6847100-2S2P-7000mAh-7.2V
Product dimension: 115*100*20mm(Max)
Nominal voltage:7.2V
Nominal capacity:7000mAh
Charging voltage: 8.4V
Charging current: ≤1.2A
Discharging current: ≤1.9A
End-off voltage: 6.0V
Internal resistance: ≤180mΩ
Battery weight: 360g
Charging temperature:0~45℃
Discharging temperature: -20~60℃
Storage temperature: -20~35℃
Battery case: blue PVC heat shrinkable film
Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection, over current protection, ESD protection, etc.
Application field: monitoring equipment, portable explosion-proof equipment


Product features
1.The battery can pass GB3836 / Exib IIB T4 explosion-proof test, and can be used in special explosion-proof field. The battery pack is safe and reliable.
2.Battery protection management: Adopt imported protection chip with high stability, high precision monitoring, precise control, which can maximize the elimination of security risks.
3.The battery pack has good security, nice discharge performance and long cycle life.
4.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
5.Blue PVC heat shrinkable film package is simple and reliable, and it is easy to install.
6.The JST connector line output mode is adopted to increase the conductive reliability.

*
*
*
