Custom Lithium ion Battery Pack

14.4V 6.7Ah 18650 Lithium Ion battery Panasonic Battery for Aeronautical Facility

Product Detail

Product number: 04EQ064-01

Cell model:18650/3.6V/3.35Ah

Battery specification: 18650/4S2P/14.4V/6.7Ah

Nominal voltage:14.4V

Nominal capacity:6.7Ah

Charging voltage: 16.8V

Charging current: ≤2A

Discharging current: 2A

Instant discharging current: 4A

End-off voltage: 10.8V

Internal resistance: ≤280m?

Battery weight: 500kg

Product dimension: 100×70×46(Max))

Charging temperature:0~40℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~20 ℃

Temperature protection: /

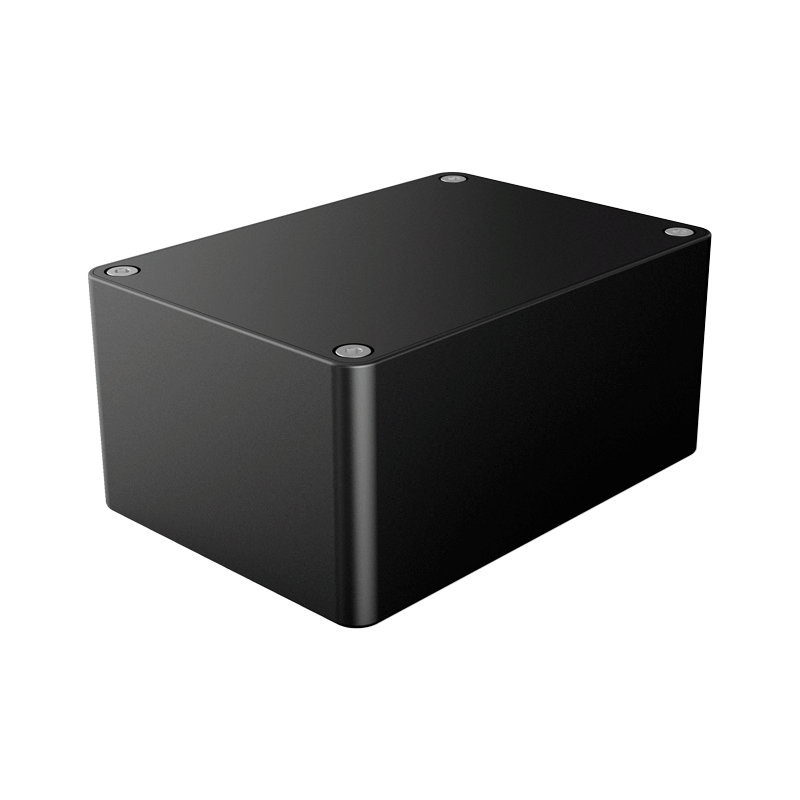

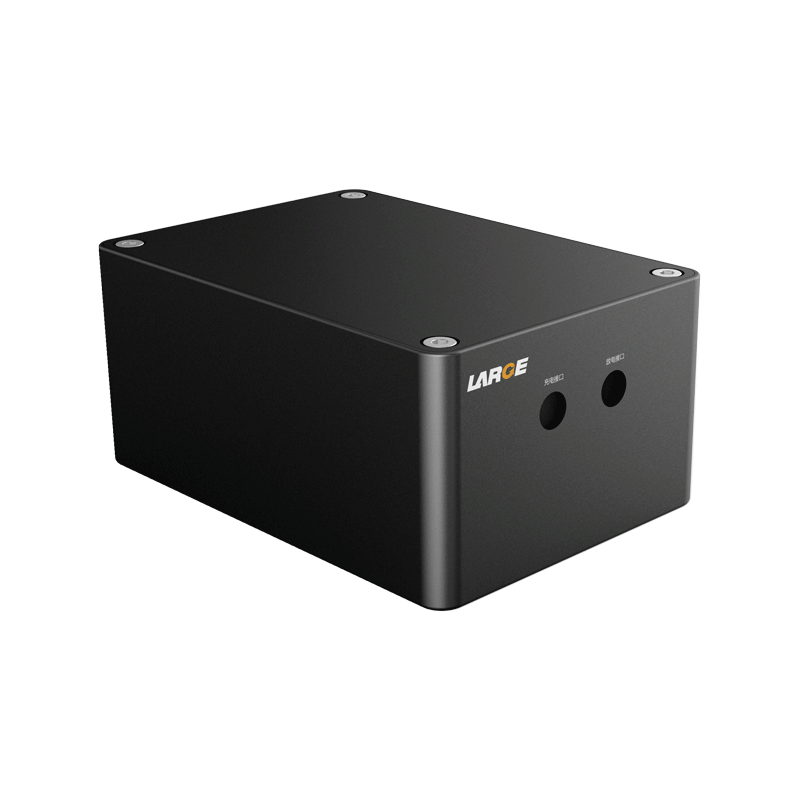

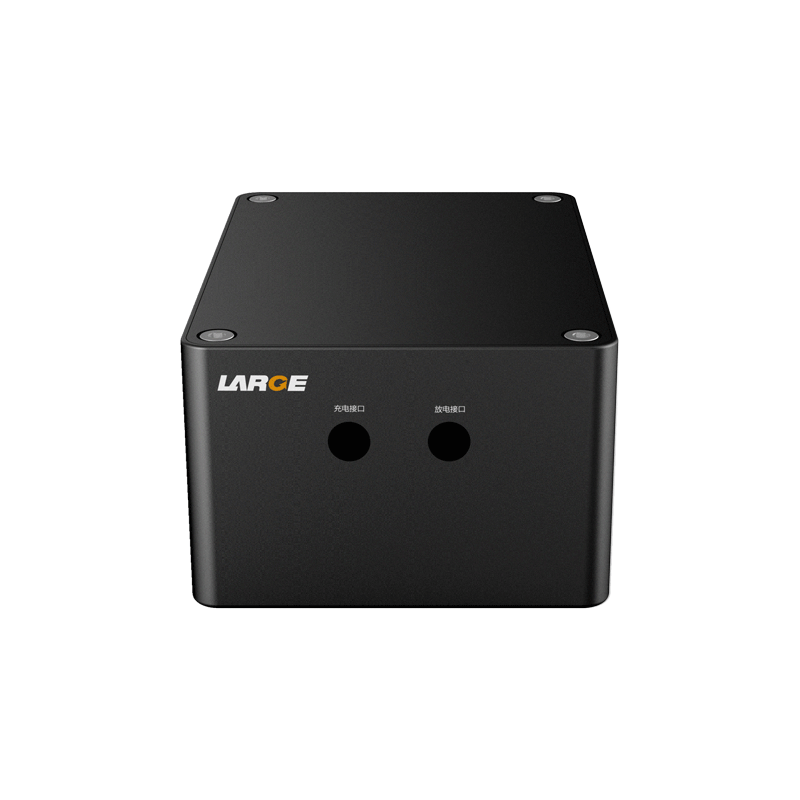

Battery case: fireproof PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: aeronautical facility

Product features

1. Shock-resistant and waterproof: fill in the shock-resistant structure inside the fireproof PC housing to satisfy the requirements of good security and high reliability.

2. Portable and exquisite: apply PC housing on lithium ion battery with high energy density, which makes exquisite appearance and light weight.

3. Reliable connection: connect with molding nickel strap, which is safe and reliable.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
