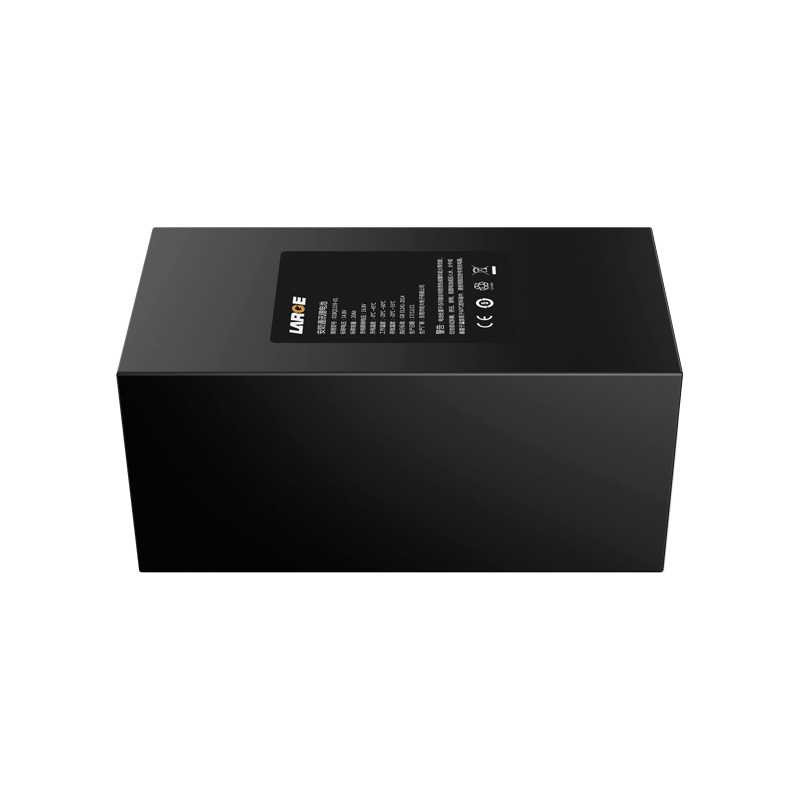

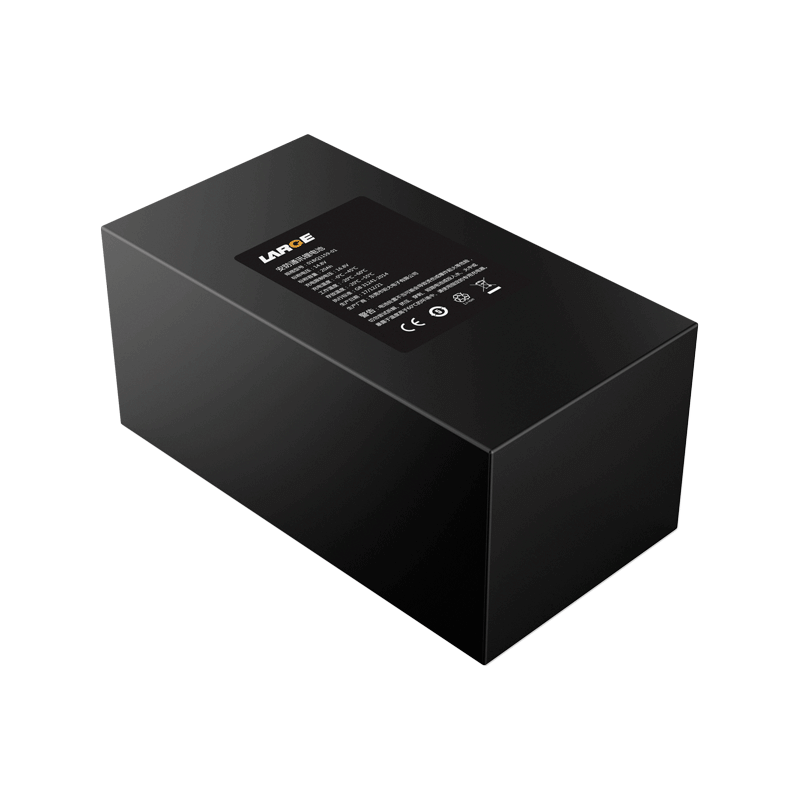

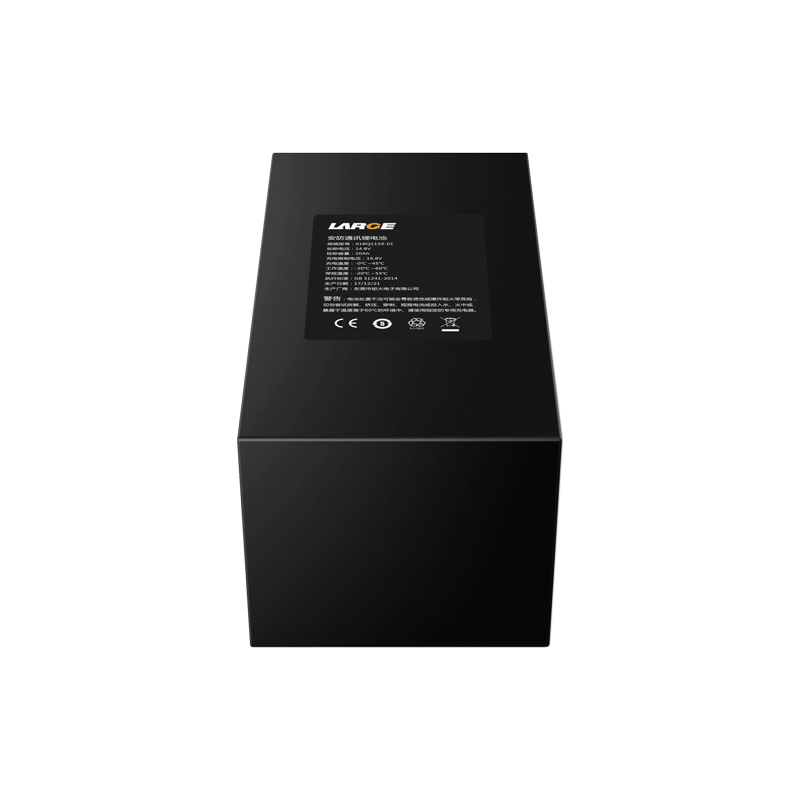

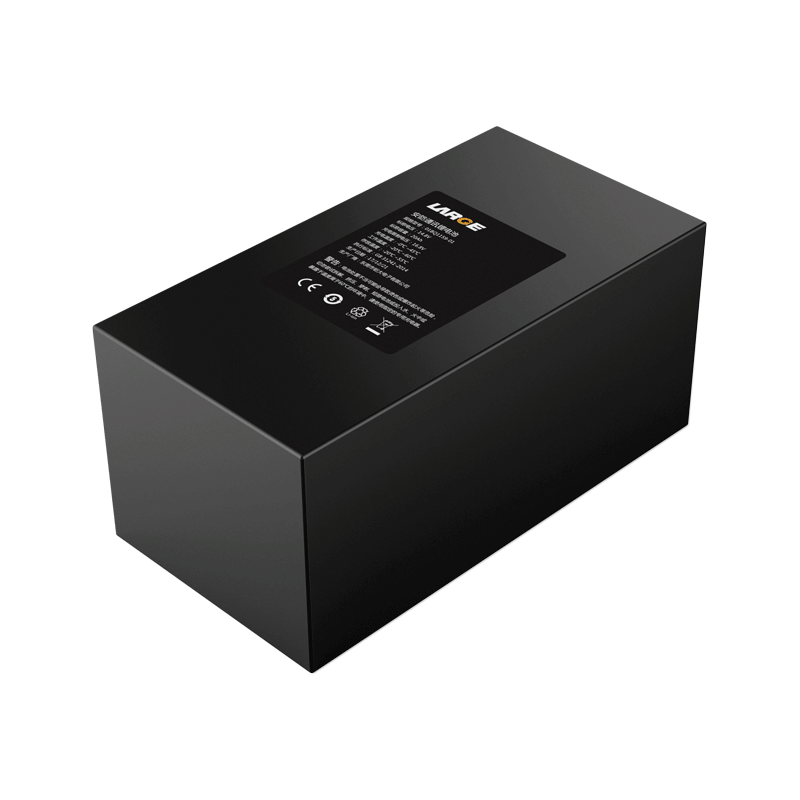

14.8V 20Ah 18650 Lithium Ion Battery Sanyo Battery for Security and Communication

Product Detail

Product number: 01BQ1159-01

Cell model:18650/3.7V/2.5Ah

Battery specification: 18650-4S8P/14.8V/20Ah

Nominal voltage:14.8V

Nominal capacity:20Ah

Charging voltage: 16.8V

Charging current: ≤4A

Discharging current: 4A

Instant discharging current: 5A

End-off voltage: 12.0V

Internal resistance: ≤250mΩ

Battery weight: 1.6Kg

Product dimension: 170*90*78mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: blue PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application: wireless monitor terminal, testing instrument, etc.

*
*
*
