Custom Lithium Ion Battery Pack

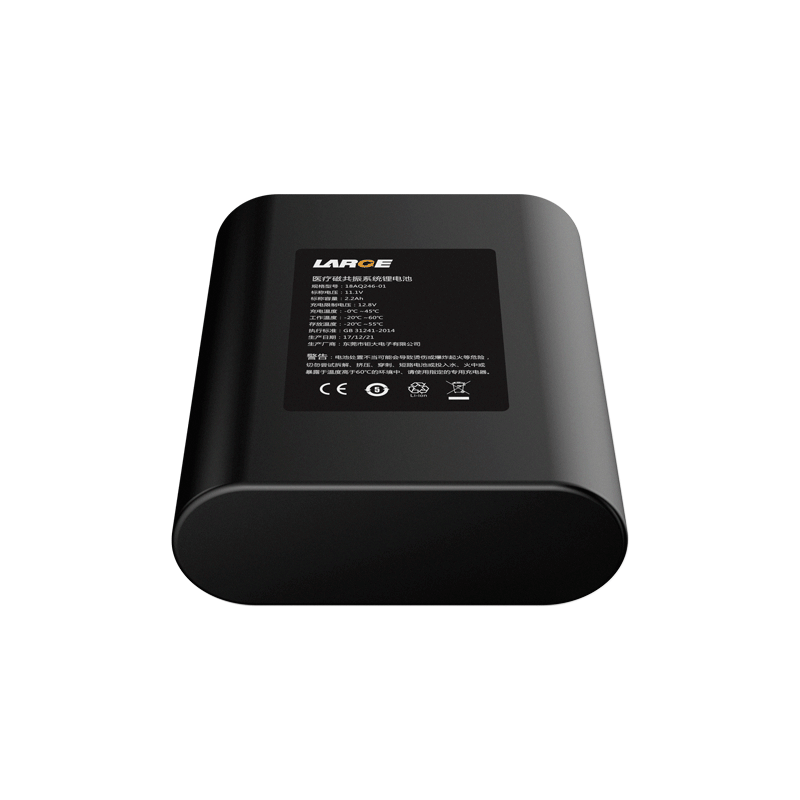

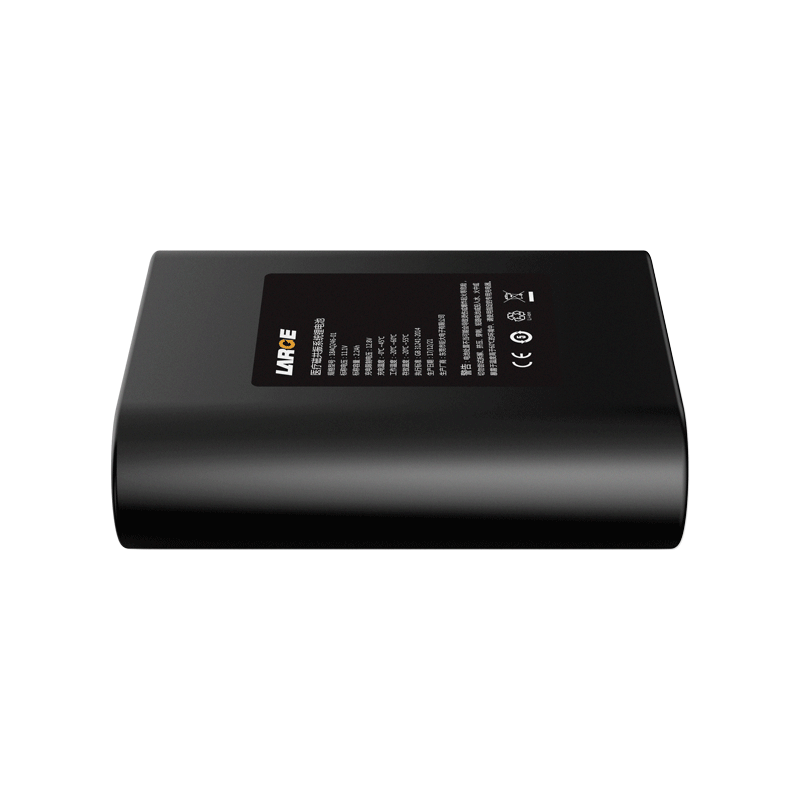

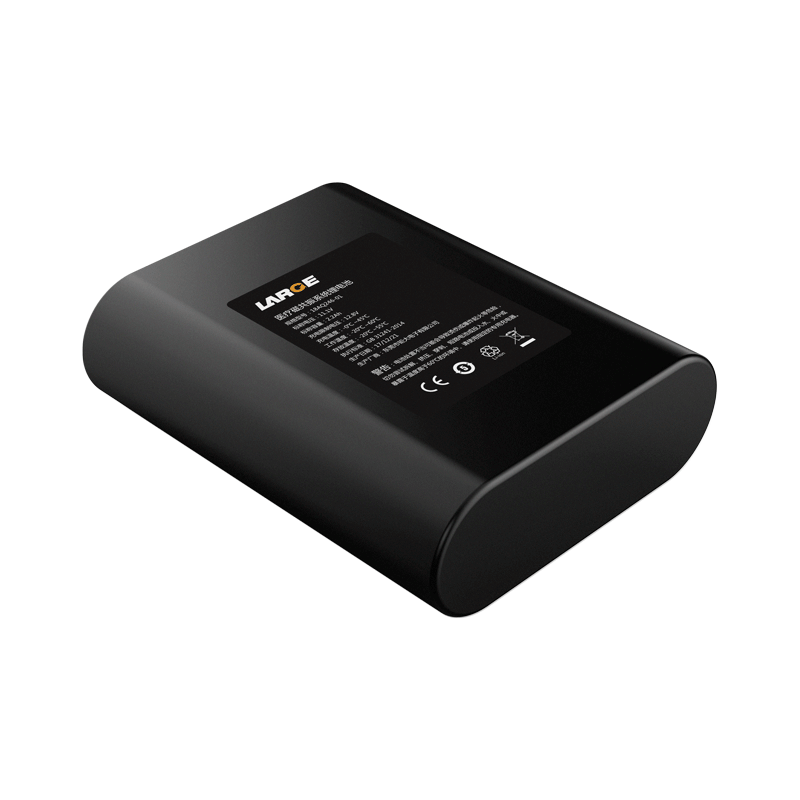

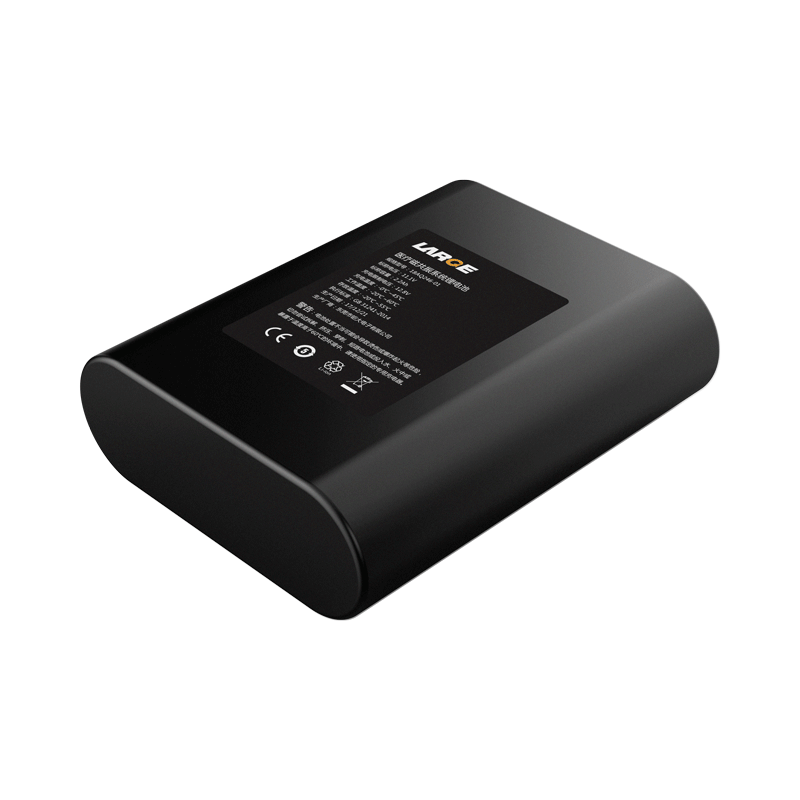

11.1V 2.2Ah 18650 Lithium Ion Battery BIC Battery for Medical MRI System

  • Model number:18AQ246-01

  • Nominal voltage:11.1V

  • Nominal capacity:2200mAh

  • Battery cell:18650/3.7V/2200mAh

  • Dimension:72*58*22mm(Max)

  • Application:medical magnetic resonance system, rail traffic testing equipment

Product Detail

Product number: 18AQ246-01

Cell model:18650/3.7V/2.2Ah

Battery specification: 18650-3S1P/11.1V/2.2Ah

Nominal voltage:11.1V

Nominal capacity:2.2Ah

Charging voltage: 12.8V

Charging current: ≤2A

Discharging current: 2A

Instant discharging current: 3.0A

End-off voltage: 9.0V

Internal resistance: ≤400mΩ

Battery weight: 150g

Product dimension: 72*58*22mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: blue PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: medical magnetic resonance system, rail traffic testing equipment


*
*
*
