Custom Lithium ion Battery Pack

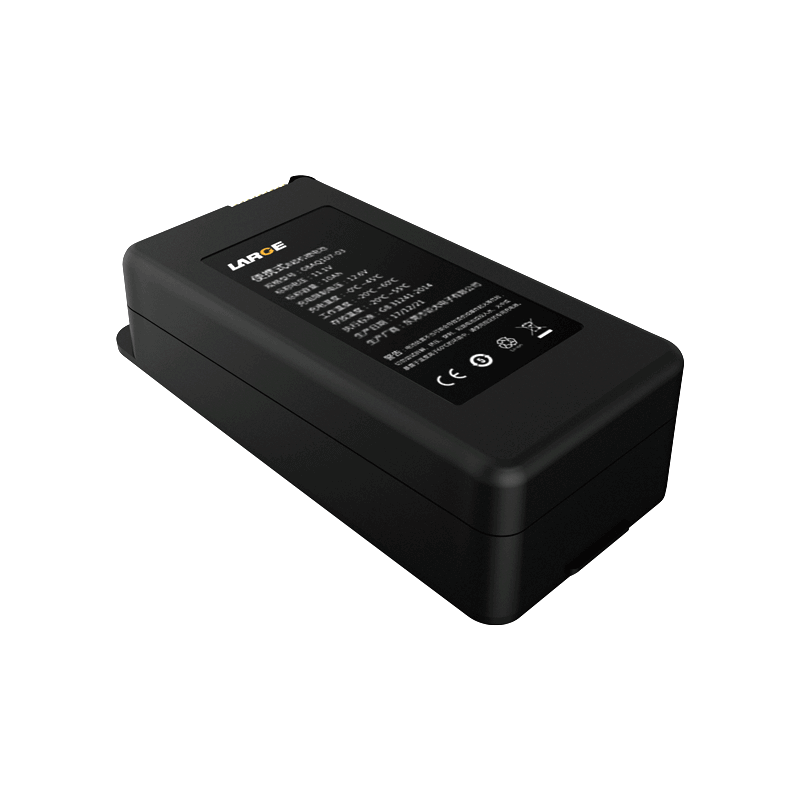

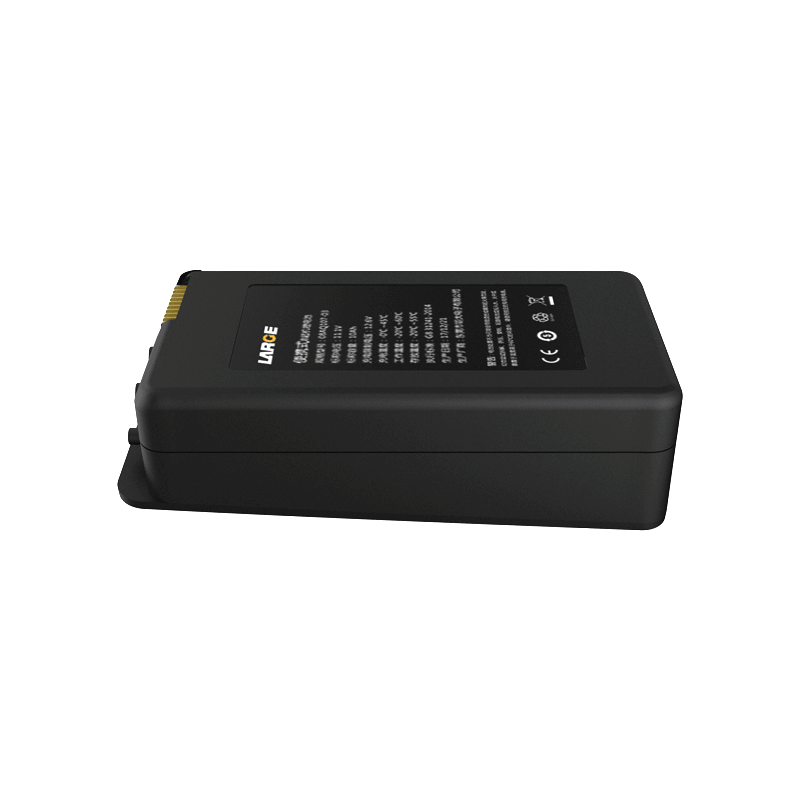

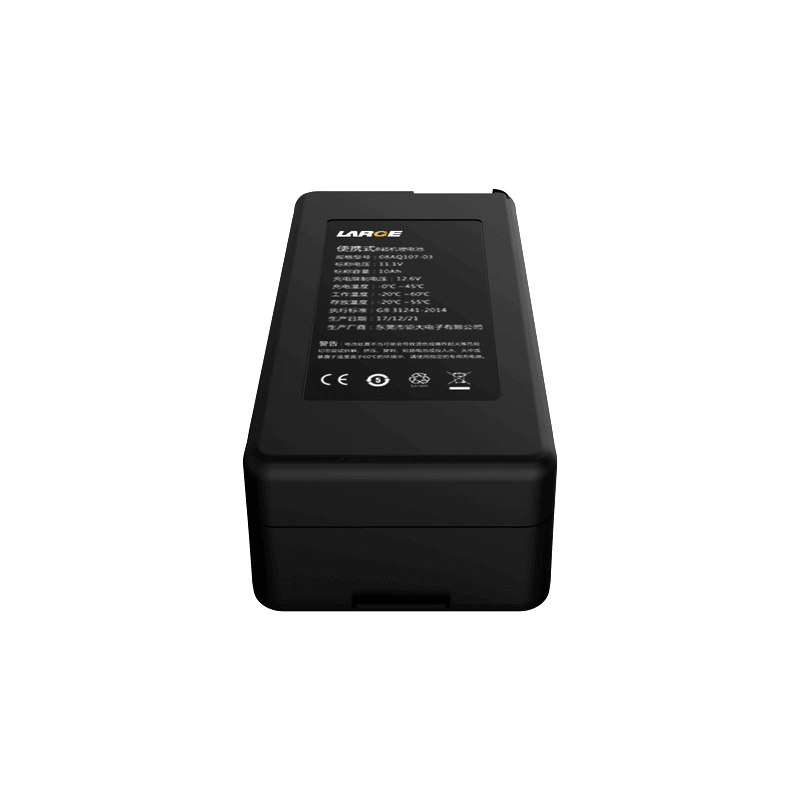

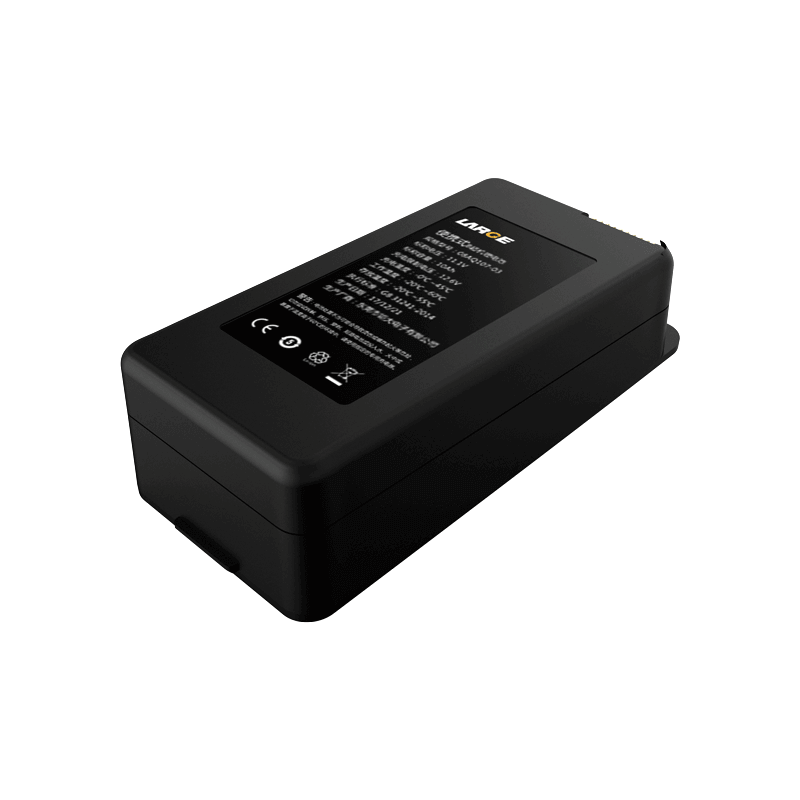

11.1V 10Ah 18650 Lithium Ion Battery Sanyo Battery for Portable B-mode Ultrasound Machine

  • Model number:08AQ107-03

  • Nominal voltage:11.1V

  • Nominal capacity:10000mAh

  • Battery cell:18650-2500mAh-3.7V

  • Dimension:38*78*162mm(Max)

  • Application:portable B-ultrasound medical equipment, portable medical device

Product Detail

Product number: 08AQ107-03

Cell model:18650-2500mAh-3.7V

Battery specification: 18650-3S4P-10Ah-11.1V

Nominal voltage:11.1V

Nominal capacity:10Ah

Charging voltage: 12.6V

Charging current: ≤5A

Discharging current: 2A

Instant discharging current: 10A

End-off voltage: 9.0V

Internal resistance: ≤250mΩ

Battery weight: 700g

Product dimension: 38*78*162mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: engineering plastic ABS+PC

Lithium-ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: portable B-ultrasound medical equipment, portable medical device


Product features

1. ABS+PC housing can improve the reliability and immobility of battery.

2. Hardware output terminal: adopt gold plating sheet as output mode to increase conductive reliability.

3. Data communication management: adopt TI-SMBus software management chip, SMBus precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

4. The battery pack has good security, nice discharge performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
