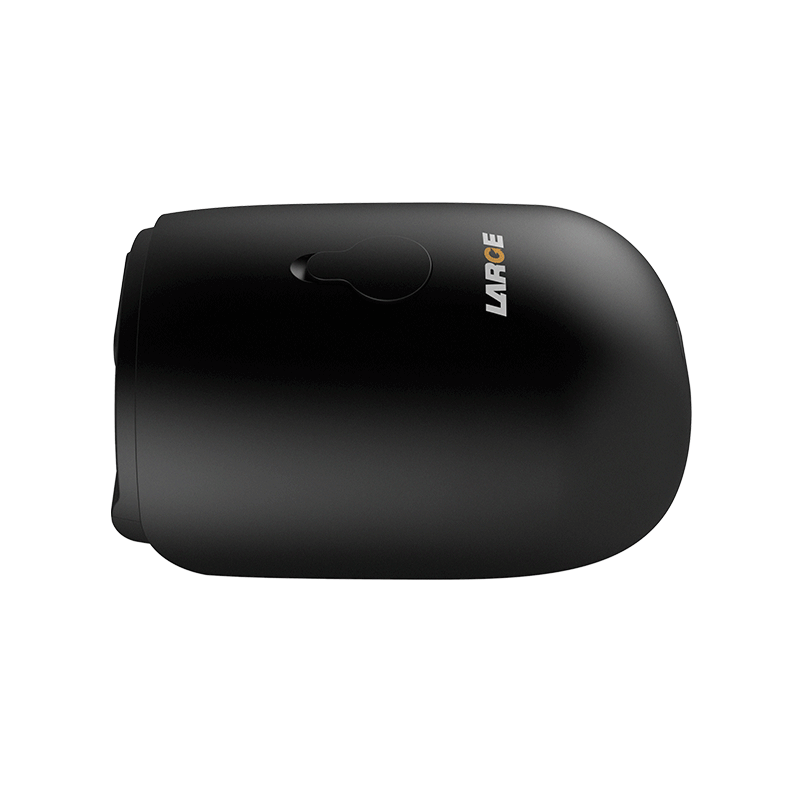

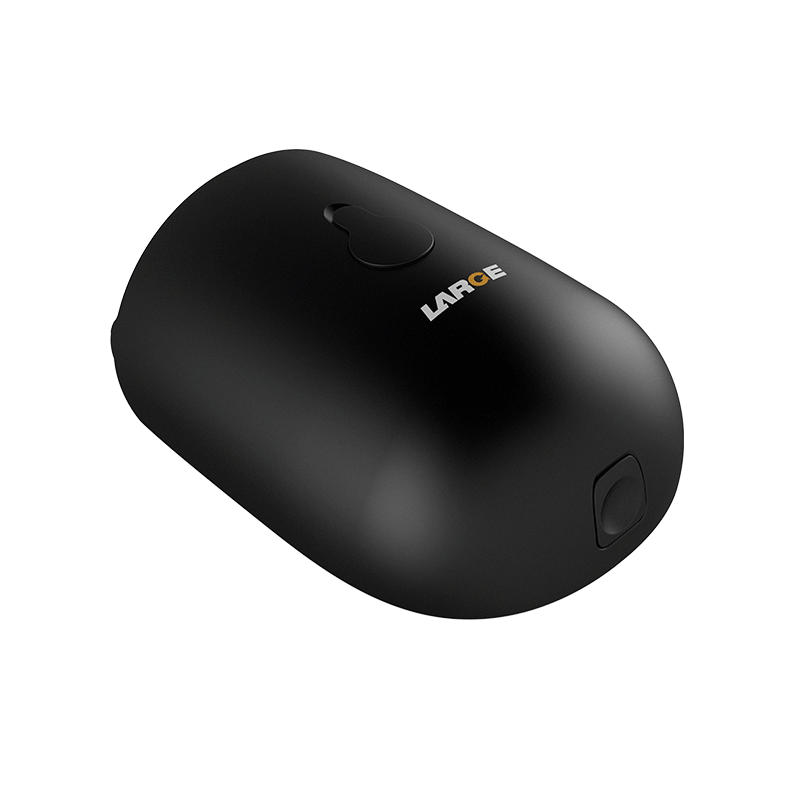

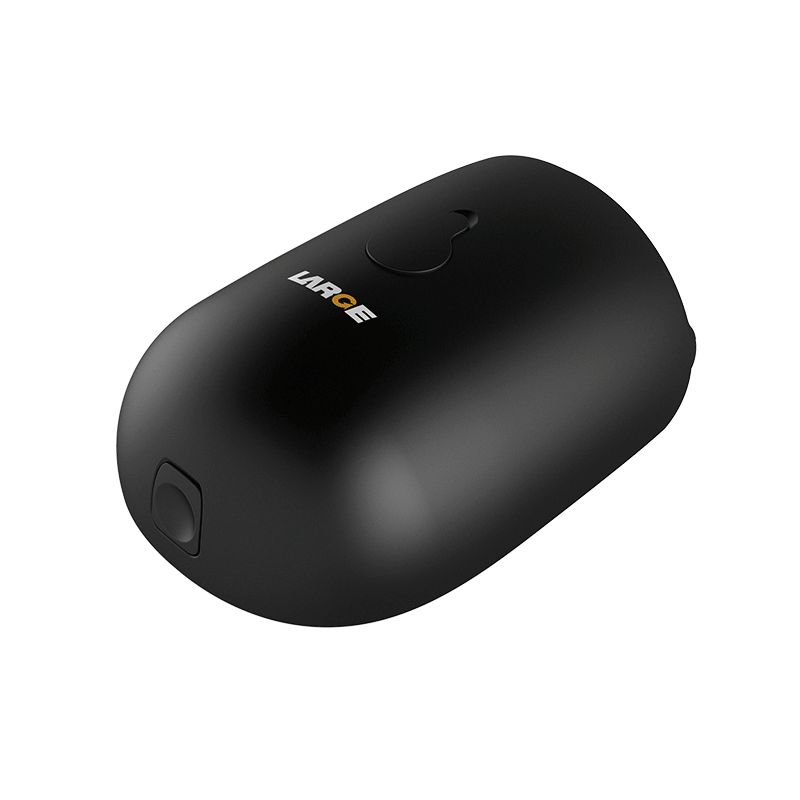

Custom Lithium Ion Battery Pack

3.6V 5200mAh 18650 Lithium Ion Battery for Industrial Backup Power with RS485 Communication

  • Model number:01DQ0040-01

  • Nominal voltage:3.6V

  • Nominal capacity:5200mAh

  • Battery cell:18650/3.6V/2600mAh

  • Dimension:79.5*58.1*29.7mm(Max)

  • Application:monitoring equipment

Product Detail

Product number: 01DQ0040-01

Cell model:18650/3.6V/2600mAh

Battery specification: 18650-1S2P/3.6V/5200mAh

Nominal voltage:3.6V

Nominal capacity:5200mAh

Charging voltage: 4.2V

Charging current: ≤2A

Discharging current: 1A

Instant discharging current: 2A

End-off voltage: 3V

Internal resistance: ≤250mΩ

Battery weight: 0.3Kg

Product dimension: 79.5*58.1*29.7mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: ABS+PC

Lithium-ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature detection, etc.

Application field: monitoring equipment


Product features

1. Data communication management: adopt IC+TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

2. Micro USB 5V charge

3. Adopt Ti management chip to manage charging.

4. The battery pack has good security, nice performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
