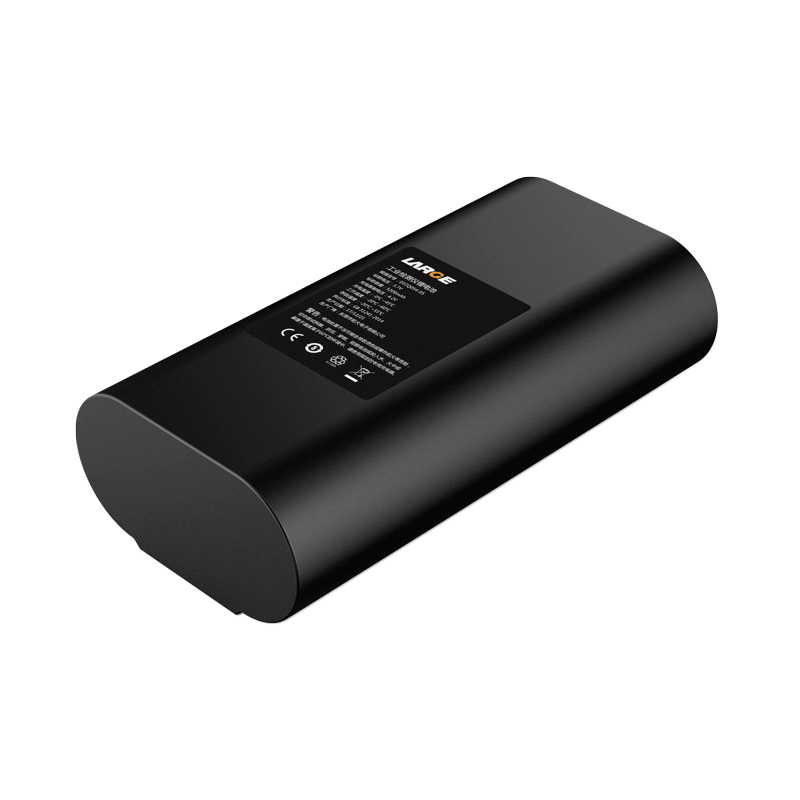

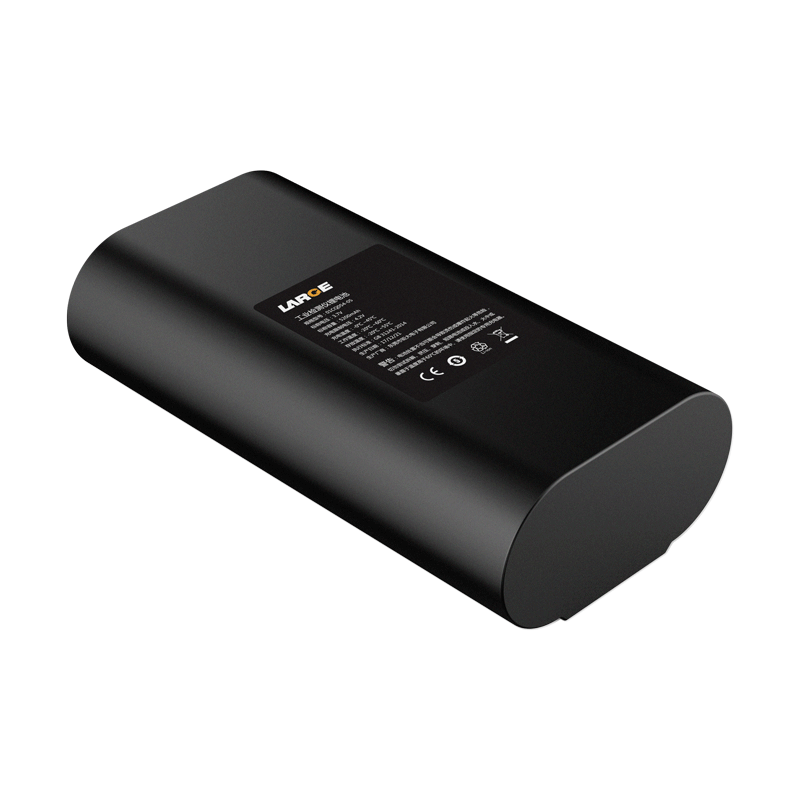

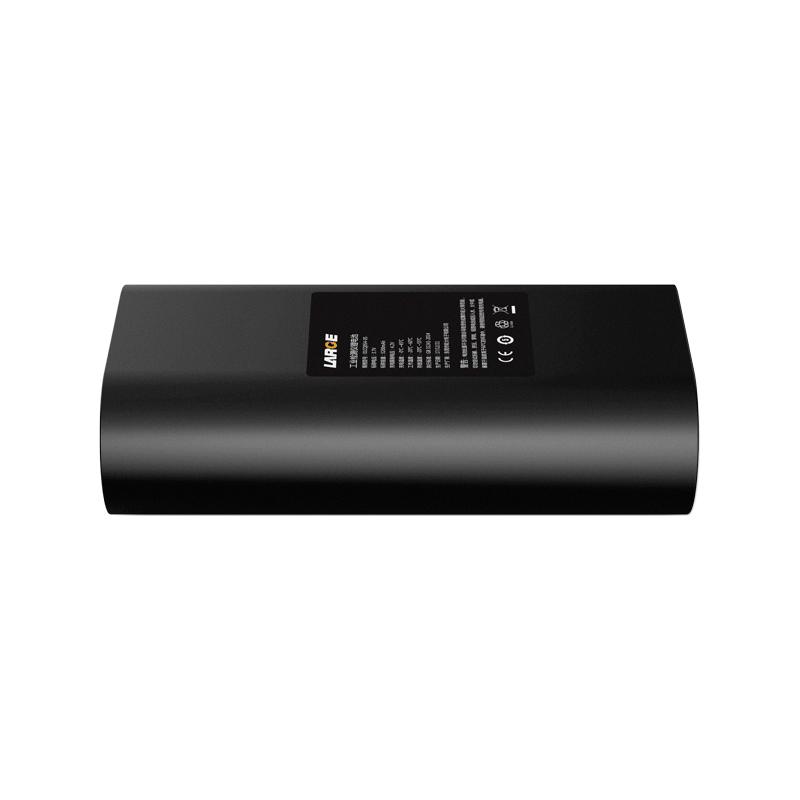

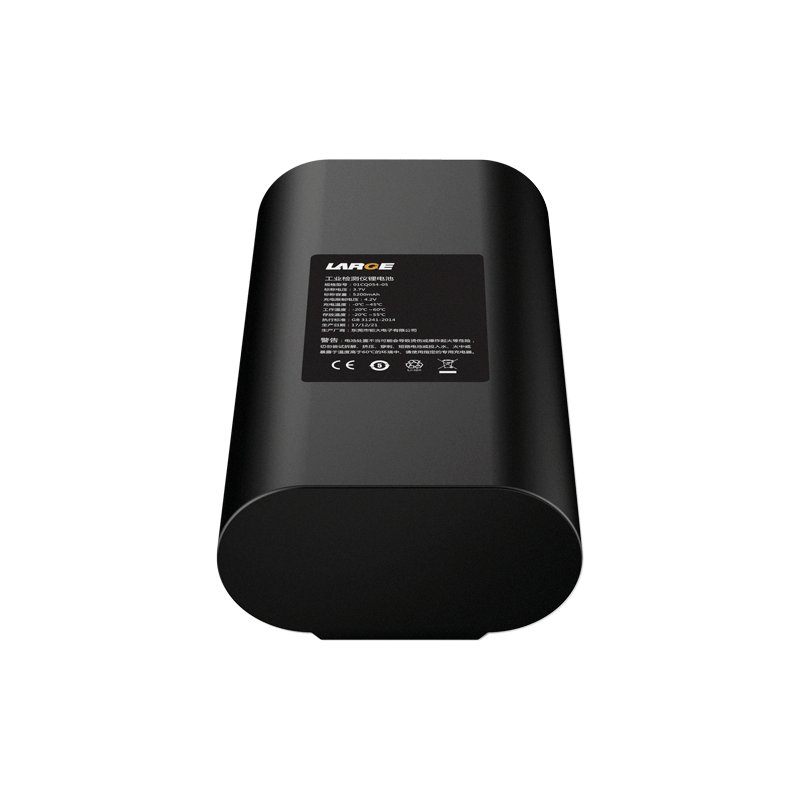

3.7V 5200mAh 18650 Lithium Ion Battery Sanyo Battery for industrial Detector
Product Number:
09AQ147-02
Nominal voltage:
3.7V
Nominal capacity:
5200mAh
Battery Configuration:
18650-1S2P Nominal Voltage 3.7V
Dimension:
68 × 39 × 20mm (Max)
Application:
industrial rail and measurement control equipmen
Stable Power Output, Compact PVC Design, Multiple Protection System
Product Overview
This battery is designed for industrial rail and measurement control equipment, suitable for long-term data acquisition and high-frequency operation scenarios. Featuring stable power output and a compact structure, it ensures reliable power supply for continuous operation under demanding working conditions.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 09AQ147-02 |
| Cell Model | 18650/3.7V/5200mAh |
| Battery Configuration | 18650-1S2P |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 5200mAh |
| Rated Energy | 19.24Wh |
| Charging Voltage | 4.2V |
| Discharge Cut-off Voltage | 3.0V |
| Standard Charging Current | ≤1000mA |
| Standard Discharge Current | 1000mA |
| Max Continuous Discharge Current | 2.0A |
| Internal Resistance | ≤170mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0 ~ 45℃ |
| Discharge Temperature | -20 ~ 60℃ |
| Storage Temperature | -20 ~ 35℃ |
| Dimensions | 68 × 39 × 20mm (Max) |
| Weight | 100g |
| Battery Case | PVC |
| Protection System | Short Circuit Protection, Overcharge Protection, Overdischarge Protection, Overcurrent Protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
