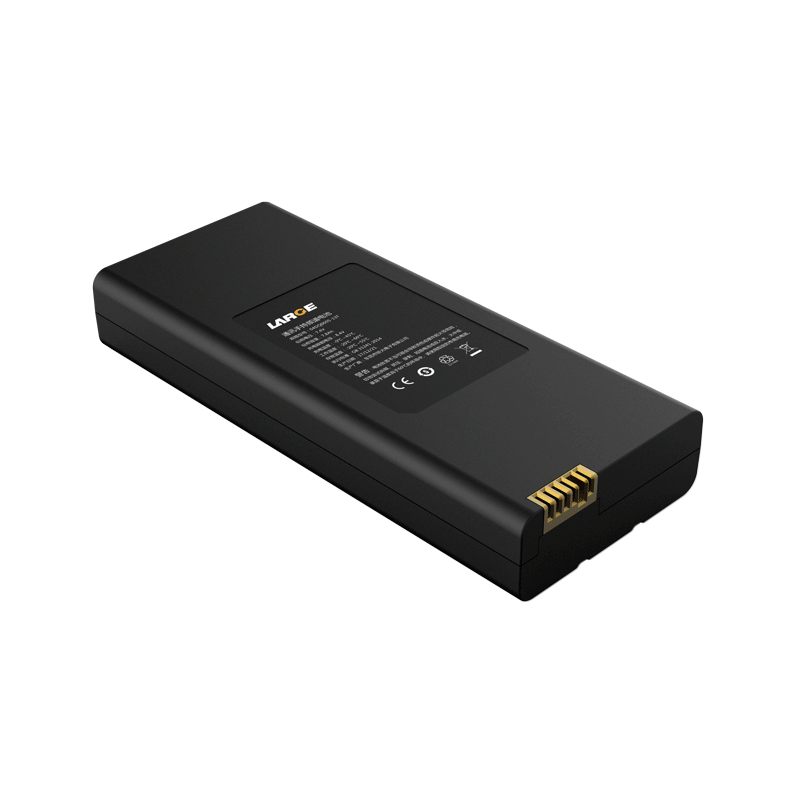

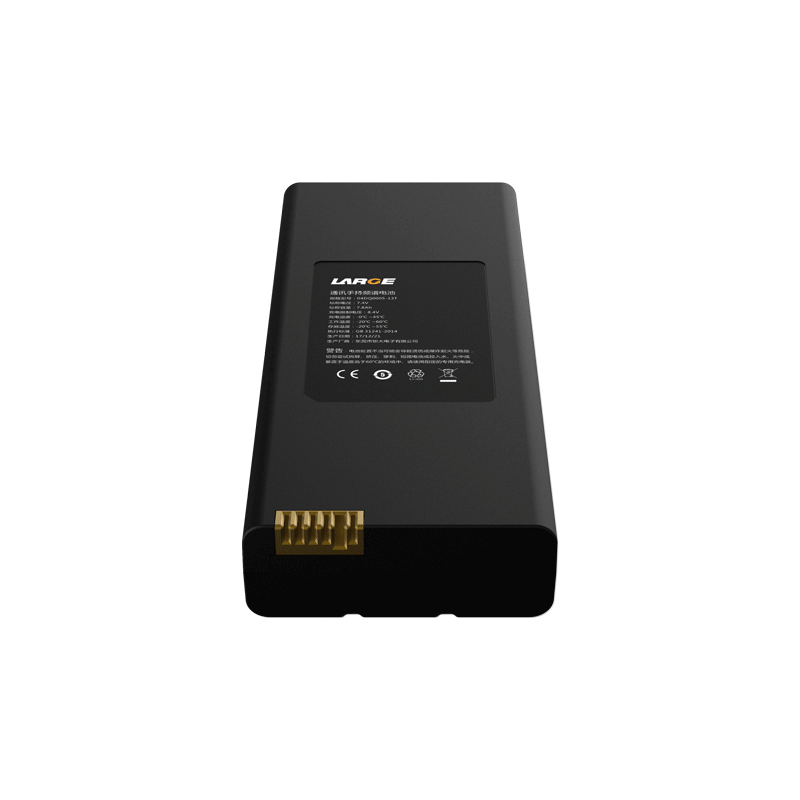

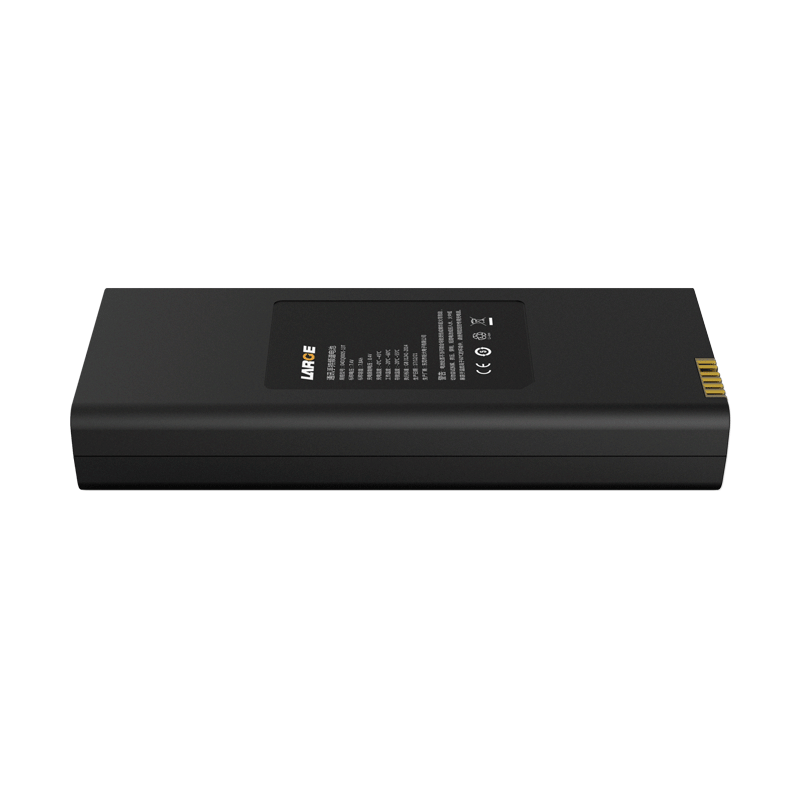

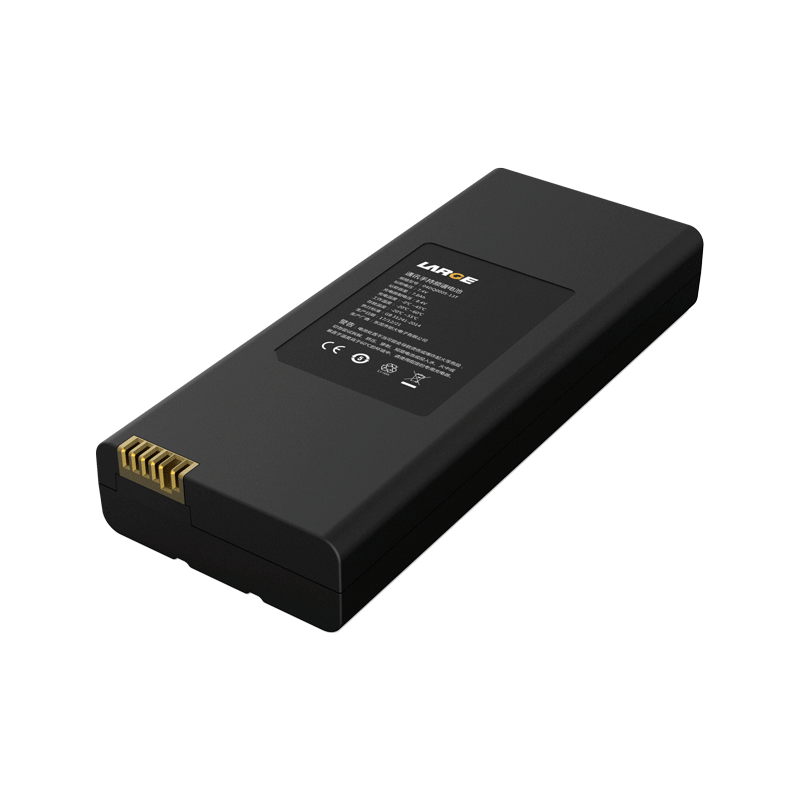

7.4V 6Ah 18650 Lithium Ion Battery Pack
Product Number:
04DQ0005-13T
Nominal voltage:
7.4V
Nominal capacity:
7.8Ah
Battery Configuration:
18650-2S3P
Dimension:
144×59.8×22.5mm
Application:
Handheld Spectrum Analyzer
SMBUS communication, Gold-plated output, Multiple protection
Product Overview
This battery pack is designed for handheld spectrum analyzers used in RF testing, communication diagnostics, and field signal analysis scenarios. It supports long-duration continuous operation in compact space with stable output and SMBUS smart communication for improved accuracy and reliability.
Electrical Specifications
| Property | Parameter |
|---|---|
| Product Number | 04DQ0005-13T |
| Cell Model | 18650/3.7V/2600mAh |
| Battery Configuration | 18650-2S3P |
| Nominal Voltage | 7.4V |
| Nominal Capacity | 7.8Ah |
| Rated Energy | 57.72Wh |
| Charging Voltage | 8.4V |
| Discharge Cut-off Voltage | 6.0V |
| Standard Charging Current | ≤2A |
| Standard Discharge Current | 1A |
| Max Continuous discharge current | 6A |
| Internal Resistance | ≤160mΩ |
Mechanical & Environmental
| Property | Parameter |
|---|---|
| Charging Temperature | 0～45℃ |
| Discharge Temperature | -20～60℃ |
| Storage temperature | -20～45℃ |
| Dimensions | 144×59.8×22.5 mm (Max) |
| Weight | 500g |
| Output Type | Standard DC output |
| Battery Case | Engineering plastic |
| Communication Protocol | SMBUS |
| Protection Rating | Not specified |
| Protection System | Short circuit, overcharge, overdischarge, overcurrent protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
