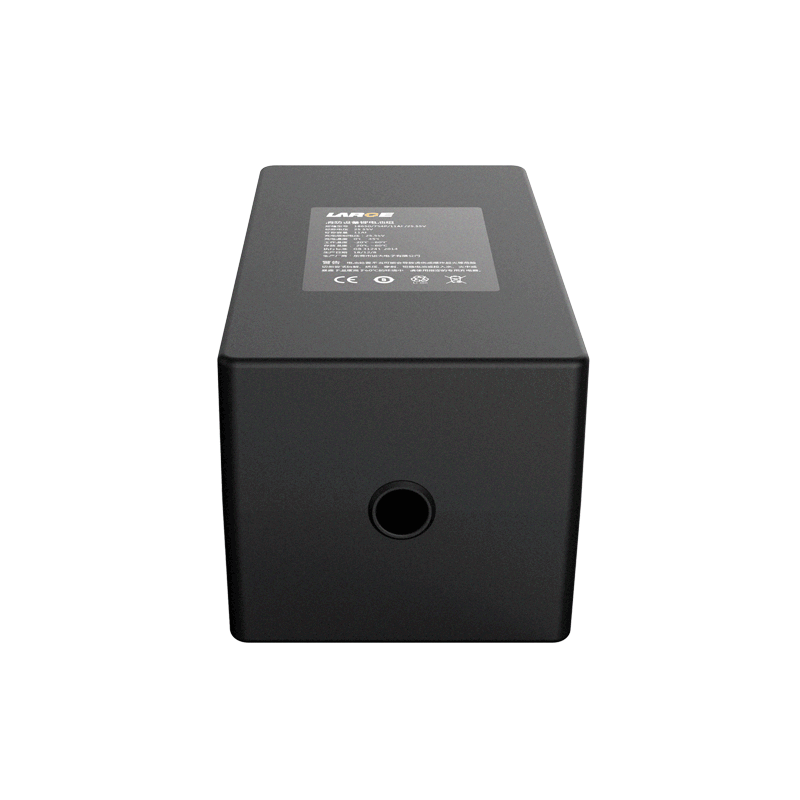

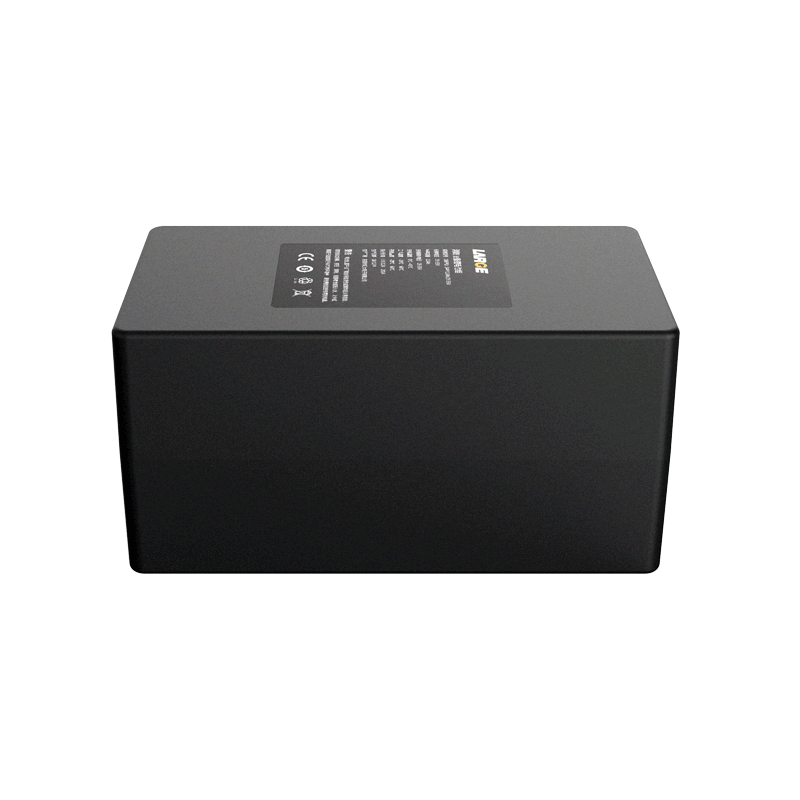

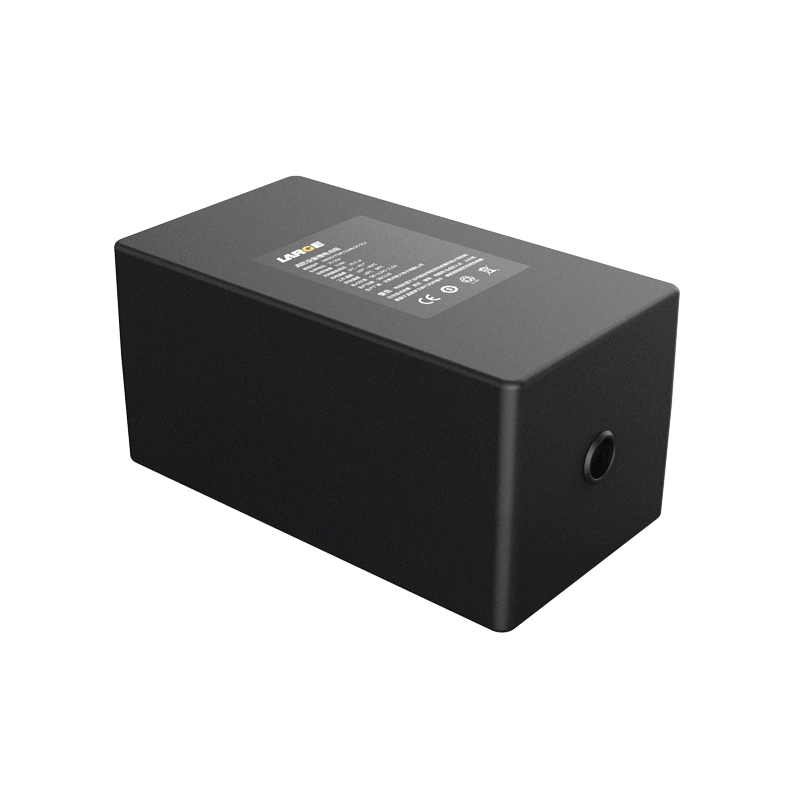

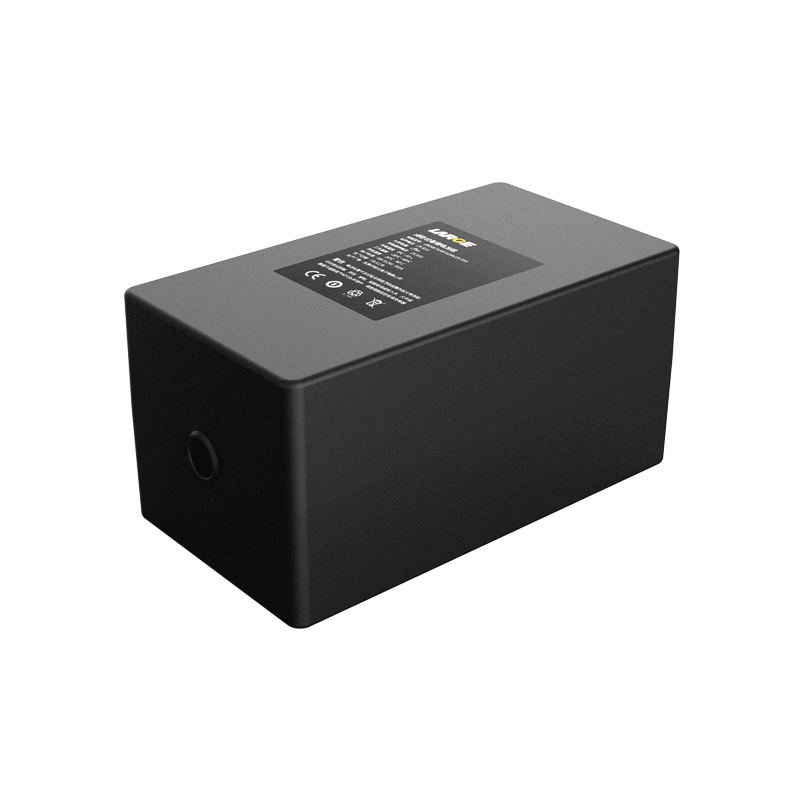

Product number: 06DQ030-05
Battery specification: 18650/7S4P/11Ah/25.55V
Charging voltage: 25.55V
Charging current: 2200mA
Discharging current: 2200mA
End-off voltage: 19.6V
Internal resistance: ≤200mΩ
Battery weight: 2000g
Product dimension: 156.0*86.0*77.5mm（Max）
Discharging temperature: -20～60 ℃
Storage temperature: -20℃～60℃（less than one month）；-20℃～45℃（less than three months）
Battery case: ABS+PC
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, power communication, etc.
Application field: robot, fire-fighting equipment
Data communication management: adopt TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.
The battery pack has good security, nice performance and long cycle life.
The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
