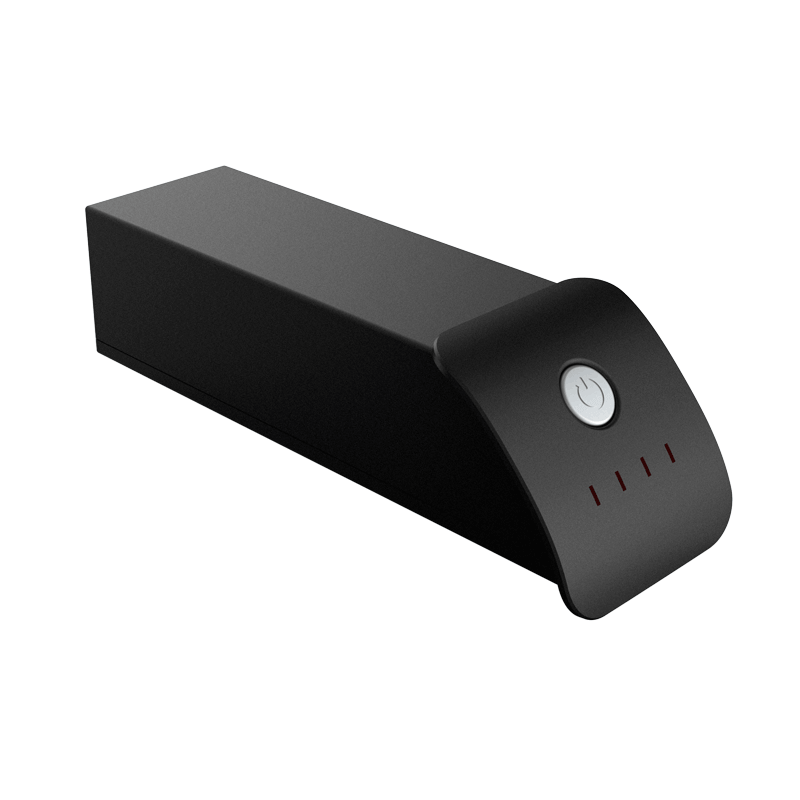

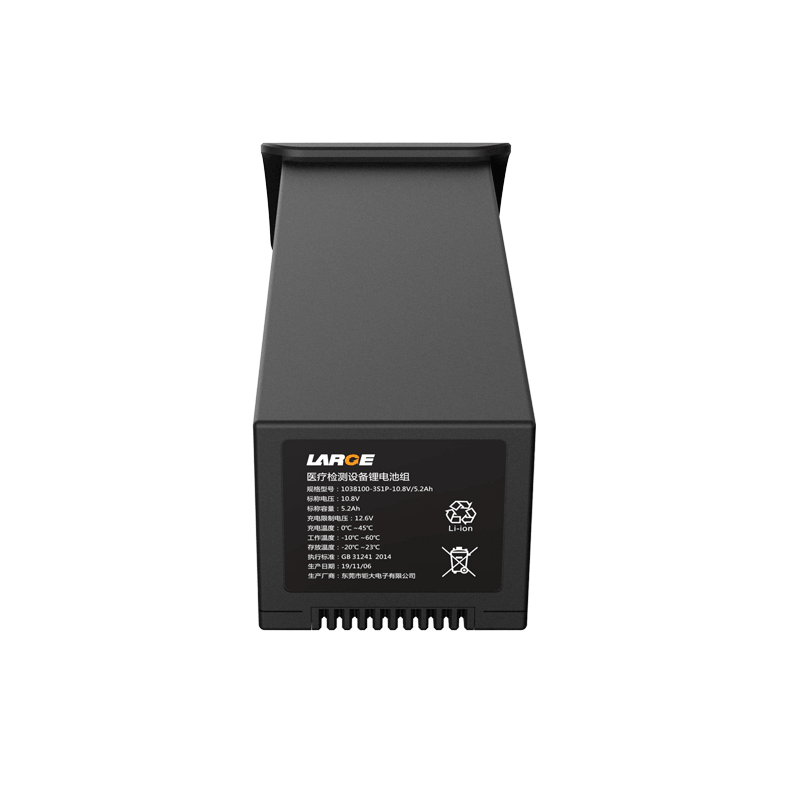

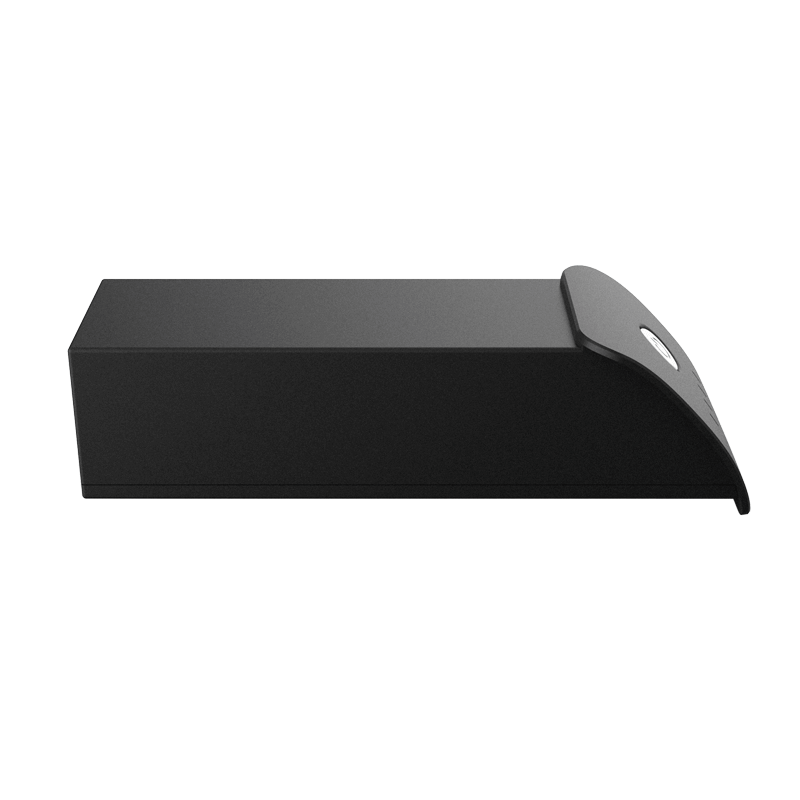

10.8V 5200mAh Lithium Polymer Battery for Education Car
Education Car Lithium ion Battery Pack
10.8V 5200mAh Lithium Polymer Battery Pack - Image 3

10.8V 5200mAh Lithium Polymer Battery Pack

Product Number:
36AQ299-01
Nominal voltage:
10.8V
Nominal capacity:
5.2Ah
Battery Configuration:
1038100-3S1P
Dimension:
Irregular shape
Application:
robot
Get Custom Solution
IIC Communication, Power Display, Anti-drop Design
Product Overview

This lithium polymer battery is designed for educational robots and AI programming cars, supporting continuous operation in interactive learning and coding scenarios. Featuring IIC communication, compact structure, and stable power output, it delivers reliable performance and easy integration for intelligent robotic devices.

Electrical Specifications

Property Parameter
Product Number 36AQ299-01
Cell Model 1038100PL-3.7V/5.2Ah
Battery Configuration 1038100-3S1P
Nominal Voltage 10.8V
Nominal Capacity 5.2Ah
Rated Energy 56.16Wh
Charging Voltage 12.6V
Discharge Cut-off Voltage 8.4V
Standard Charging Current ≤2.5A
Standard Discharge Current 1A
Max Continuous Discharge Current 1A
Internal Resistance ≤300mΩ

Mechanical & Environmental

Property Parameter
Charging Temperature 0～45℃
Discharge Temperature -10～60℃
Storage Temperature -20℃～+23℃（≤12 months）
Dimensions Irregular shape
Weight 500g
Battery Case PC+ABS
Communication Protocol IIC
Protection System Conventional protection + IIC communication function

Application Background

This battery solution is specially designed for small educational robots and AI programming cars, suitable for interactive teaching, programming training, and intelligent control scenarios.
The device requires stable power supply during continuous operation, motion control, and sensor interaction, placing high demands on battery safety, compact structure, and endurance performance.

Project Challenges

Continuous operation for 4–6 hours in teaching scenarios
Instant current demand during motor start-up and movement control
Limited internal space requiring customized irregular battery structure
Frequent charging and daily use requiring stable cycle performance

Customized Battery Solution

Intelligent communication design: IIC communication with power display and push-button start function
Special-shaped structure: Customized irregular polymer battery design for compact robot installation space
Protective enclosure: PC+ABS housing with anti-drop structure for improved durability and safety
Comprehensive protection system: Overcharge, over-discharge, overcurrent, and short-circuit protection

Application Results

Supports 4–6 hours of continuous operation
Stable output improves robot operation reliability by approximately 20%+
Detachable battery design simplifies replacement and maintenance
Long cycle life supports frequent daily charging and usage

We support flexible customization based on your project requirements, including:

  • Voltage range: 3.2V – 72V
  • Capacity range: 100mAh – 100Ah
  • Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
  • Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
  • BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
