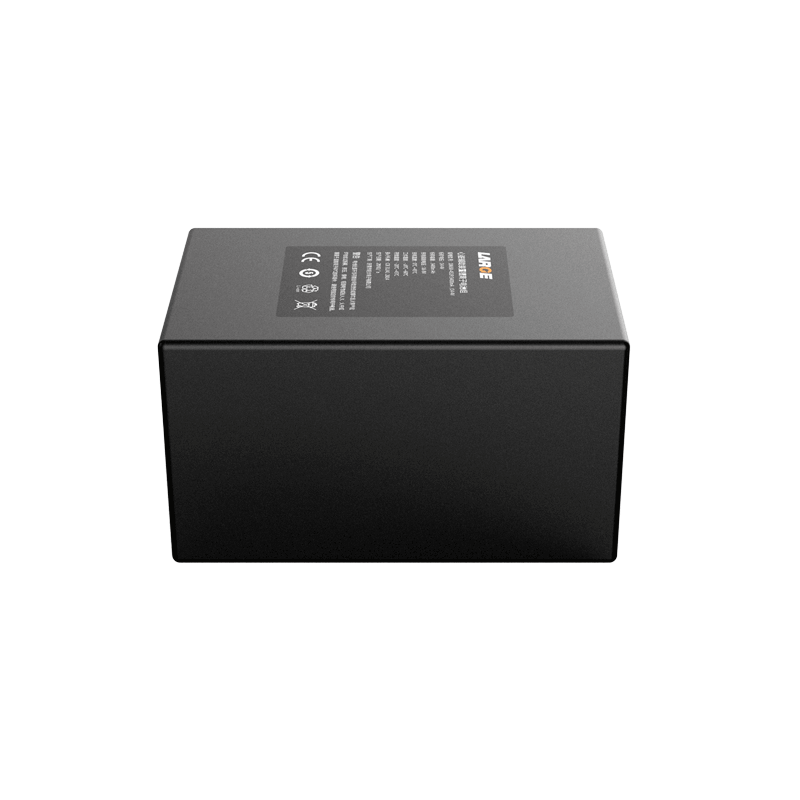

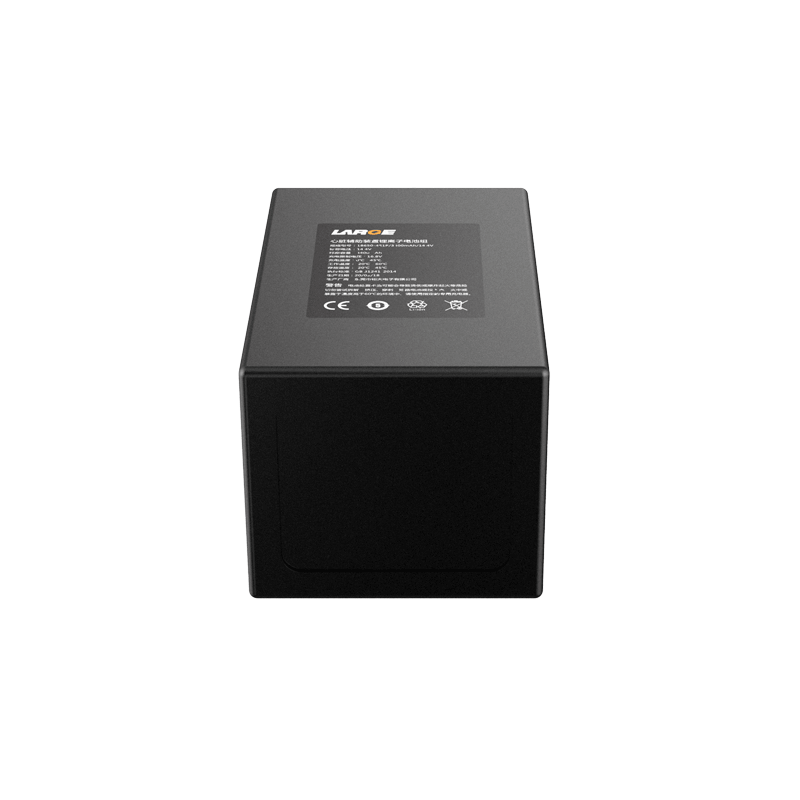

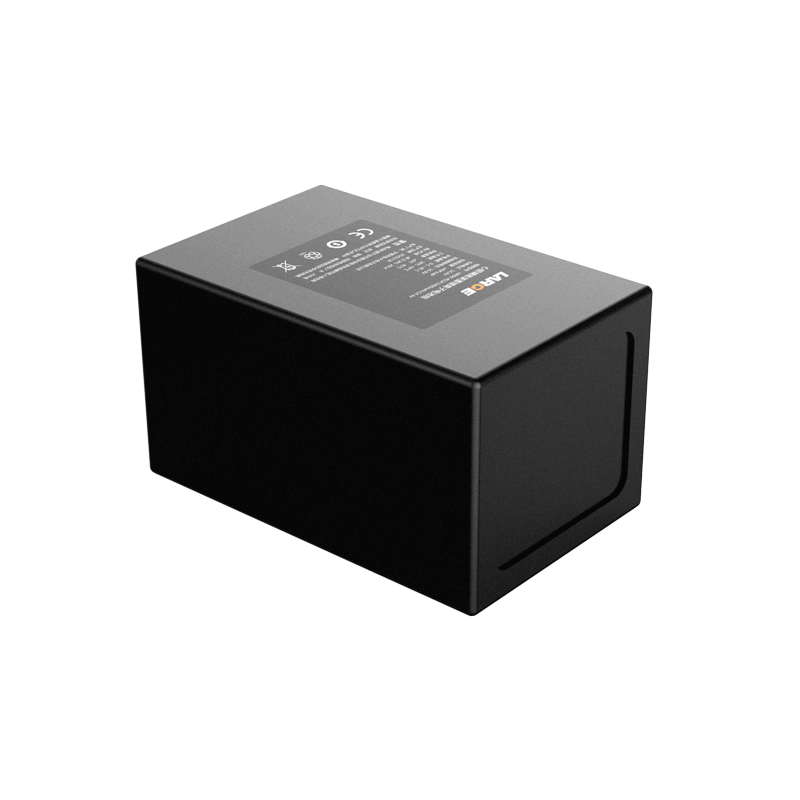

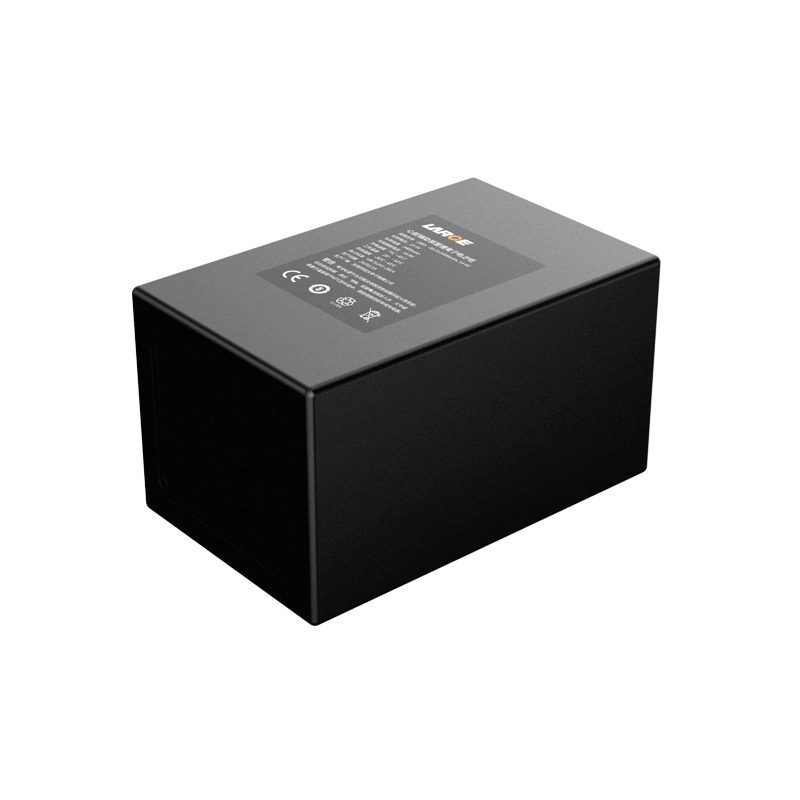

18650-4S1P 14.4V 3400mAh Samsung Battery 18650 Battery for Heart Assist Device

Product Detail

Product number: 06DQ054-01T

Cell model:INR18650-35E/3400mAh/3.6V-SDI

Battery specification: 18650-4S1P/3400mAh/14.4V

Nominal voltage:14.4V

Nominal capacity:3400mAh

Charging voltage: 16.8V

Charging current: 680mA

Discharging current: 680mA

Maximum discharging current: 3400mA

End-off voltage: 12.0V

Internal resistance: ≤350mΩ

Battery weight: 220g

Product dimension: 67.5*38.5*43.0mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~45℃ less than three months

Battery package: PVC film

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: medical device, heart assist device

Product features

Battery management: adopt imported protective chip, which has good stability, high precision monitoring and accurate control with ESD protection and temperature protection, so as to eliminate the security risks.

The battery pack has good security, nice performance and long cycle life.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
