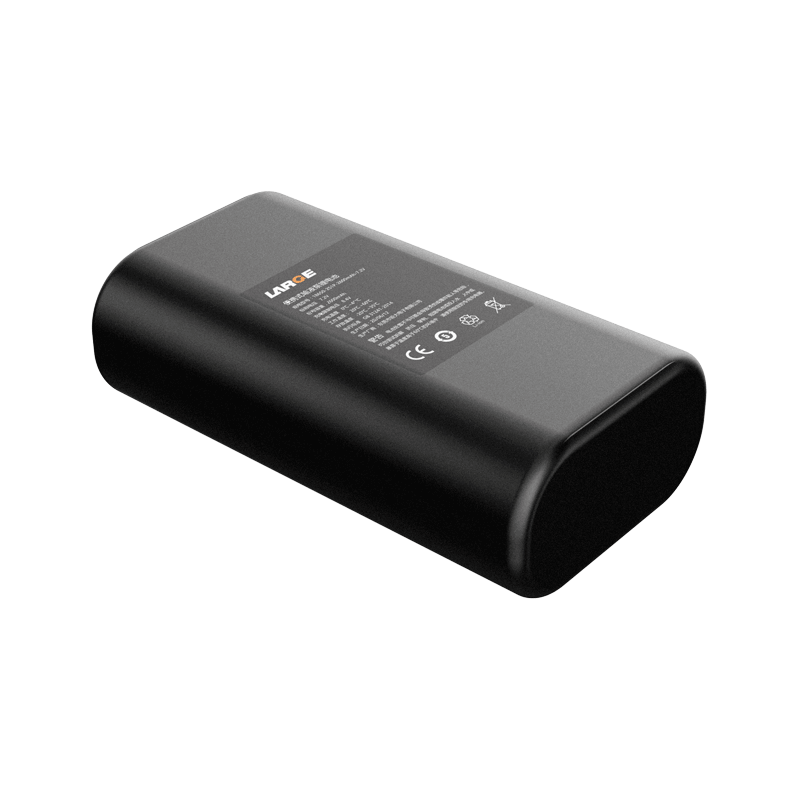

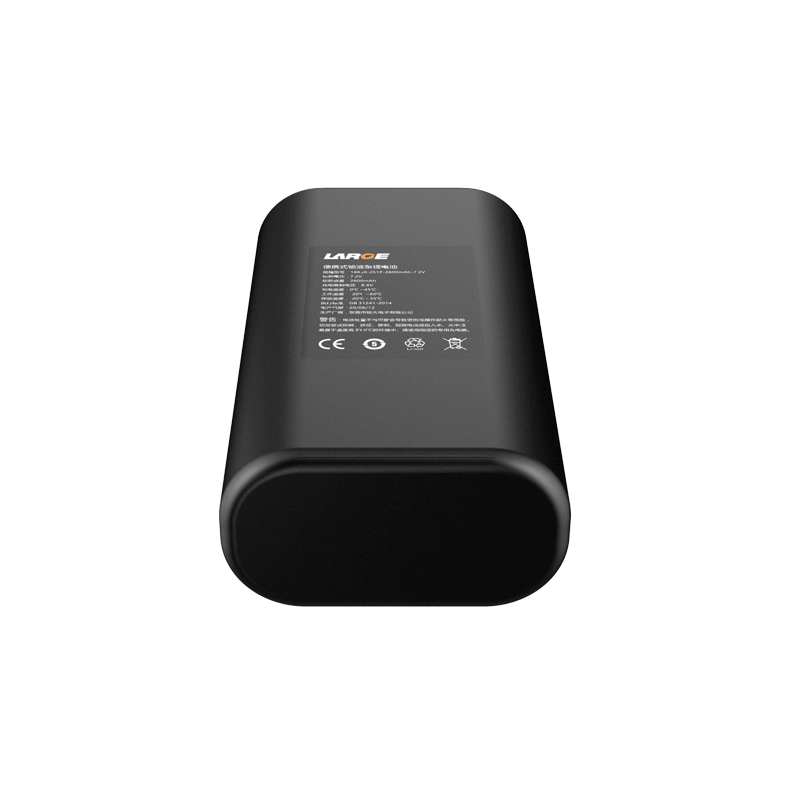

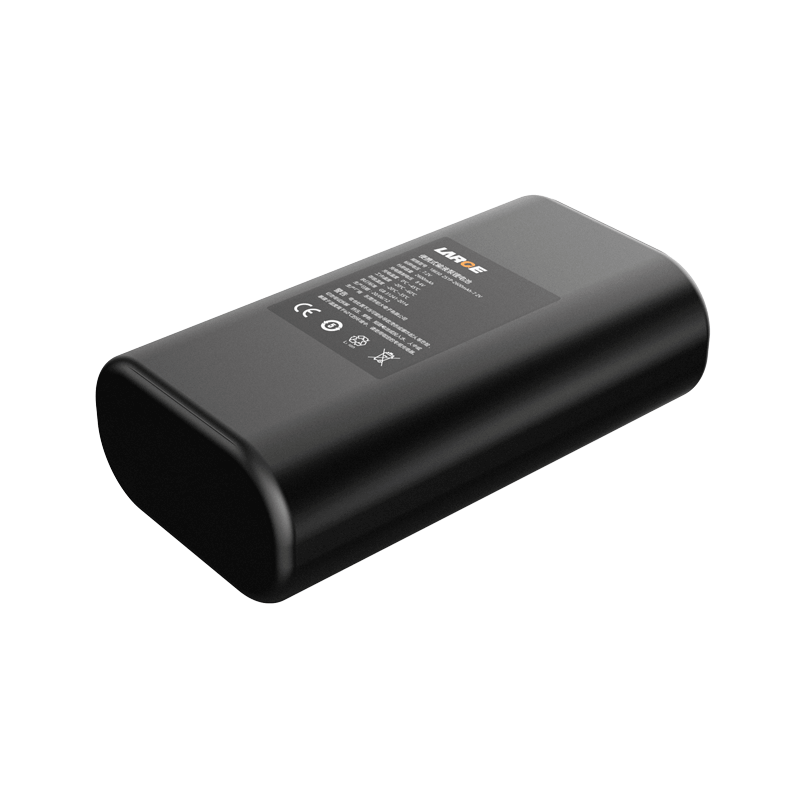

18650 7.2V 2600mAh Lithium Ion Battery for Portable Medical Infusion Pump

Product number: 08AQ606-02

Cell model：18650-2600mAh-3.6V

Battery specification: 18650-2S1P-2600mAh-7.2V

Nominal voltage：7.2V

Nominal capacity：2600mAh

Charging voltage: 8.4V

Charging current: ≤1.3A

Discharging current: 0.52A

Instant discharging current: 2.6A

End-off voltage: 6.0V

Internal resistance: ≤230mΩ

Battery weight: 100g

Product dimension: 68*38*21.5mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35℃

Battery case: No case, PVC shrink film package

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection, etc.

Application field: portable infusion pump, portable medical device

Product features

1. Blue PVC heat shrink film package is simple, reliable, and easy to install.

2. Connector plug outlet: adopt MOLEX plug output mode to increase conductive reliability.

3. Battery protection chip: Use Seiko protection chip with good stability, high precision, precise voltage monitoring and accurate current control, so as to maximize the elimination of security risks.

4. The battery pack has good safety performance, nice discharge performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
