Custom Lithium ion Battery Pack

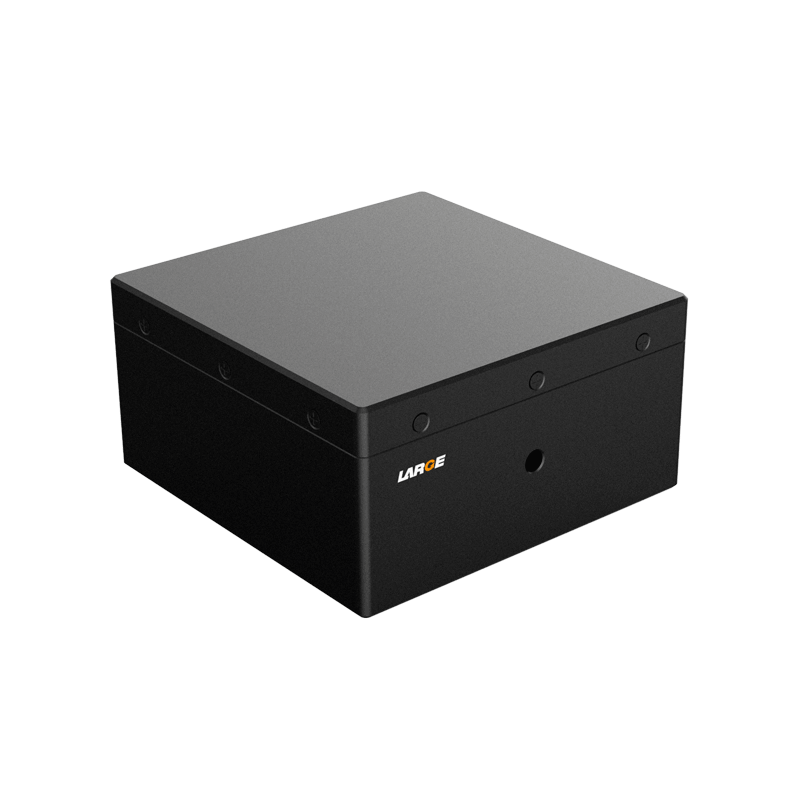

18650 25.2V 20.6Ah Lithium Ion Battery for Intelligent Robot

Product Detail

Product number: 02KQ0011-05

Cell model:18650-3400mAh-3.6V

Battery specification: 18650-7S6P-20.4Ah-25.2V

Nominal voltage:25.2V

Nominal capacity:20.4Ah

Charging voltage: 29.4V

Charging current: ≤10A

Discharging current: 4A

Instant discharging current: 40A

End-off voltage: 21V

Internal resistance: ≤350mΩ

Battery weight: 2500g

Product dimension: 149*76*79.5mm

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35℃

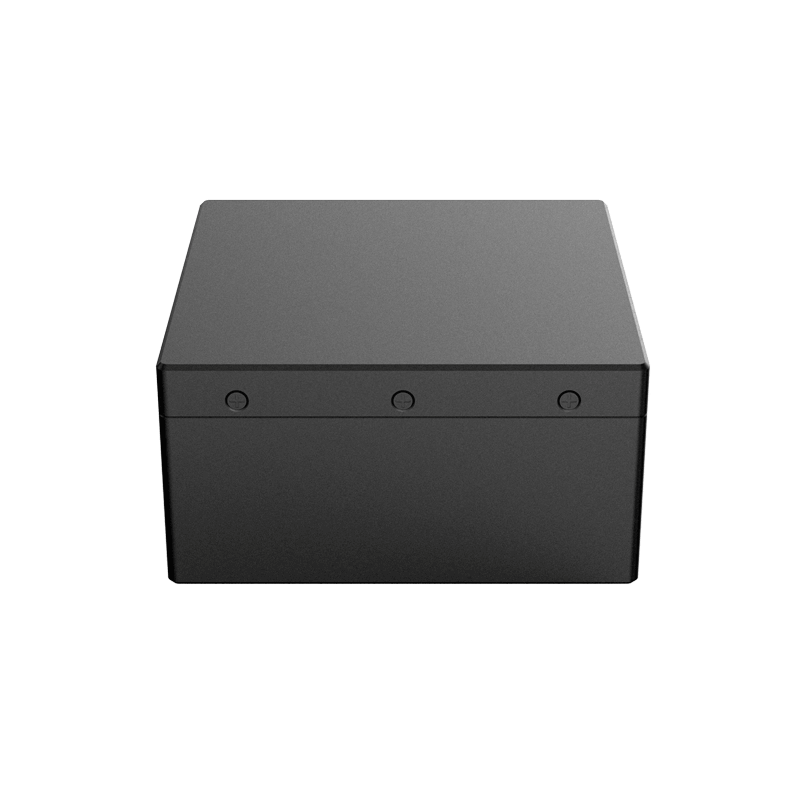

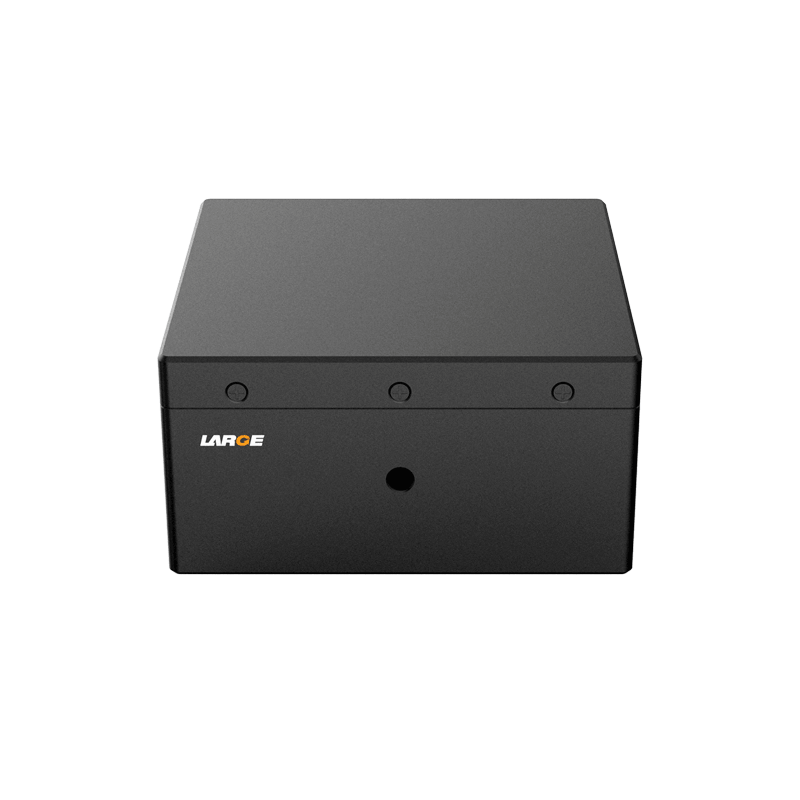

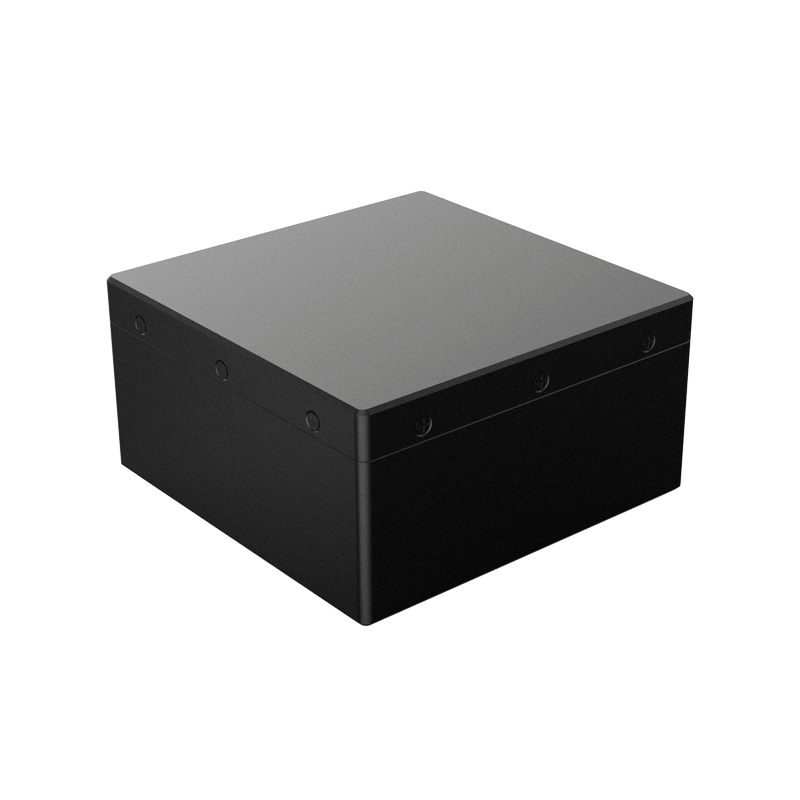

Battery case: metal plate case

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, over temperature, overcurrent protection, ESD protection, etc.

Application field: patrol robot, power monitoring robot, mapping robot

Product features

1. Metal plated case increases the battery reliability, immobility, and is easy to install and carry.

2. Wire output terminal: adopt heat resistance wire to increase conductive reliability and heat resistance.

3. Data communication management: Use TI-SMBus software management chip, SMBus communication accurate data transmission, precise temperature control to maximize the elimination of safety risks.

4. The battery pack has good safety performance, nice discharge performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
