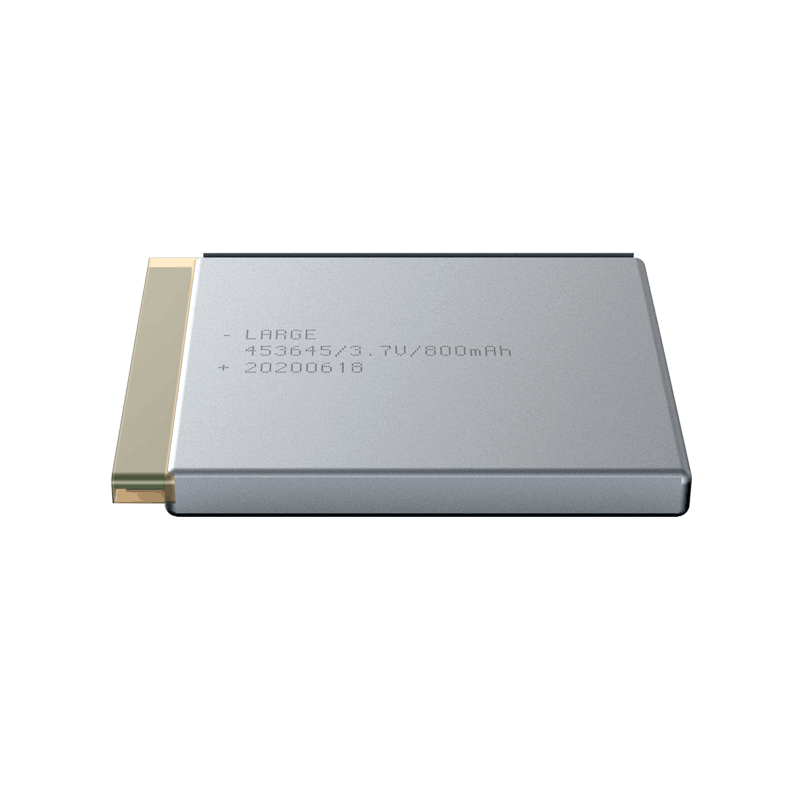

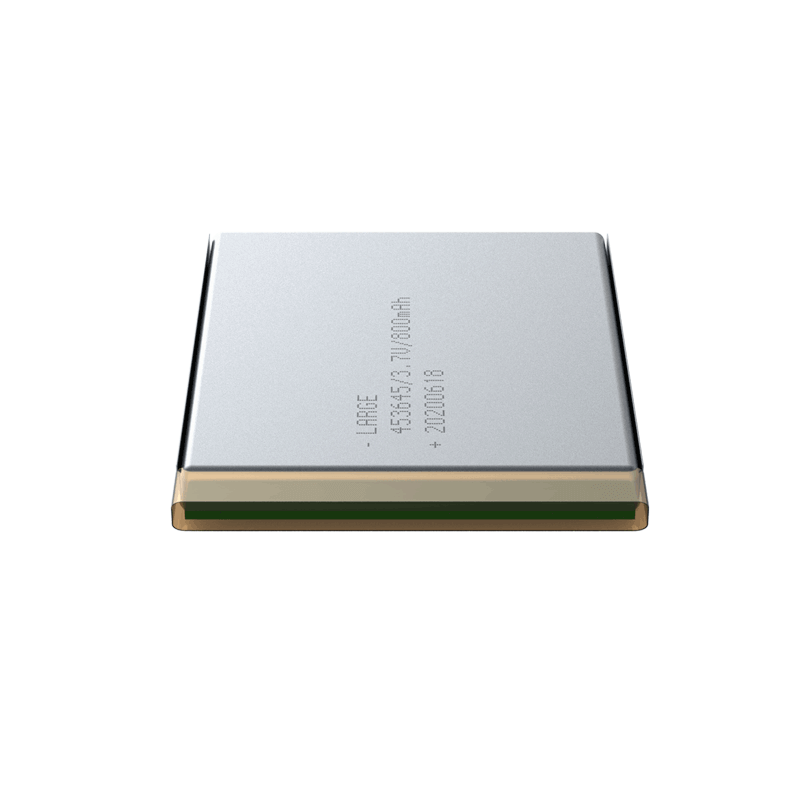

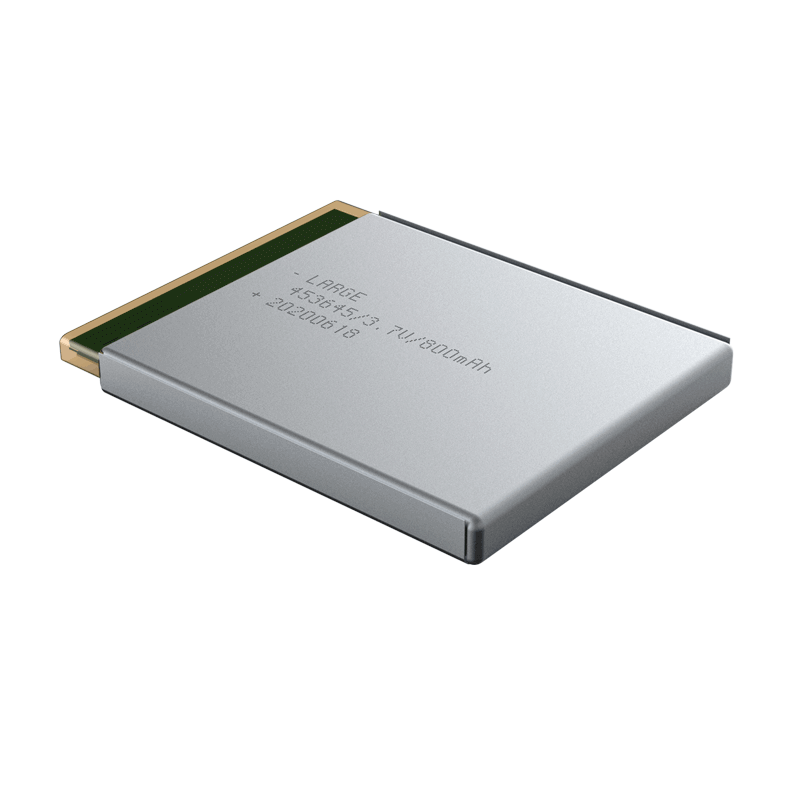

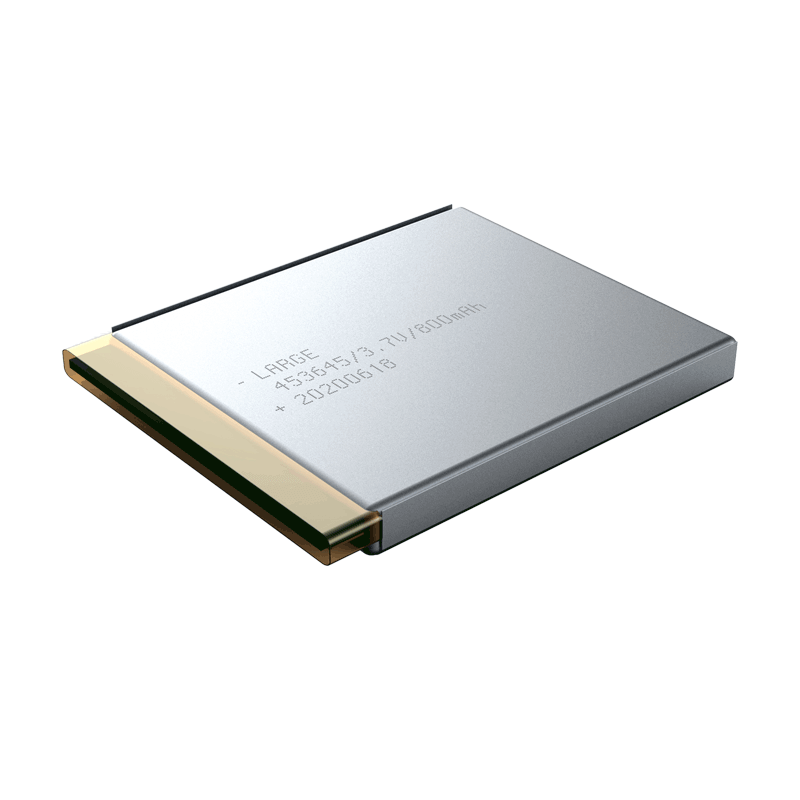

3.7V 800mAh Lithium Polymer Battery for Fetal Monitor Probe

Product number: 04DQ0082-06

Cell model：453645/3.7V/800mAh

Battery specification: 453645-1S1P/3.7V/800mAh

Nominal voltage：3.7V

Nominal capacity：800mAh

Charging voltage: 4.2V

Charging current: ≤0.4A

Discharging current: 0.2A

Instant discharging current: 0.8A

End-off voltage: 3.0V

Internal resistance: ≤200mΩ

Battery weight: 0.02Kg

Product dimension: 49*37*4.6mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60℃

Storage temperature: -20～35℃

Battery case: flexible package

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection, etc.

Application field: medical equipment, fetal monitor probe
