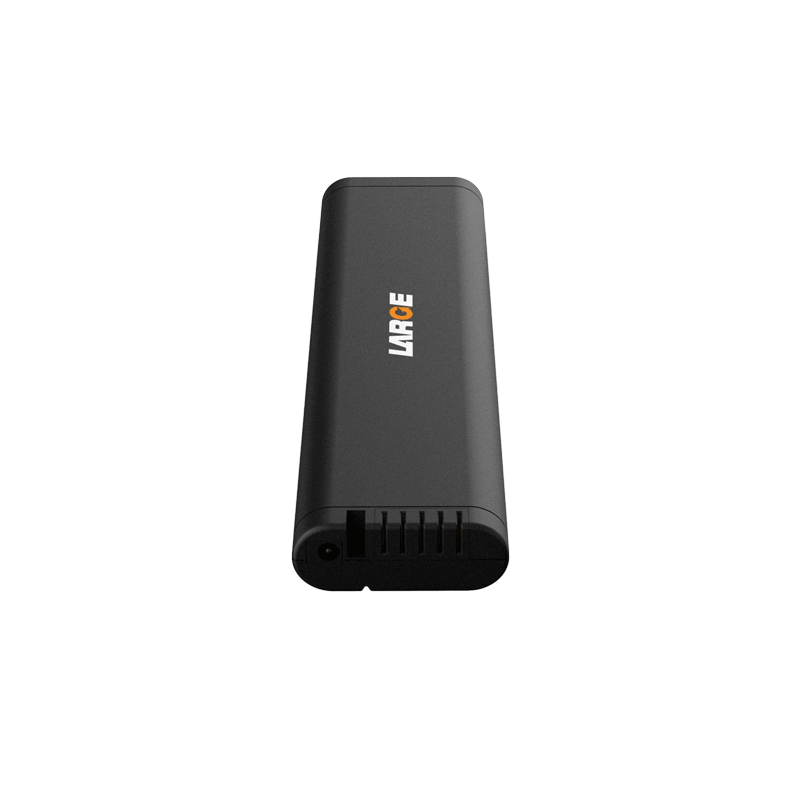

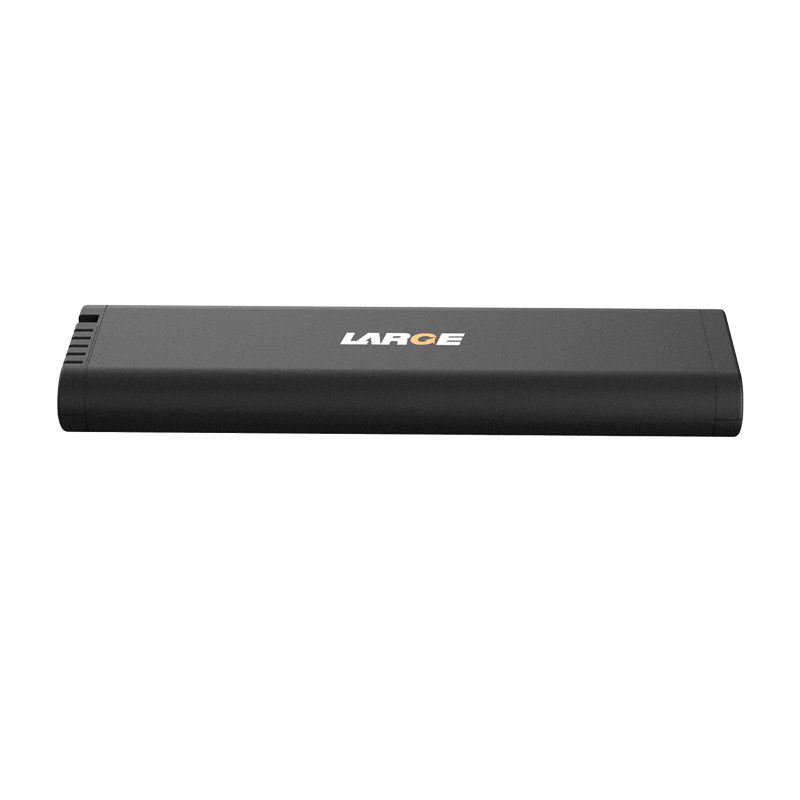

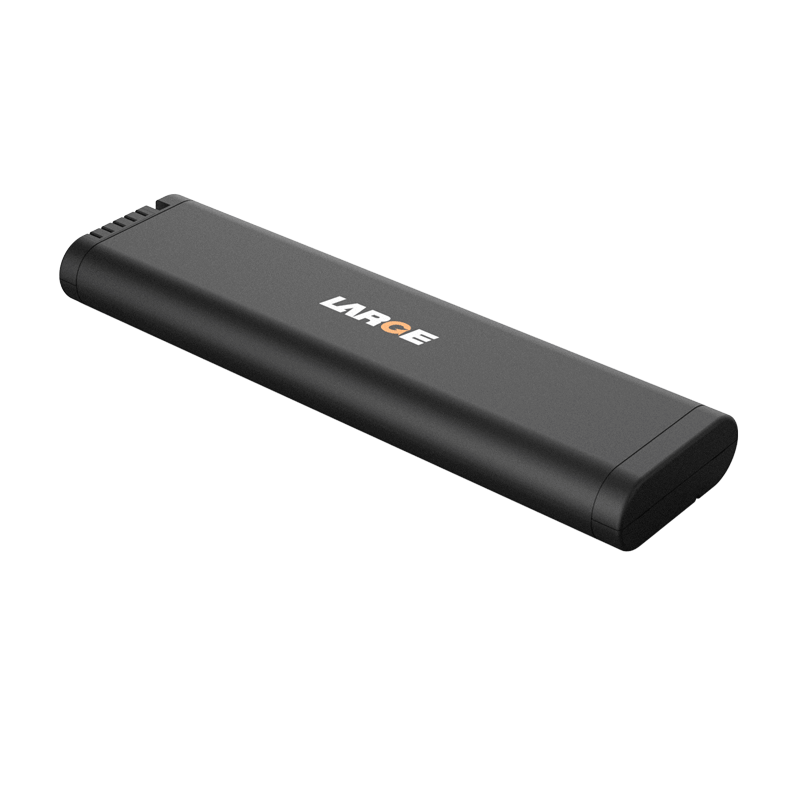

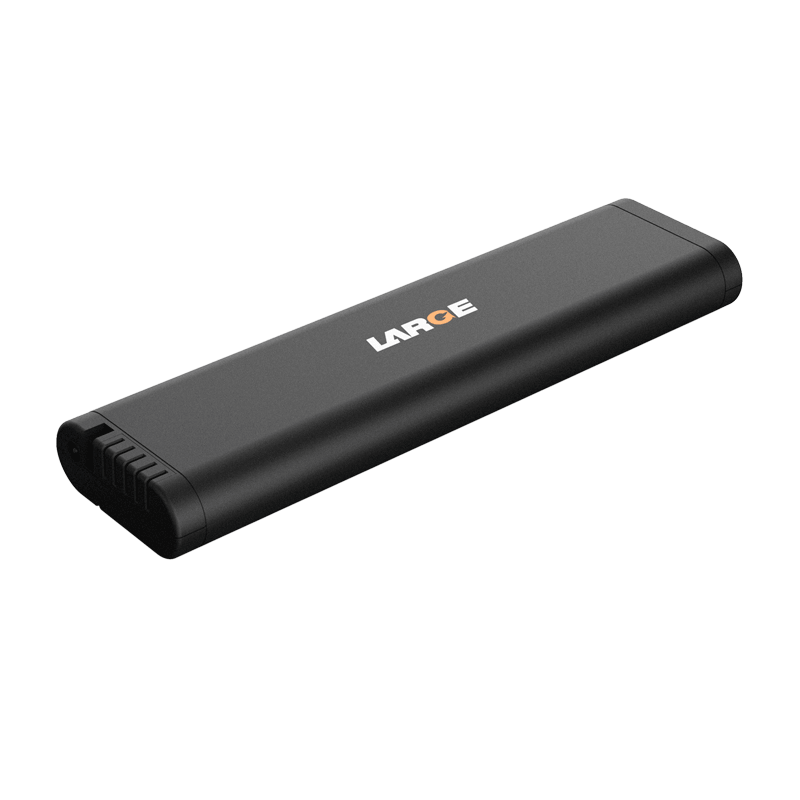

18650 10.8V 10Ah Samsung Battery for Instruments and Apparatus

Product Detail

Product number: 37DZ073-01

Cell model:18650/3.6V/3.4Ah

Battery specification: 18650-3S3P/10.8V/10Ah

Nominal voltage:10.8V

Nominal capacity:10Ah

Charging voltage: 12.6V

Charging current: ≤5A

Discharging current: 5A

Instant discharging current: 8.25A

End-off voltage: 8.1V

Internal resistance: ≤200mΩ

Battery weight: 535g

Product dimension: 213.7*58.5*22.6 mm(±1mm)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~45℃

Battery case: PC+ABS case

Data communication: SMBUS

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, charging overcurrent protection, discharging overcurrent protection, over temperature protection, etc.

Application field: instruments and apparatus


Product features

1. Hardware output connector: adopt the gold-plated shrapnel output mode to increase the conductivity reliability.

2. Data communication management: using Seiko IC+TI software management chip, accurate data transmission and precise temperature control, to eliminate security risks to the greatest extent.

3. The battery pack has good security, nice low-temperature performance and long cycle life.

4. The battery has a pull tap design on the surface, which is easy to carry the battery.

5. The battery has plastic case structure against impact.

6. Low self-discharge

7. The battery has LED power display.

*
*
*
