Custom Lithium ion Battery Pack

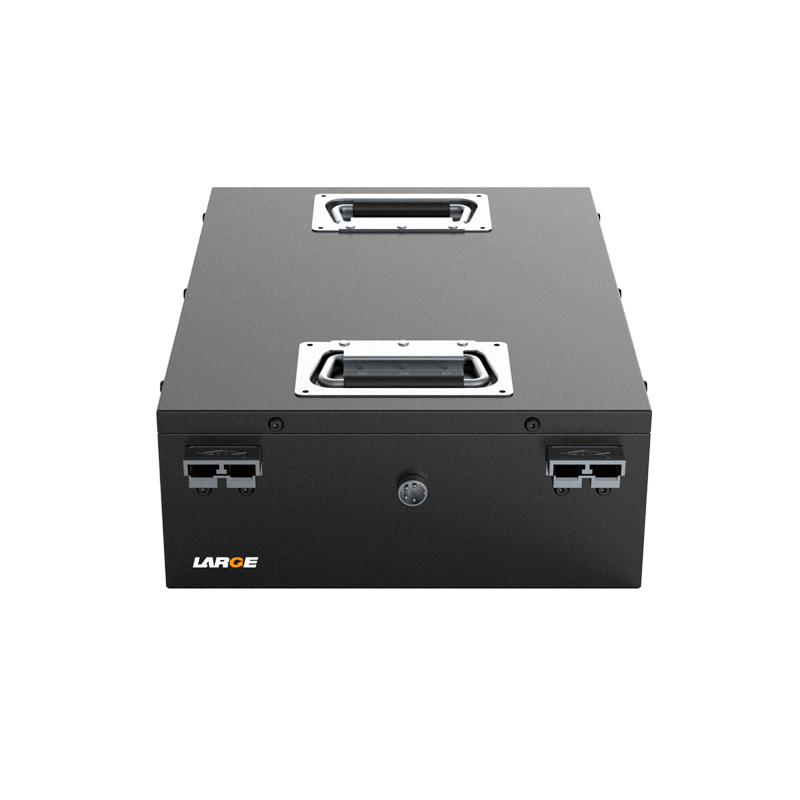

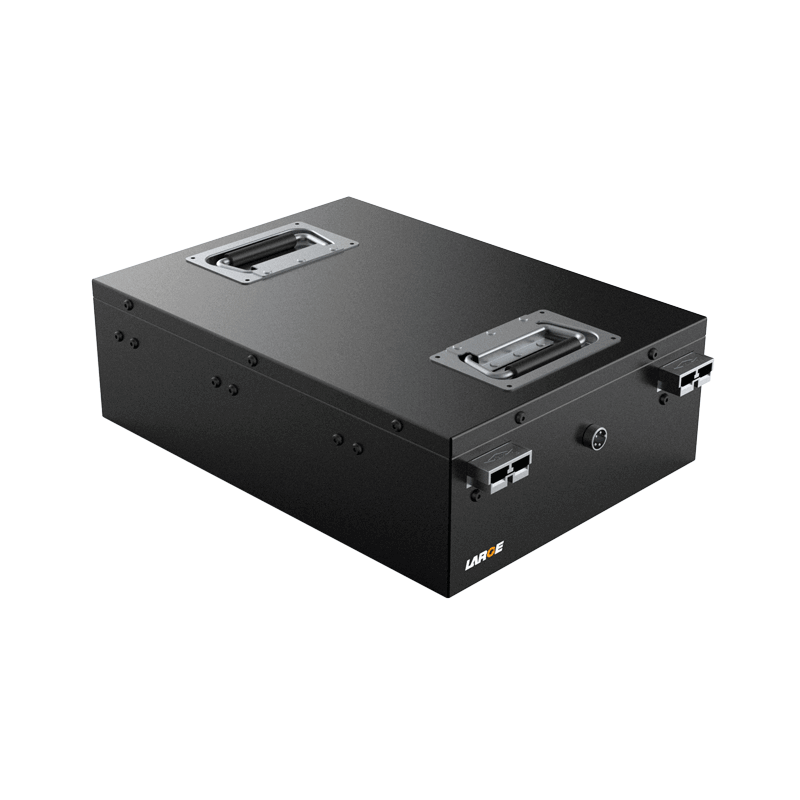

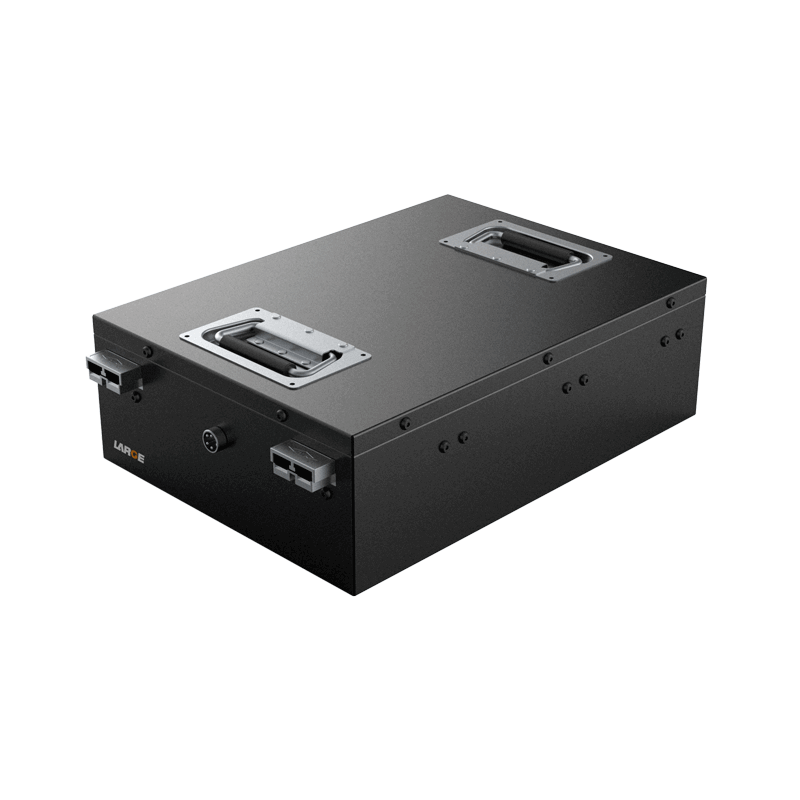

26650 48B 20AH Lithium Iron Phosphate Battery Pack For Vehicle Safety Monitoring Equipment With RS485 Communication protocol

Product Detail

Product number: 04DQ0084-01

Cell model:26650/2500mAh/3.2V

Battery specification: 26650-15S8P/20Ah/48V

Nominal voltage:48V

Nominal capacity:20Ah

Charging voltage: 54V

Charging current: 4A

Discharging current: 4A

Maximum discharging current: 200A

End-off voltage: 34.5V

Internal resistance: ≤100mΩ

Battery weight: 13KG

Product dimension: 402.0*295.5*127.0mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~60℃ (less than a month)

Battery case: metal case

Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection ,over current protection, etc.

Application field: vehicle safety monitoring equipment

Product features

1.Battery management: using TI charging management chip with high stability, high precision monitoring, precise control, temperature protection and other functions, which can eliminate the potential safety hazard to the maximum extent.

2.Metal shell increases the reliability and firmness of the battery.

3. Connector output terminal: Gold plated shrapnel output mode is adopted to increase conductivity reliability and stability.

4.Data communication management: with RS485 communication transmission, accurate data transmission and precise temperature control, the hidden danger of safety can be eliminated to the maximum extent.

5. The battery pack has good security and nice discharge performance.

6. The battery pack conforms to the principle of low carbon, energy conservation and environmental protection.
