Custom Lithium ion Battery Pack

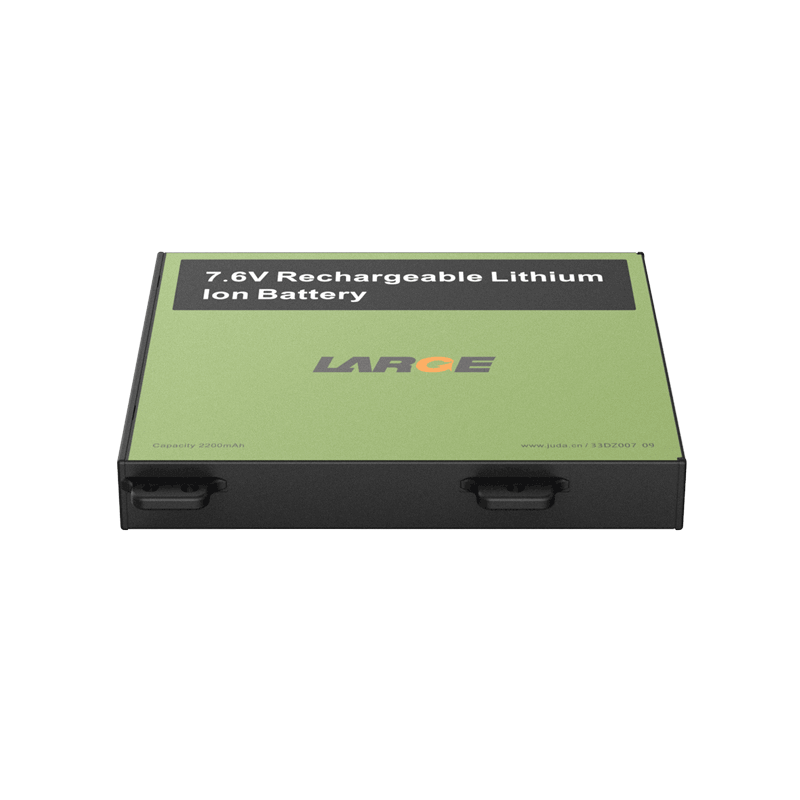

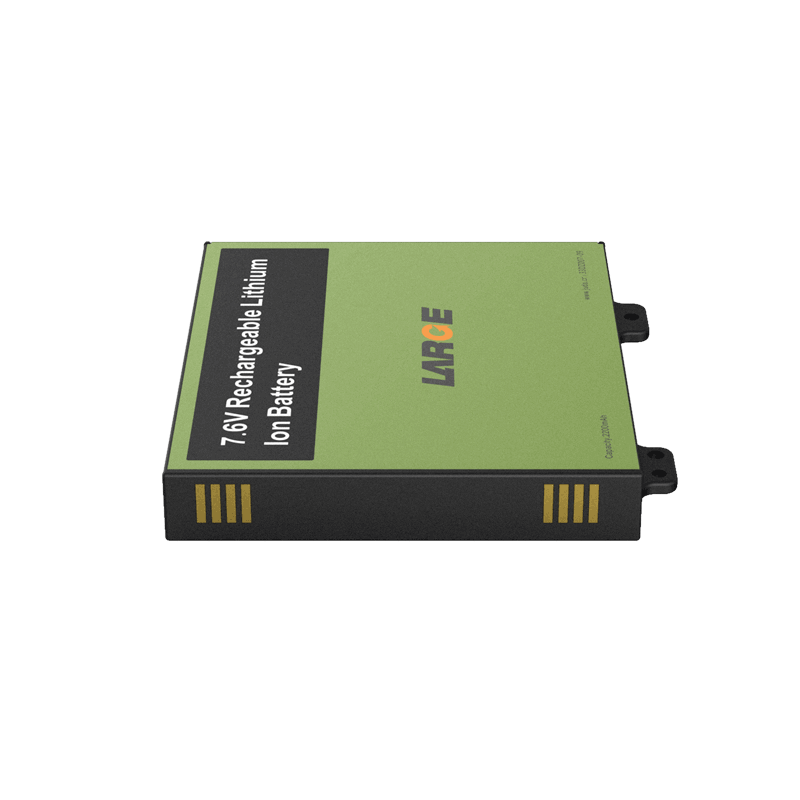

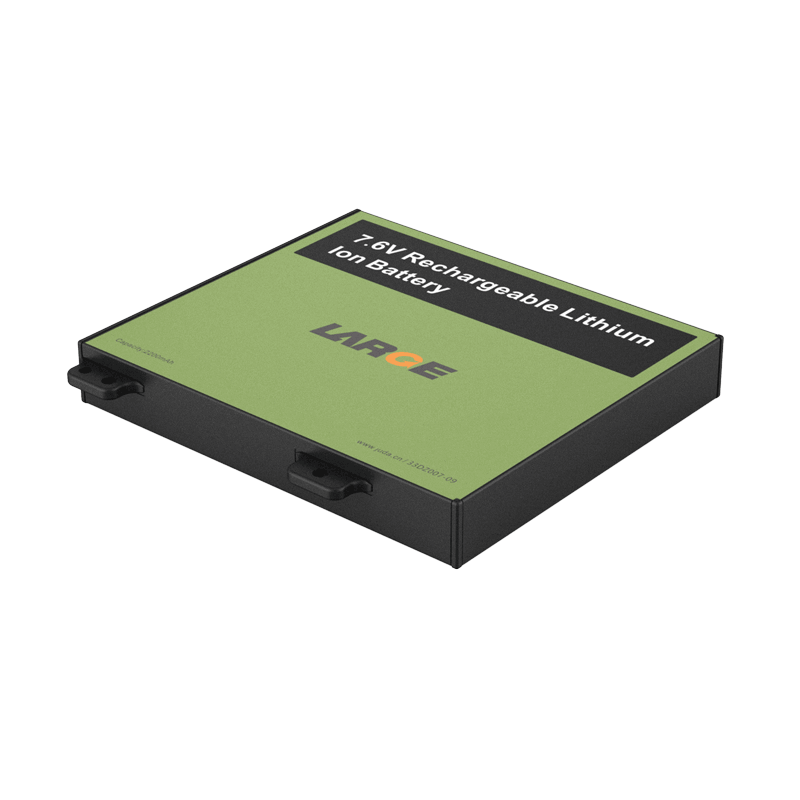

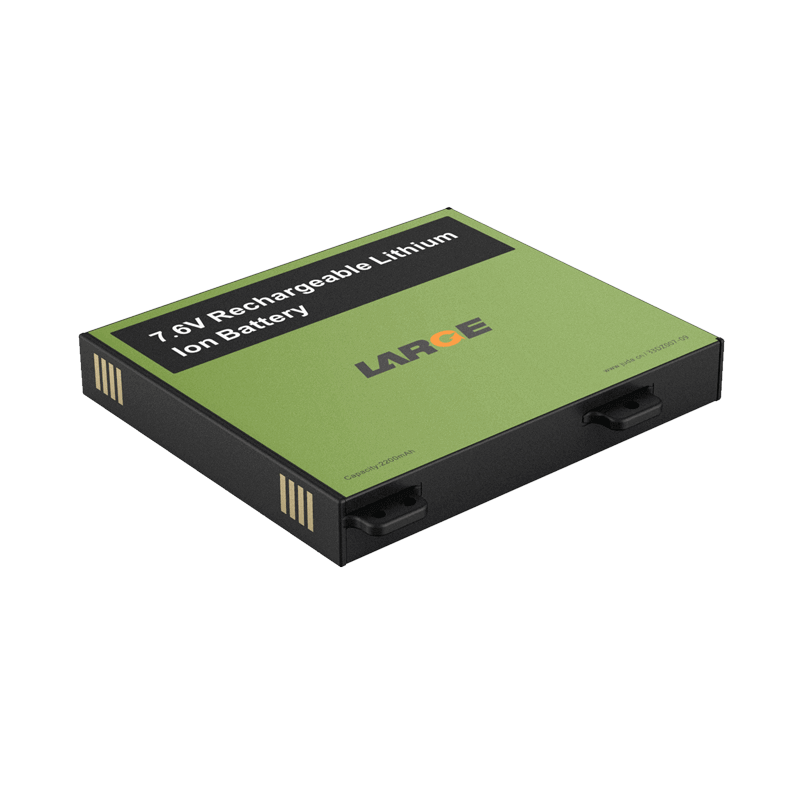

7.6V 2200mAh Low Temperature -40℃ Lithium Polymer Battery Pack For Hand-held Tablet With IIC Communication Protocol

Product Detail

Product number: 33DZ007-09

Cell model:LA486068/2200mAh/3.70V

Nominal voltage:7.4V

Nominal capacity:2200mAh

Charging voltage: 8.4V

Charging current: ≤1.1A

Discharging current:1.1A

Instant discharging current: 2.2A

End-off voltage: 5V

Internal resistance: ≤150mΩ

Battery weight: 100g

Product dimension: L*W*H 73*68.5*10.5 mm

Charging temperature:0~45℃

Discharging temperature: -40~55℃

Storage temperature: -20~45℃

Battery case: industrial battery case

Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection, over current protection, equalization, IIC communication protocol, etc.

Application field: hand-held tablet

Product features

1.The maximum sustainable discharge of the battery is 1.65A. It can discharge more than 80% capacity at - 40 ℃.

2.Data communication management: The imported software management chip and IIC communication function are adopted to realize accurate data transmission and precise temperature control, so as to eliminate potential safety hazards to the maximum extent.

3.Cell characteristics: self developed ultra-low temperature - 40 ℃ polymer cell is adopted.

4.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
