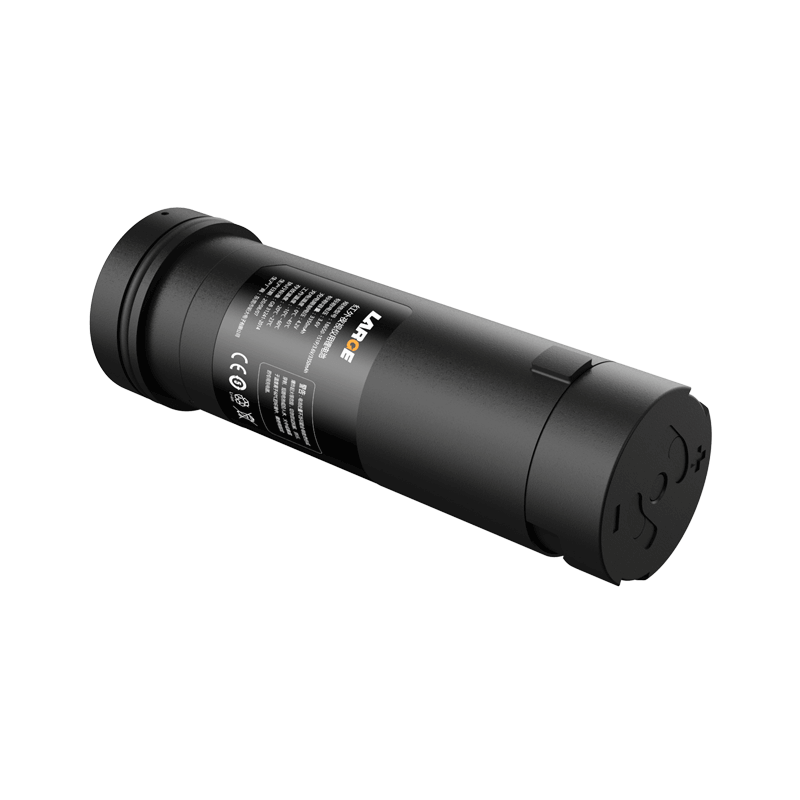

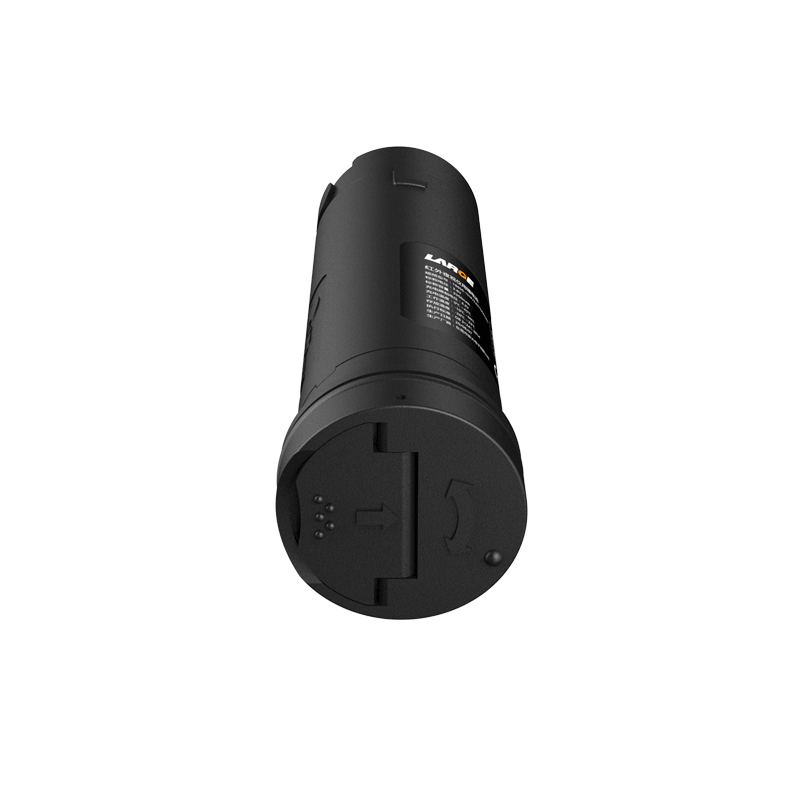

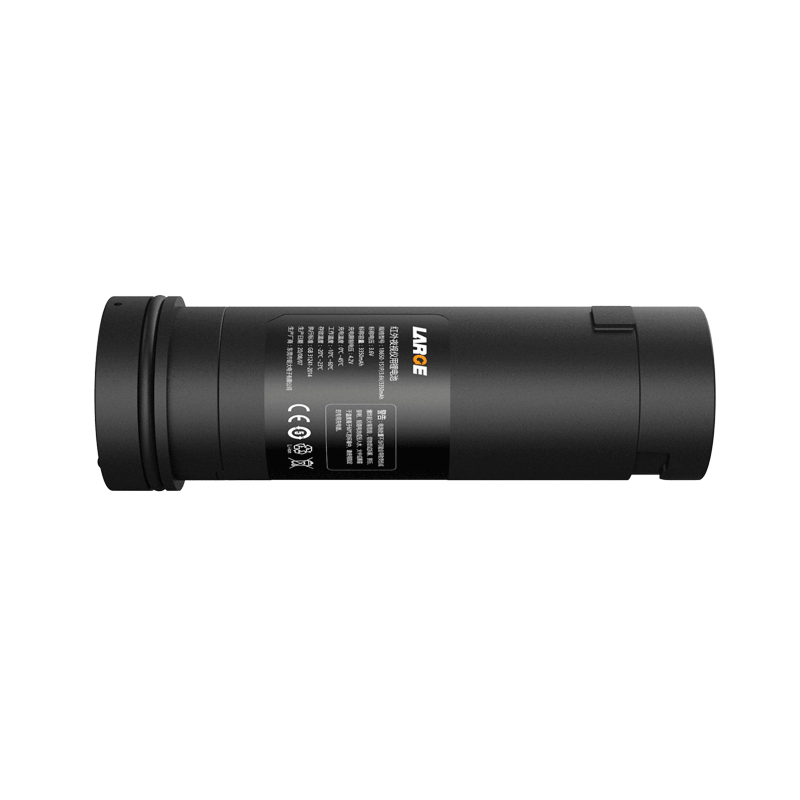

18650 3.6V 3350mAh Samsung Lithium Battery For IR Night vision device

Product Detail

Product number: 36AQ517-01

Cell model:18650-3.6V/3350mAh(35E)

Battery specification: 18650-1S1P/3.6V/3350mAh

Nominal voltage:3.6V

Nominal capacity:3350mAh

Charging voltage: 4.2V

Charging current: ≤1.5A

Discharging current: 2A

Instant discharging current: 3A,3~4S

End-off voltage: 2.8V

Internal resistance: ≤180mΩ

Battery weight: 80g

Product dimension: φ24.3*74(mm)

Charging temperature:0~45℃

Discharging temperature: -10~60℃

Storage temperature: -20~23℃ (less than 12 month)

Battery case: PA66+30%GF

Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection, over current protection.

Application field: Portable industrial equipment


Product features

1.Imported cell: The battery pack has good security and long cycle life.

2.Special shape design: the battery can be customized for various special structures, and the battery shell is removable and easy to replace.

3.The battery adopts anti drop design.
