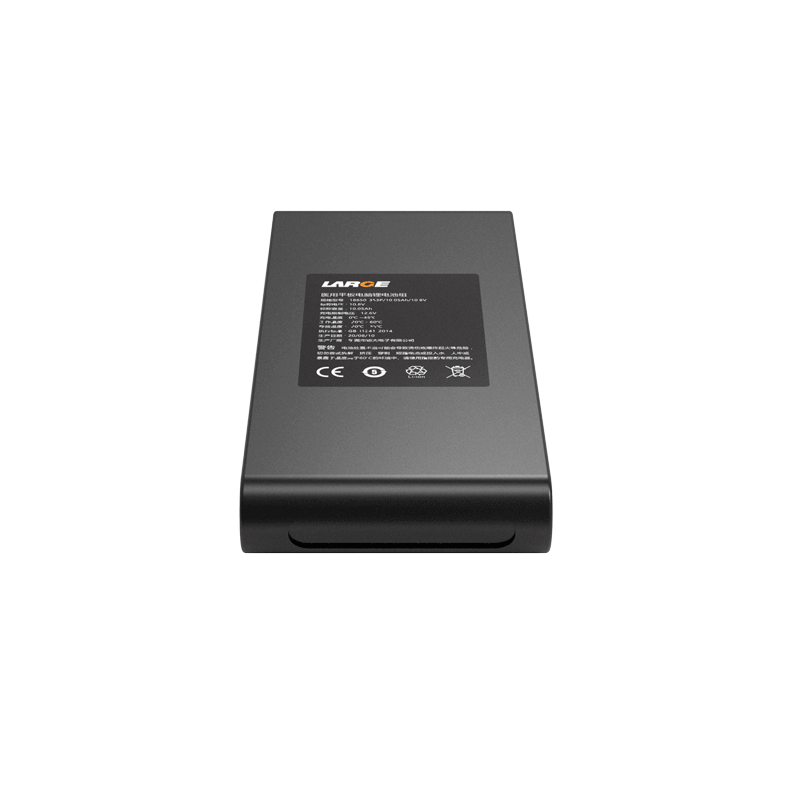

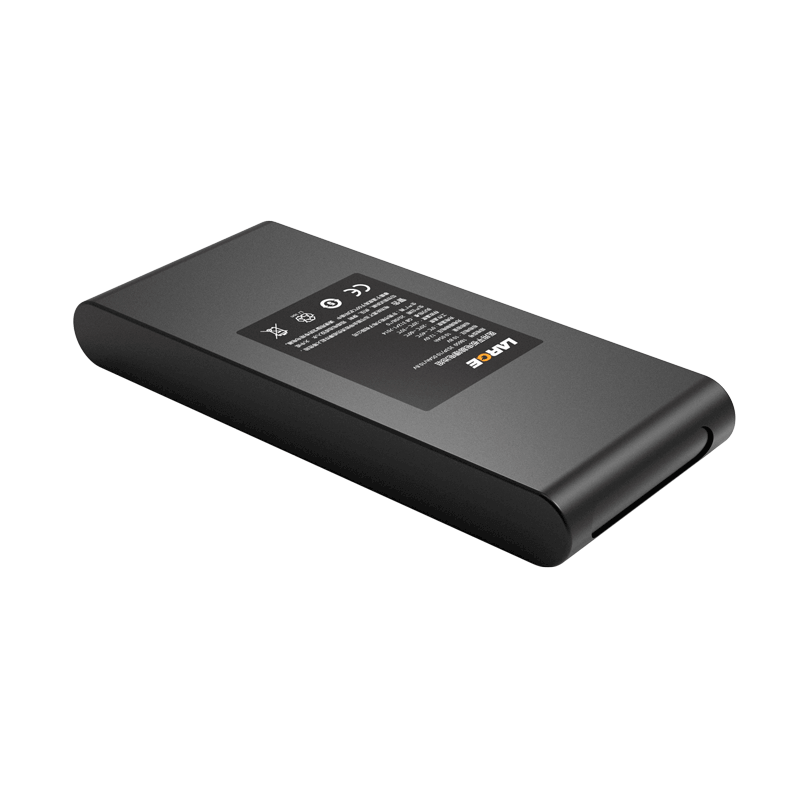

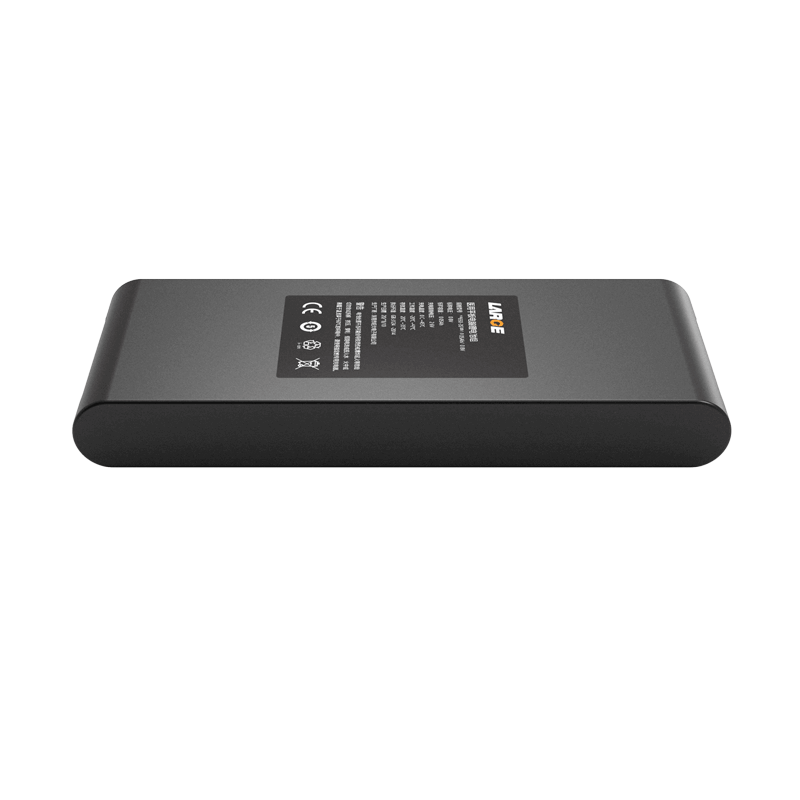

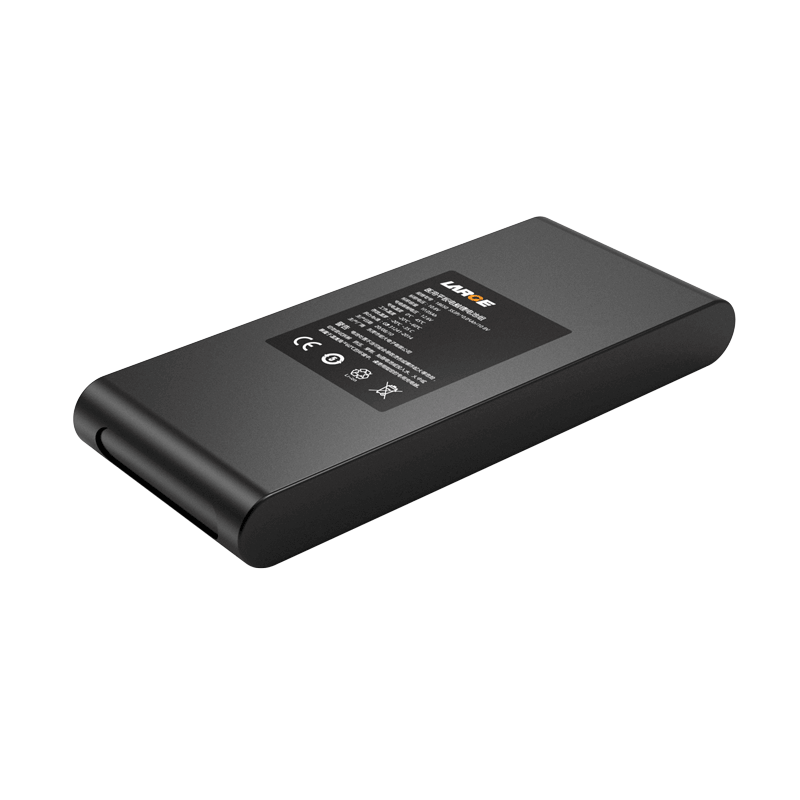

18650 10.8V 10.05Ah Samsung Lithium Battery Pack For Medical Tablet Computer With SMBUS Communication Protocol

Product Detail

Product number: 08DQ0017-02
Cell model:18650-3350mAh-3.6V
Battery specification: 18650-3S3P/10.05Ah/10.8V
Product dimension: 169*73*21mm(Max)
Nominal voltage:10.8V
Nominal capacity:10.05Ah
Charging voltage: 12.6V
Charging current: ≤4A
Discharging current: ≤4A
End-off voltage: 5.0V
Internal resistance: ≤330mΩ
Battery weight: 500g
Charging temperature:0~45℃
Discharging temperature: -20~60℃
Storage temperature: -20~35℃
Battery case: blue PVC heat shrinkable film
Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection, over current protection, ESD protection, etc.
Application field: portable medical devices, tablets, laptops and other portable devices


Battery feature
1.Blue PVC heat shrinkable film package is simple and reliable, and it is easy to install.
2.Connector plug: JST plug output mode is adopted to increase conductive reliability.
3.Data communication management: Using TI-SMBus software management chip with SMBus communication precise data transmission and precise temperature control, which can eliminate the potential safety hazard to the maximum extent.
4.Battery management: using TI charging management chip with high stability, high precision monitoring, precise control, ESD protection and temperature protection, which can eliminate the potential safety hazard to the maximum extent.
5.The battery pack has good security, nice discharge performance and long cycle life.
6.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
