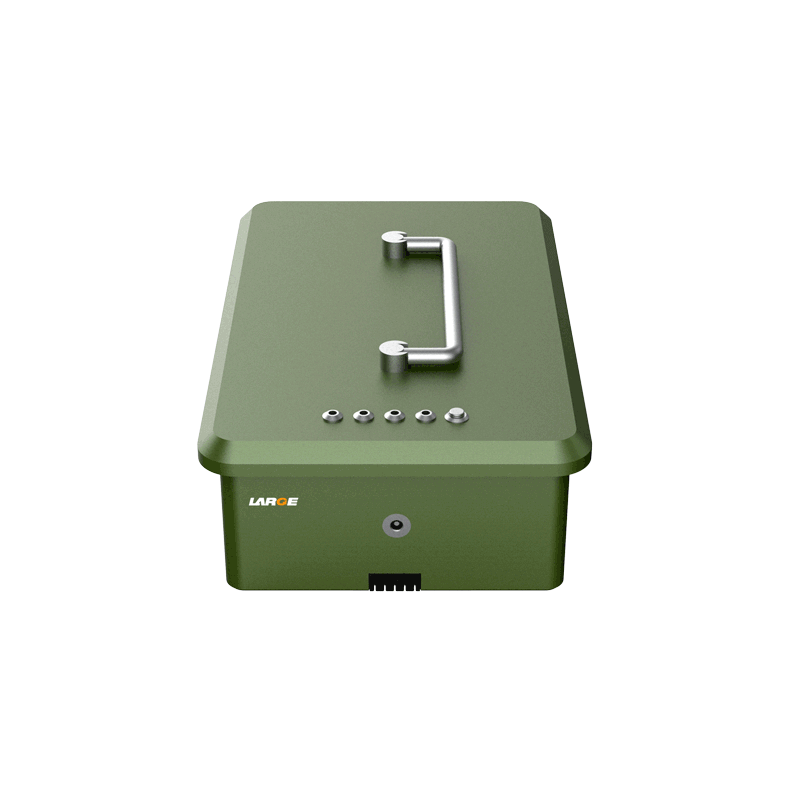

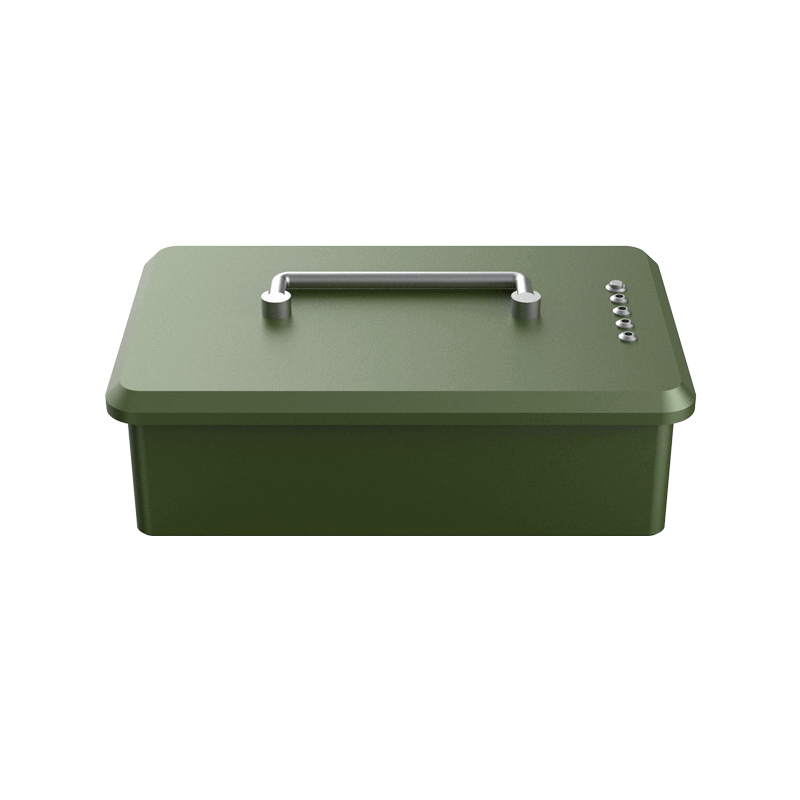

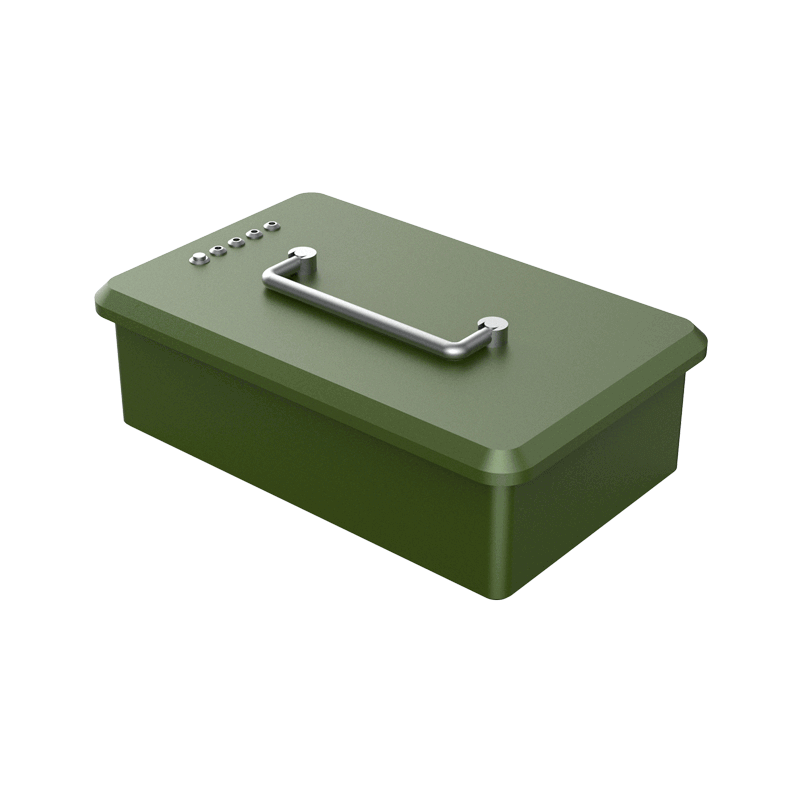

Custom Lithium ion Battery Pack

18650 25.2V 28.6Ah Low Temperature High Power Battery Ternary Battery for Rbital Instrumentation

Product Detail

Product number: 08DQ0025-01

Cell model:18650-2600mAh-3.6V

Battery specification: 18650-7S11P/28.6Ah/25.2V

Product dimension: 300×190×90mm

Nominal voltage:25.2V

Nominal capacity:28.6Ah

Charging voltage: 29.4V

Charging current: ≤7A

Discharging current: 6.8A

Instant discharging current: 10A

End-off voltage: 17.5V

Internal resistance: ≤150mΩ

Battery weight: 6000g

Charging temperature:0~45℃

Discharging temperature: -40~60 ℃

Storage temperature: -20~35 ℃

Battery case: aluminium case

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, over temperature protection, over current protection and ESD protection

Application field: portable ultrasonic exploration equipment,portable mapping equipment, Orbital instrumentation

Product features

1. The battery has high low-temperature rate, supports -40℃ discharging, and can discharge more than 90%.

2. The battery pack has good security , nice low temperature discharge performance and long cycle life.

3. Hardware output: Adopt metal plate output mode to increase conductive reliability.

4. Battery protection management: Adopt TI-SMBus software management chip with accurate data transmission, accurate temperature control so as to try our best to eliminate the security risks.

5.Data communication management: Adopt 485 communication data transmission, accurate temperature control, real-time battery status monitoring and controlling  so as to try our best to eliminate the security risks.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
