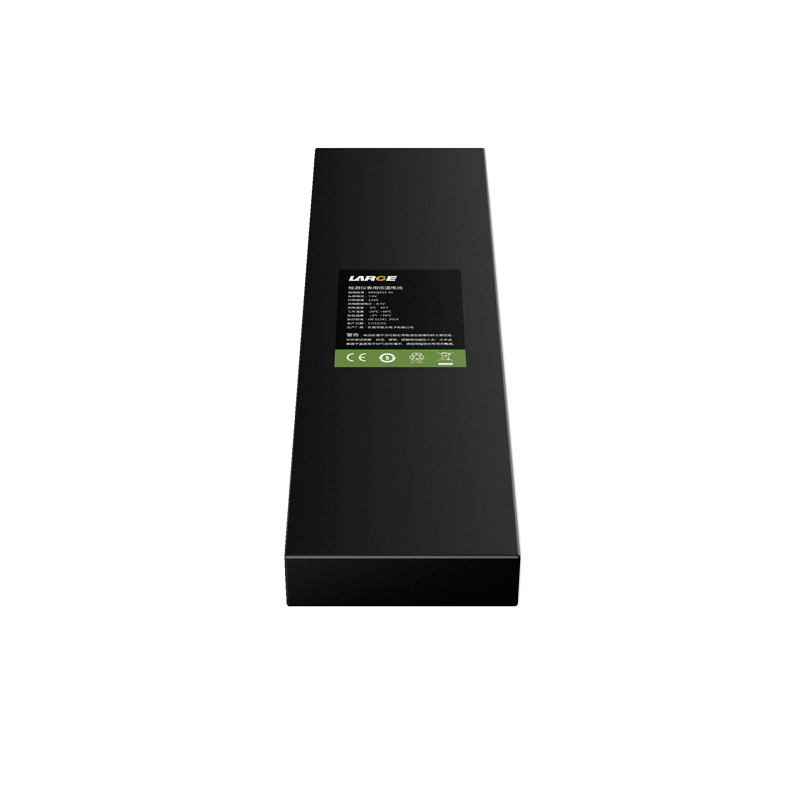

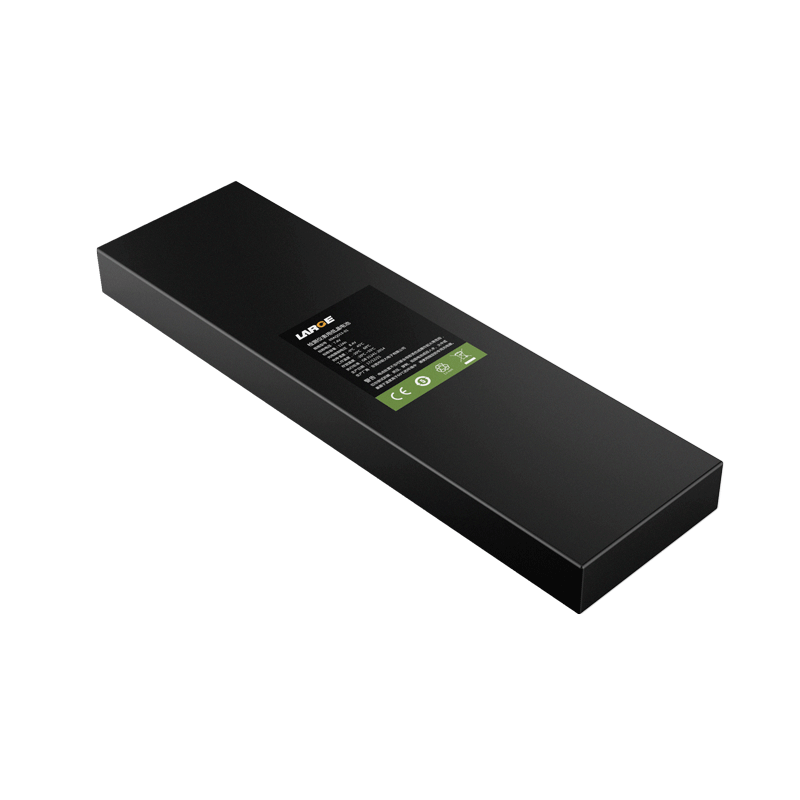

Custom Lithium ion Battery Pack

7.4V 12Ah 18650 Low Temperature Lithium Battery for Measuring Instrument

Product Detail

Product number: 09AQ534-01

Cell model:18650/3.7V/2000mAh

Battery specification: 18650-2S6P/7.4V/12Ah

Nominal voltage:7.4V

Nominal capacity:12Ah

Charging voltage: 8.4V

Charging current: ≤2A

Discharging current: 2A

Instant discharging current: 2.5A

End-off voltage: 2.4V

Internal resistance: ≤150mΩ

Battery weight: 600g

Product dimension: 248*70.5*21mm(Max)

Charging temperature:0~45℃

Discharging temperature: -40~60 ℃

Storage temperature: -20~35 ℃

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: low temperature tester, low temperature military weapon
