Custom Lithium ion Battery Pack

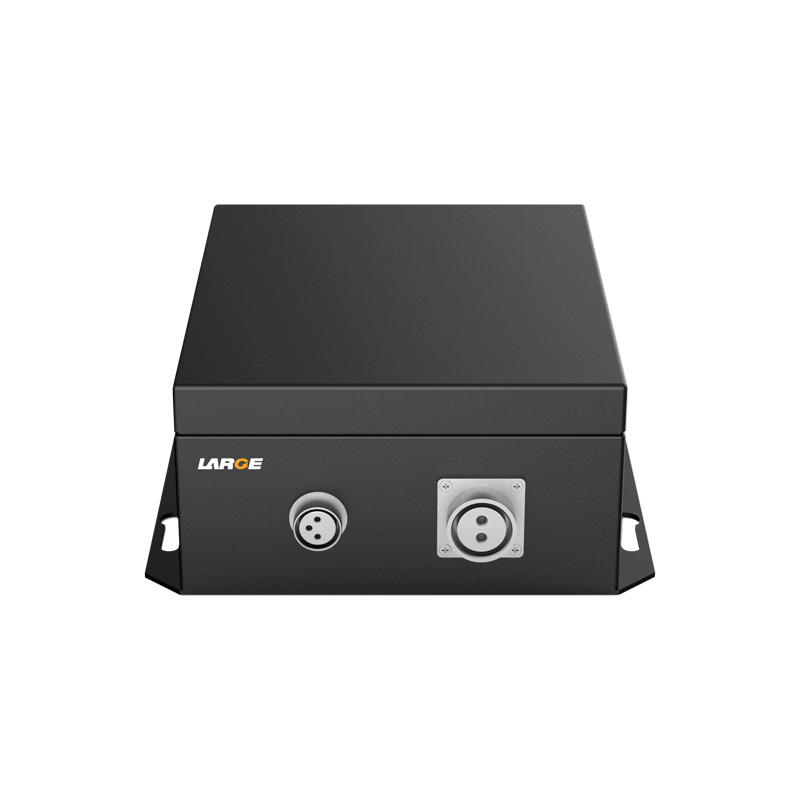

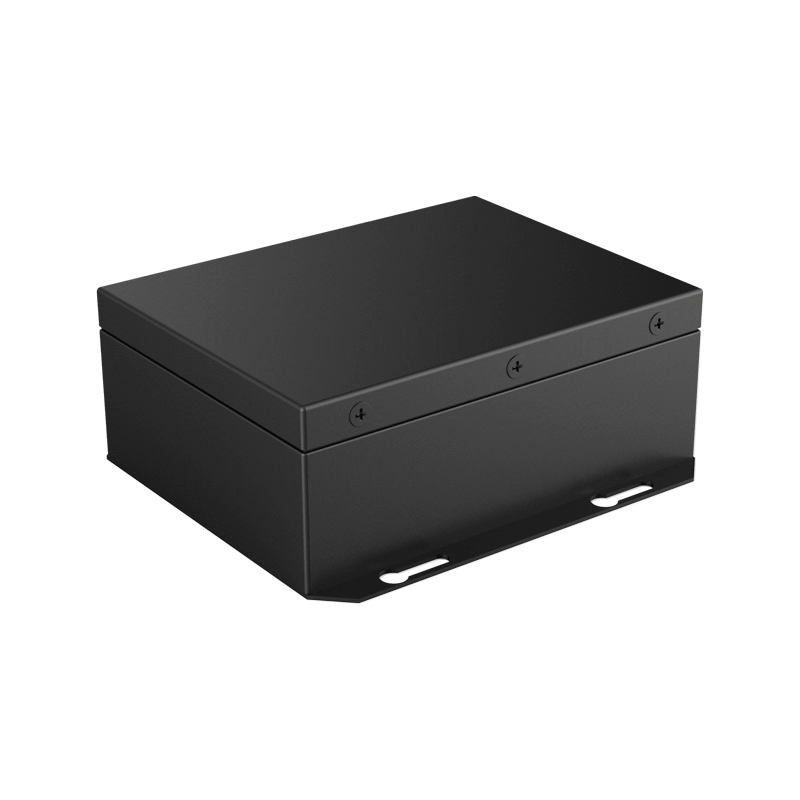

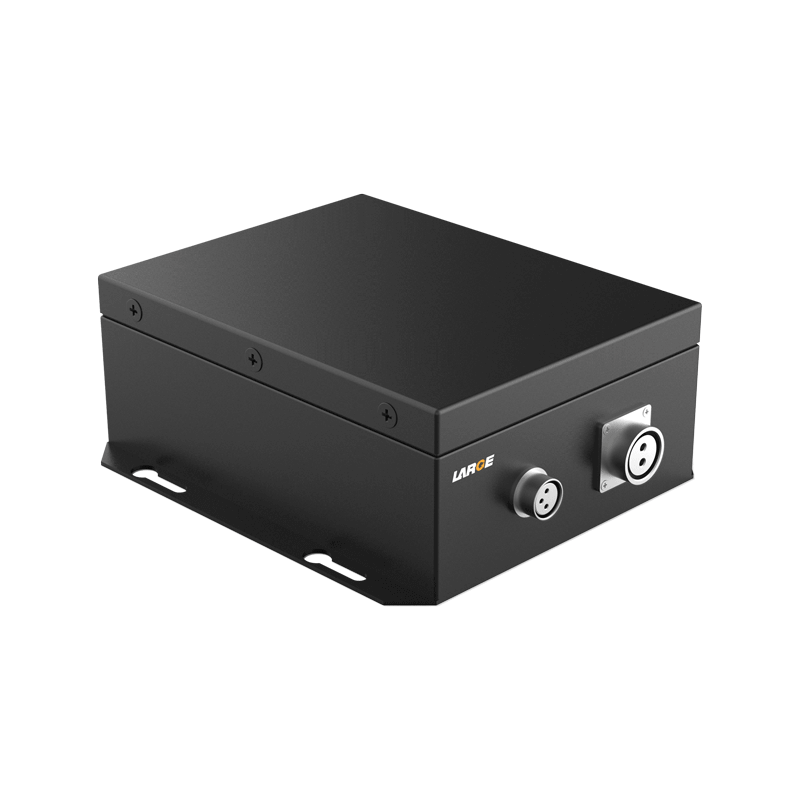

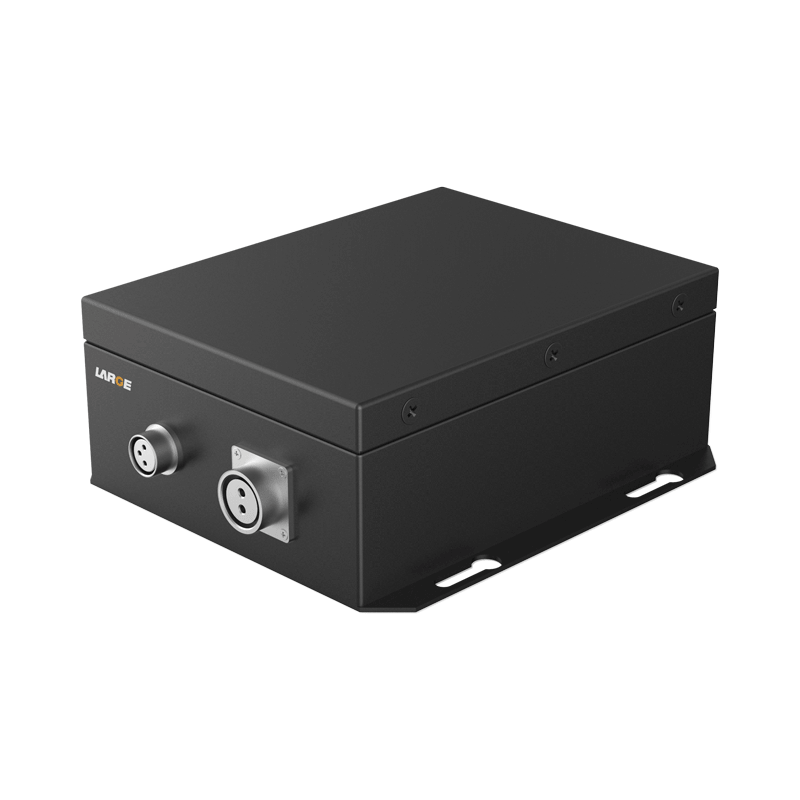

24V 26Ah 18650 Lithium Ion Battery Panasonic Battery for Emission Instrument of Special Equipment

Product Detail

Product number: 03EQ111-01

Cell model:18650/3.6V/3.35Ah

Battery specification: 18650-7S8P/24V/26.8Ah

Nominal voltage:24V

Nominal capacity:26.8Ah

Charging voltage: 25.2V

Charging current: ≤5A

Discharging current: 7A

Instant discharging current: 15A15ms

End-off voltage: 19.6V

Internal resistance: ≤150mΩ

Battery weight: 4.0kg

Product dimension: 210*165*80mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~60 ℃

Temperature protection: 65℃±5℃

Battery case: metal plate housing

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, 485 communication, etc.

Application: industrial machinery equipment, emergency power supply of portable emission instrument, etc.

Product features

1. Communication function: RS485 communication protocol; can monitor the battery information of voltage, current, capacity, temperature, etc.

2. Fast connect: adopt push-pull self-locking aviation connector, which is efficient, safe and reliable.

3. Data communication management: adopt IC+TI charger management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

4. The battery pack has good security, professional handle, nice low temperature performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

6. Shock-resistant and waterproof: fill in the shock-resistant structure inside the cold rolling metal plate housing to satisfy the requirements of good security and high reliability.
