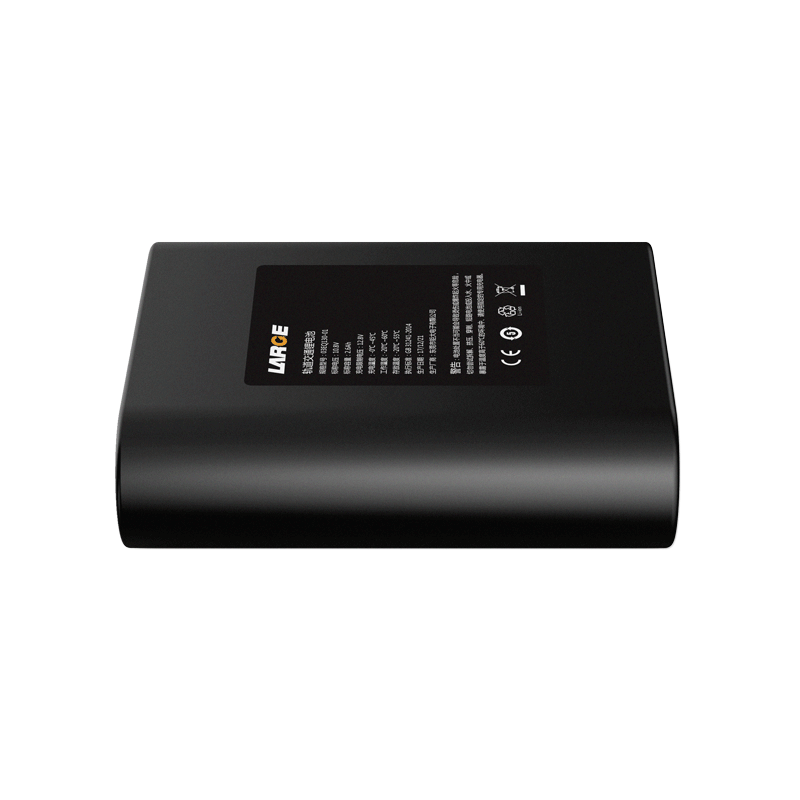

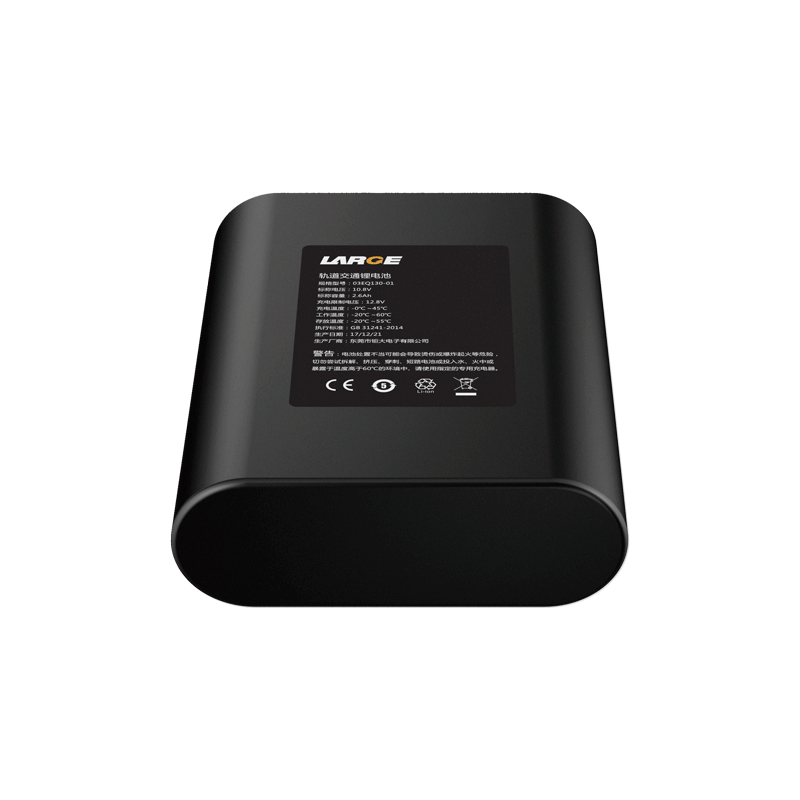

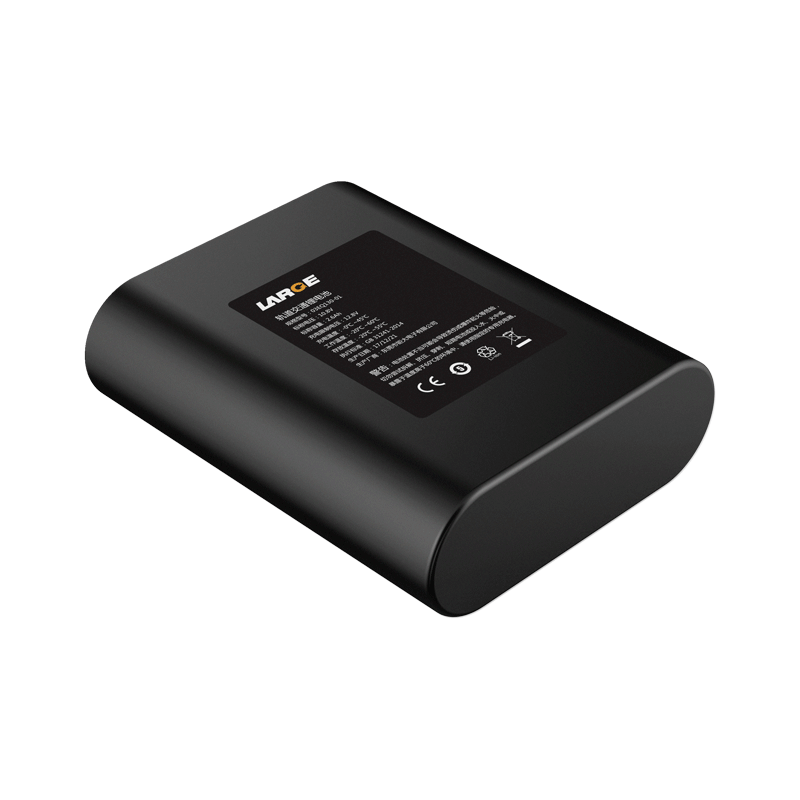

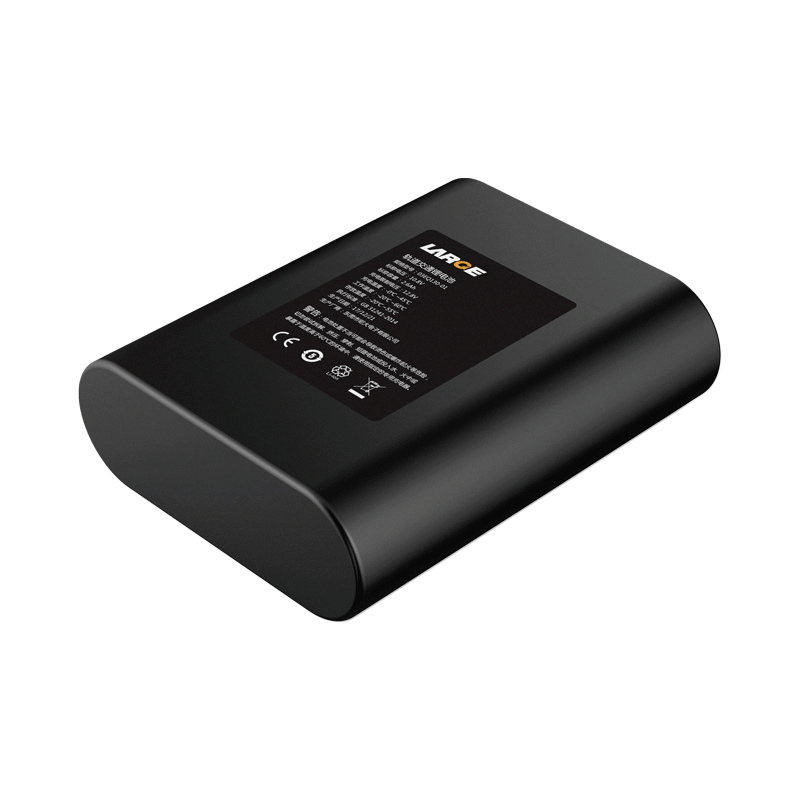

10.8V 2.6Ah 18650 Lithium Ion Battery Lishen Battery for Rail Traffic

Product Detail

Product number: 03EQ130-01

Cell model:18650/3.6V/2.6Ah

Battery specification: 18650-3S1P/10.8V/2.6Ah

Nominal voltage:10.8V

Nominal capacity:2.6Ah

Charging voltage: 12.8V

Charging current: ≤2A

Discharging current: 2A

Instant discharging current: 3.0A

End-off voltage: 7.2V

Internal resistance: ≤200mΩ

Battery weight: 150g

Product dimension: 72*56*19mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: blue PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: special application, rail traffic testing equipment


*
*
*
