Custom Lithium ion Battery Pack

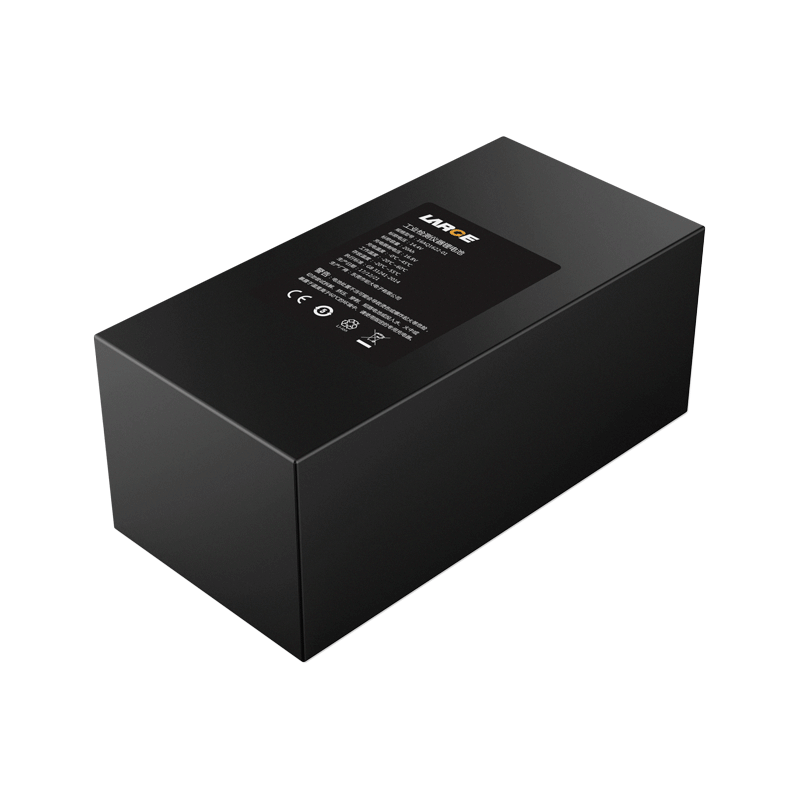

14.4V 20Ah 18650 Lithium Ion Battery Sanyo Battery for Industrial Instrument

  • Model number:16AQ1622-01

  • Nominal voltage:14.4V

  • Nominal capacity:20000mAh

  • Battery cell:18650/3.6V/2.5Ah

  • Dimension:170*85*70mm(Max)

  • Application:industrial instrument, testing equipment

Product Detail

Product number: 16AQ1622-01

Cell model18650/3.6V/2.5Ah

Battery specification: 18650-4S8P/14.4V/20Ah

Nominal voltage14.4V

Nominal capacity20Ah

Charging voltage: 16.8V

Charging current: 5A

Discharging current: 5A

Instant discharging current: 10A

End-off voltage: 12.0V

Internal resistance: 120mΩ

Battery weight: 2000g

Product dimension: 170*85*70mmMax

Charging temperature045

Discharging temperature: -2060

Storage temperature: -2035

Battery case: blue PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: industrial instrument, testing equipment

*
*
*
