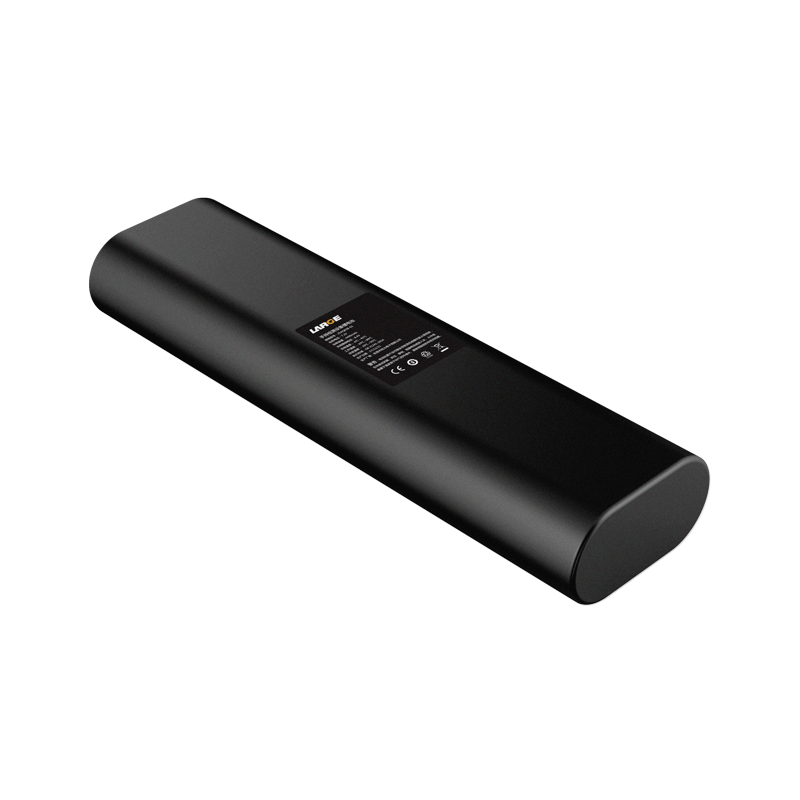

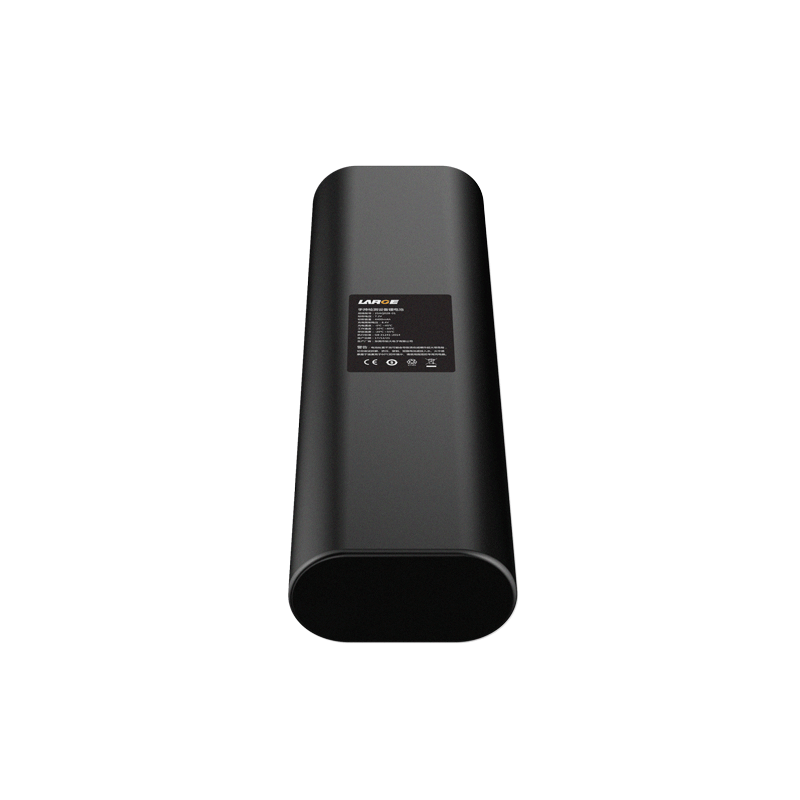

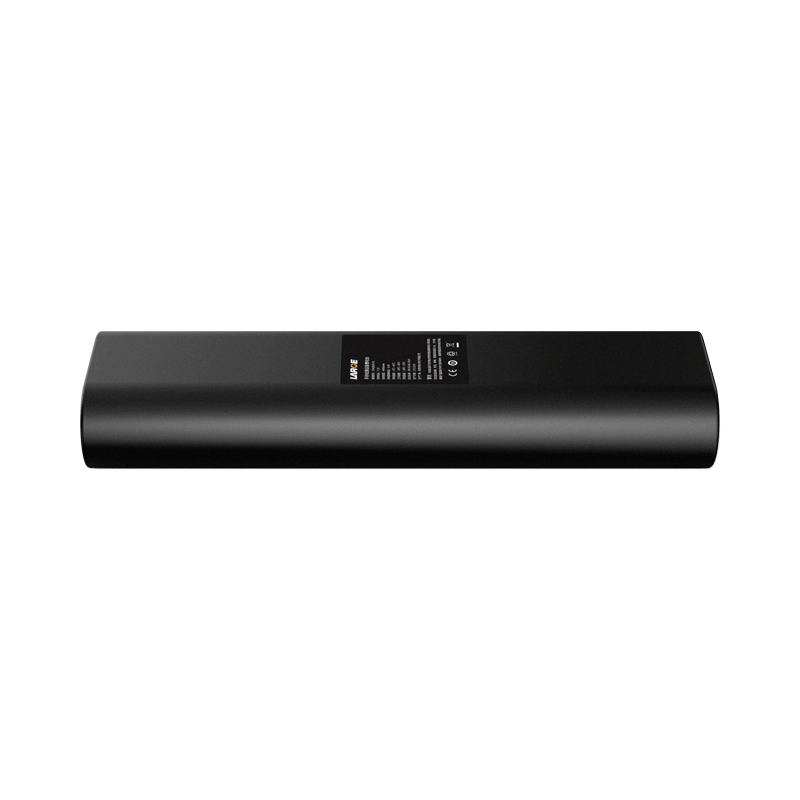

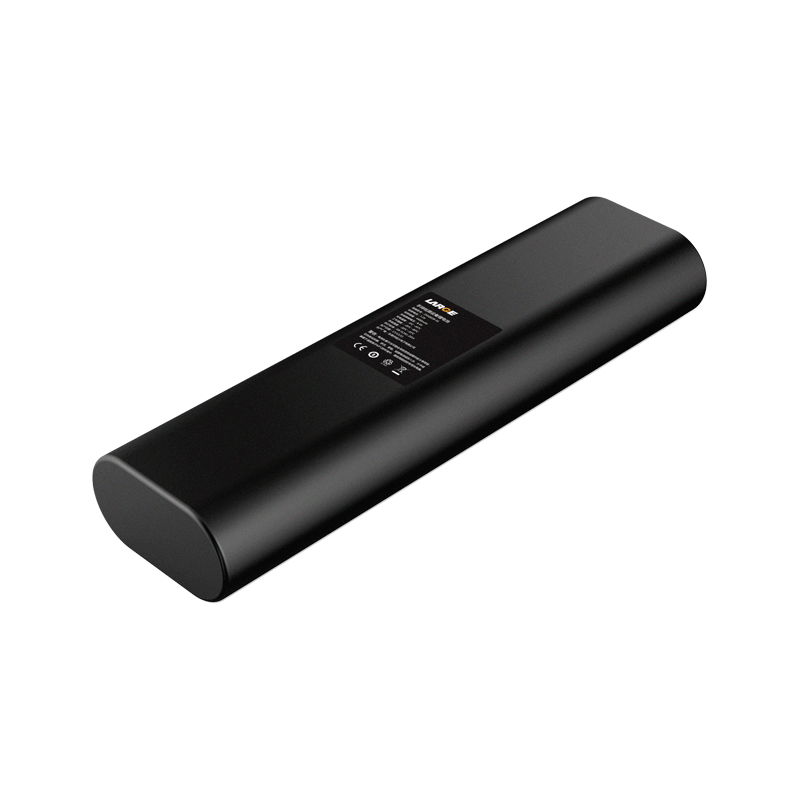

Custom Lithium Ion Battery Pack

7.4V 4.4Ah 18650 Lithium Ion Battery BIC Battery for Handheld detector

  • Model number:25AQ028-01

  • Nominal voltage:7.2V

  • Nominal capacity:4400mAh

  • Battery cell:18650/3.7V/2200mAh

  • Dimension:133*38*20mm(Max)

  • Application:handheld detector, measurement and control instruments, etc.

Product Detail

Product number: 25AQ028-01

Cell model18650/3.7V/2200mAh

Battery specification: 18650/2S2P/7.2V/4400mAh

Nominal voltage7.2V

Nominal capacity4400mAh

Charging voltage: 8.4V

Charging current: 2000mA

Discharging current: 2000mA

Instant discharging current: 3000mA

End-off voltage: 6.0V

Internal resistance: 180mΩ

Battery weight: 260g

Product dimension: 140*71.1*13.85mmMax

Charging temperature045

Discharging temperature: -2060

Storage temperature: -2035

Battery case: PVC

Lithium-ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: handheld detector, measurement and control instruments, etc.
