Custom Lithium ion Battery Pack

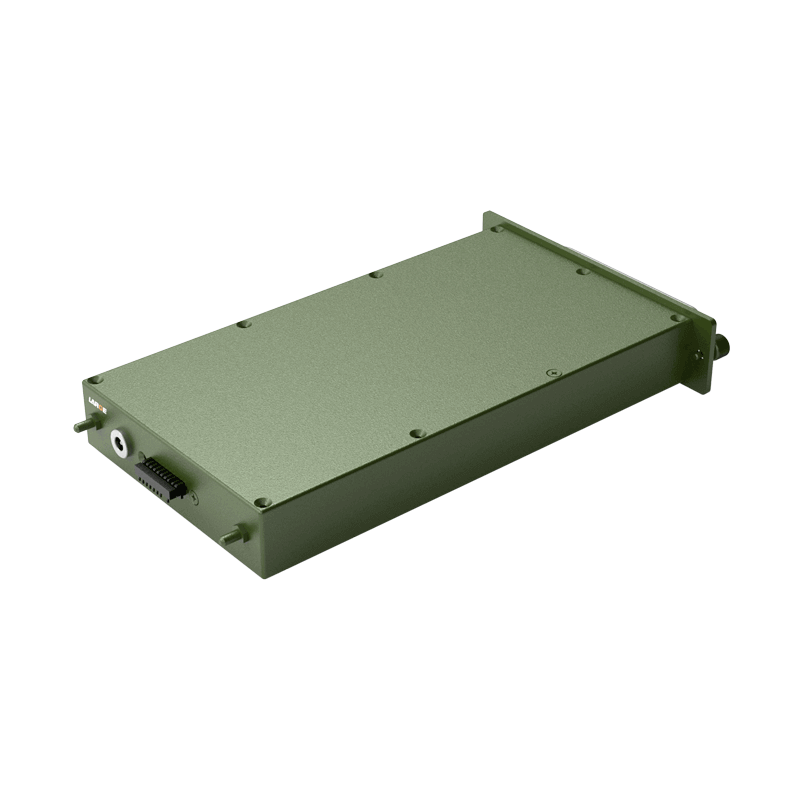

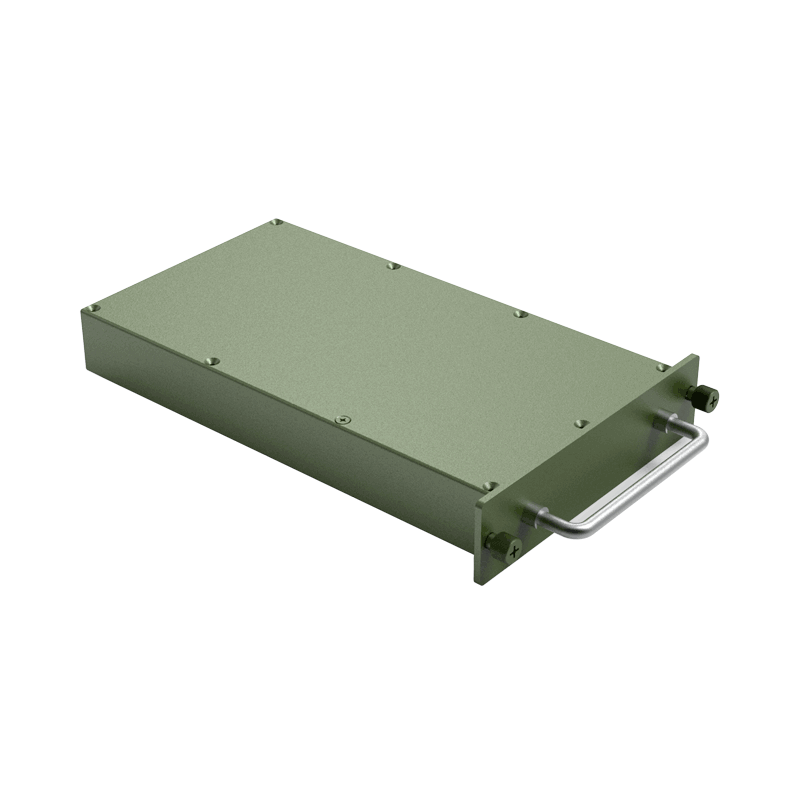

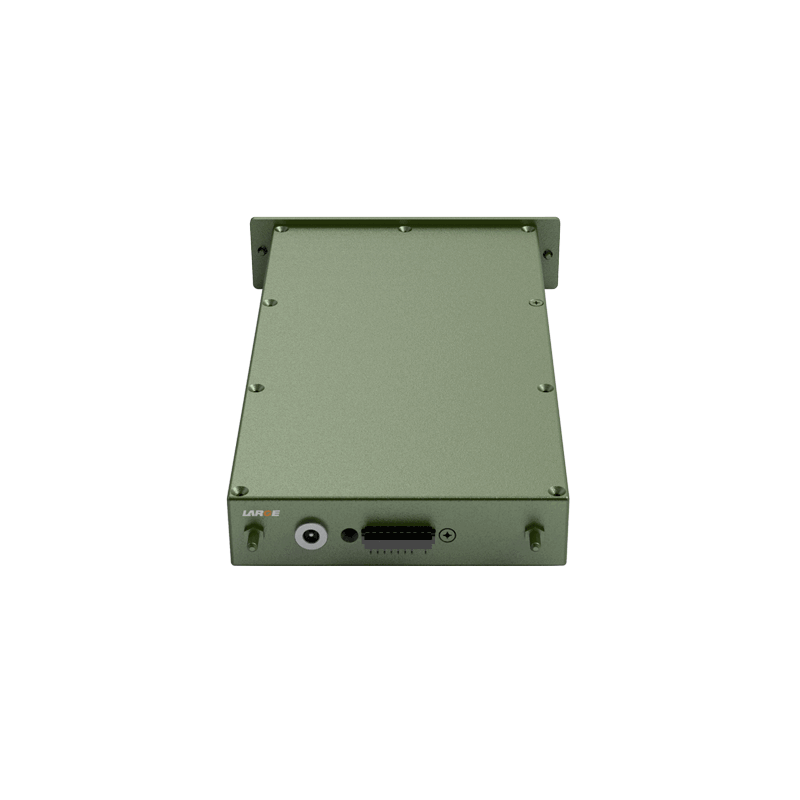

14.4V 9Ah 18650 Lithium Battery for Special Purpose Equipment

Product Detail

Product number: 03EQ016-01

Cell model:18650/3.6V/3000mAh

Battery specification: 18650-4S3P/14.4V/9Ah

Nominal voltage:14.4V

Nominal capacity:9.0Ah

Charging voltage: 16.8V

Charging current: ≤3A

Discharging current: 3A

Instant discharging current: 30A

End-off voltage: 10V

Internal resistance: ≤150mΩ

Battery weight: 1000g include housing

Product dimension: 130*75*40mm(no installation site)

Charging temperature:0~45℃

Discharging temperature: -20~55℃

Storage temperature: -20~50℃

Temperature protection: 60℃±5℃

Battery case: aluminium alloy housing

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection and temperature protection.

Application field: field emergency power supply, all kinds of instrument detector, special device emission, etc.

Product features

1. Data communication management: adopt IC+TI charger management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

2. The battery pack has good security, portable outdoor device, nice low-temperature performance and long cycle life.

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
