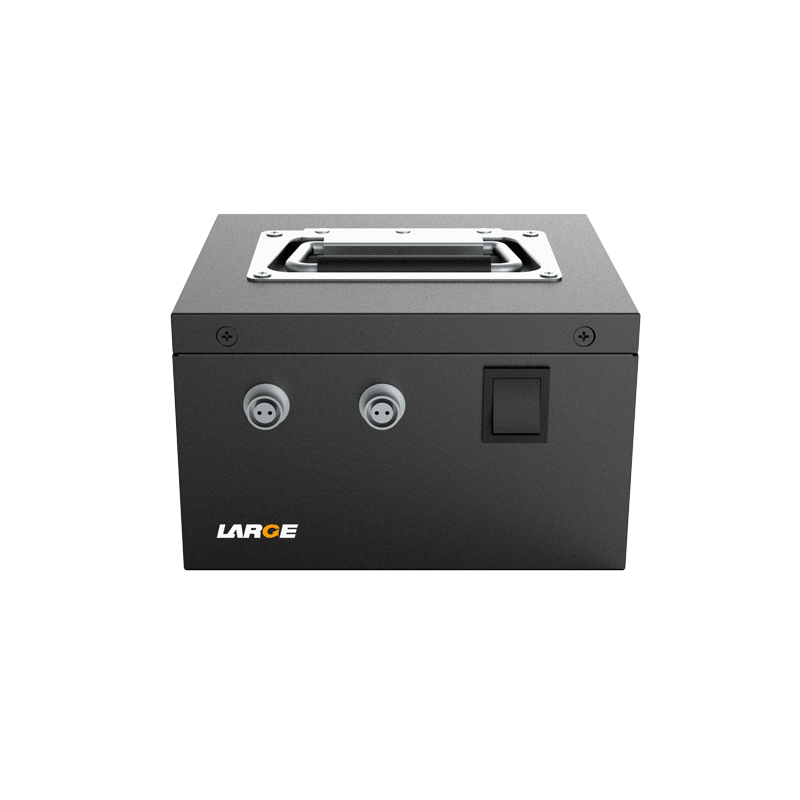

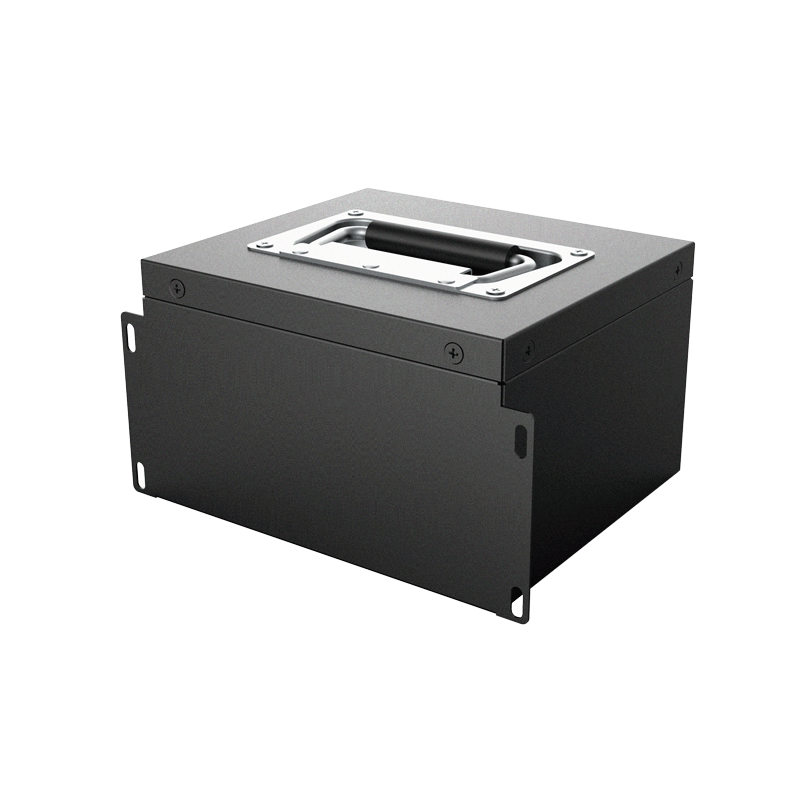

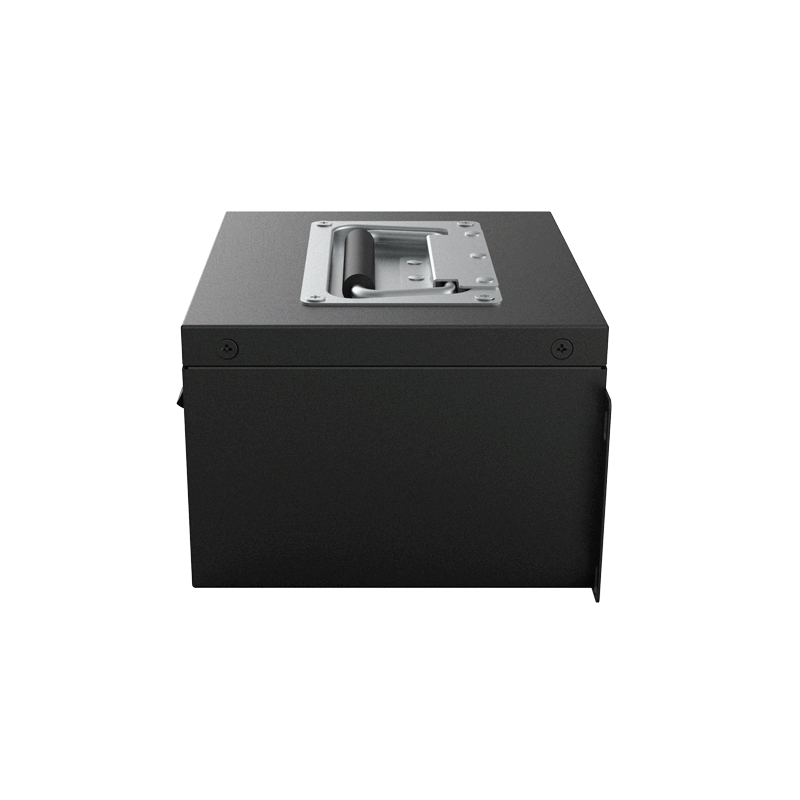

Custom Lithium Ion Battery Pack

18650 14.4V 40Ah Lithium Ion Battery for Library Mobile Handheld Barcode Terminal

  • Model number:32AQ0021-01

  • Nominal voltage:14.4V

  • Nominal capacity:40000mAh

  • Battery cell:18650/3.6V/3.5Ah

  • Dimension:180*160*110mm(Max)

  • Application:wide application range, library mobile machine, industrial machine, detection equipment, robot, etc.

Product Detail

Product number: 32AQ0021-01

Cell model:18650/3.6V/3.5Ah

Battery specification: 18650-4S12P/14.4V/40Ah

Nominal voltage:14.4V

Nominal capacity:40Ah

Charging voltage: 16.8V

Charging current: 10A

Discharging current: 10A

Instant discharging current: 50A 15ms

End-off voltage: 11V

Internal resistance: ≤150mΩ

Battery weight: 4.5kg

Product dimension: 180*160*110mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35℃

Temperature protection: 65℃±5℃

Battery case: cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, power display, low power alarm, etc.

Application field: wide application range, library mobile machine, industrial machine, detection equipment, robot, etc.


Product features

Multi-protection: short circuit protection, overcharge protection, overcurrent protection, temperature protection, power display, low power alarm, etc.

Fast connection: adopt UBS minin connector, which is fast, safe and reliable.

Data communication management: adopt IC+TI charger management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

The battery pack has good security, vehicle standard, stable performance and long cycle life.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

Shockproof: fill in the inside cold rolling metal plate housing by shockproof structure design, which meets the requirements of good security and nice reliability.


*
*
*
