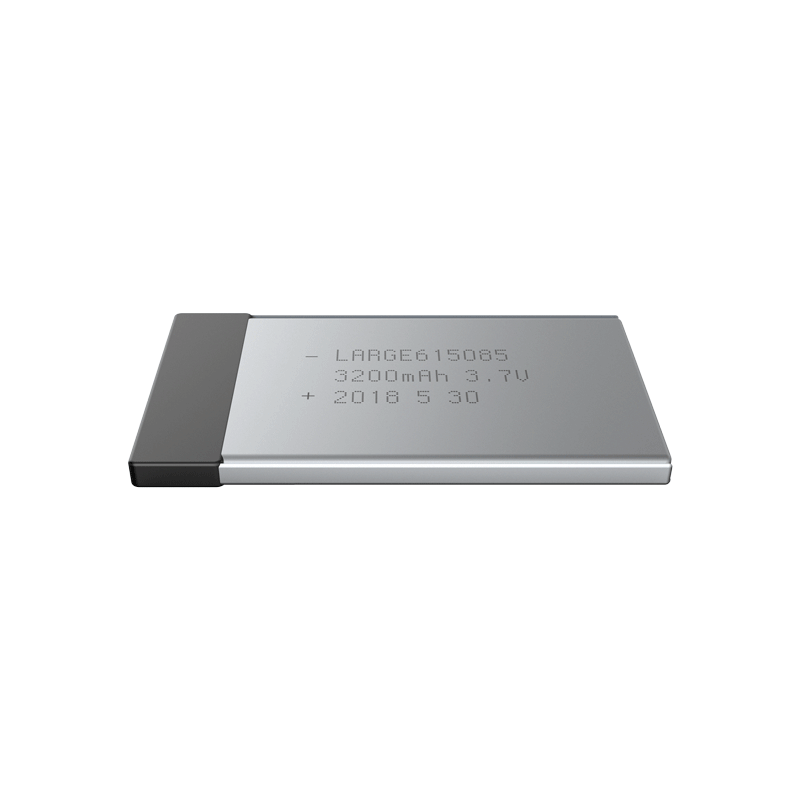

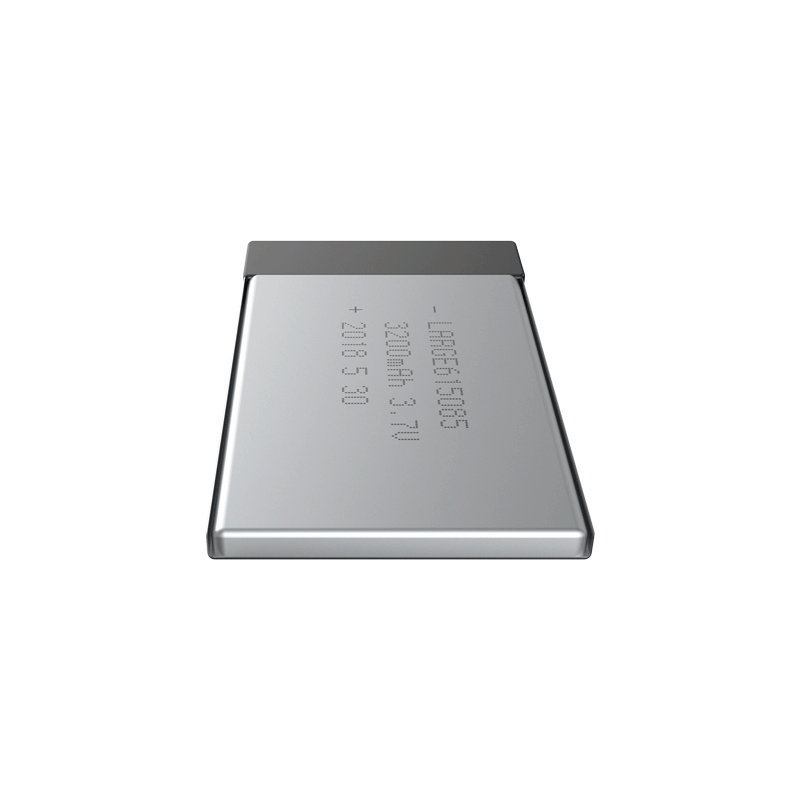

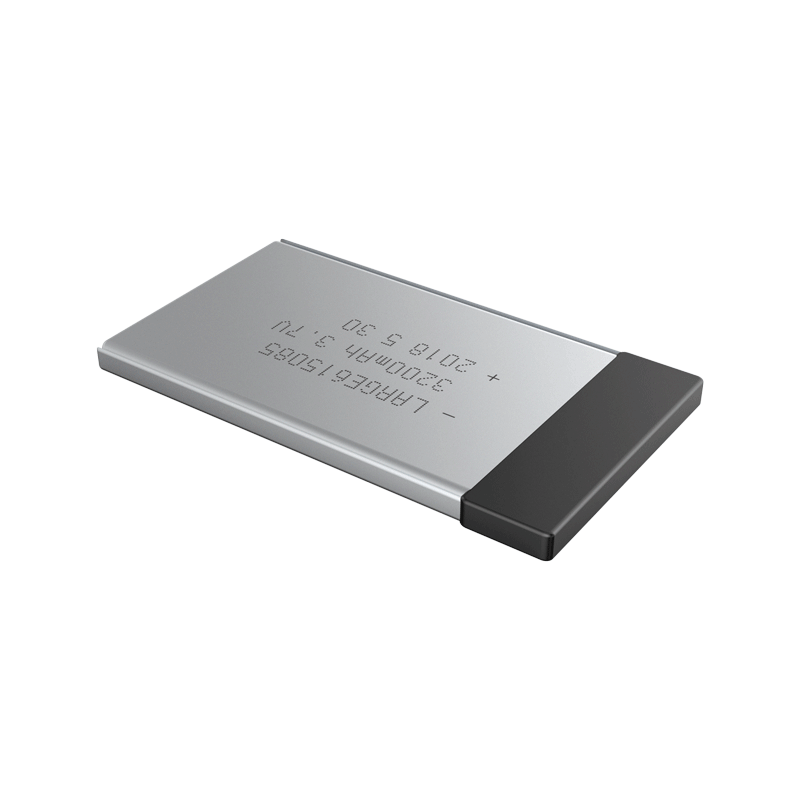

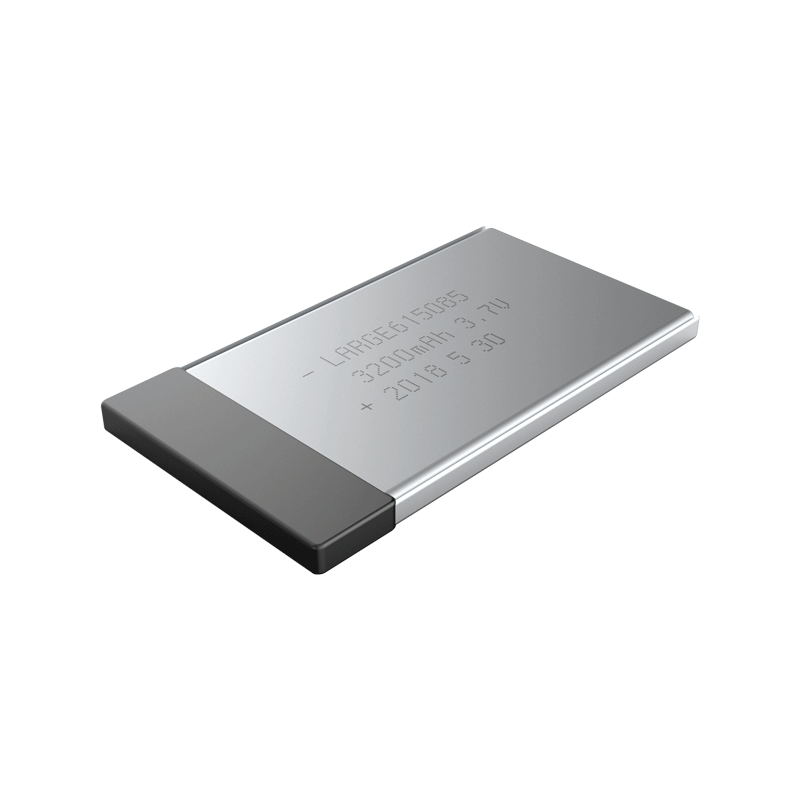

3.7V 3200mAh Lithium Ion Battery for Automobile Vacuum Cleaner

Product Detail

3.7V 3200mAh Lithium Ion Battery for Automobile Vacuum Cleaner


Product number: 02DQ0077-01

Cell model:615085/3.7V/3200mAh

Battery specification: 615085-1S1P/3.7V/3200mAh

Nominal voltage:3.7V

Nominal capacity:3200mAh

Charging voltage: 4.2V

Charging current: ≤1000mA

Discharging current: 1000mA

Instant discharging current: 2.0mA

End-off voltage: 3.0V

Internal resistance: ≤200mΩ

Battery weight: 62g

Product dimension: 88*50.5*6.2mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: high temperature tape

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: Automobile vacuum cleaner, test and control instrument


*
*
*
